This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 92.362 inches by 43.625 inches and an array layout of 4 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Stone
$7,433.45
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 92.362 inches by 43.625 inches and an array layout of 4 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1254.38 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |

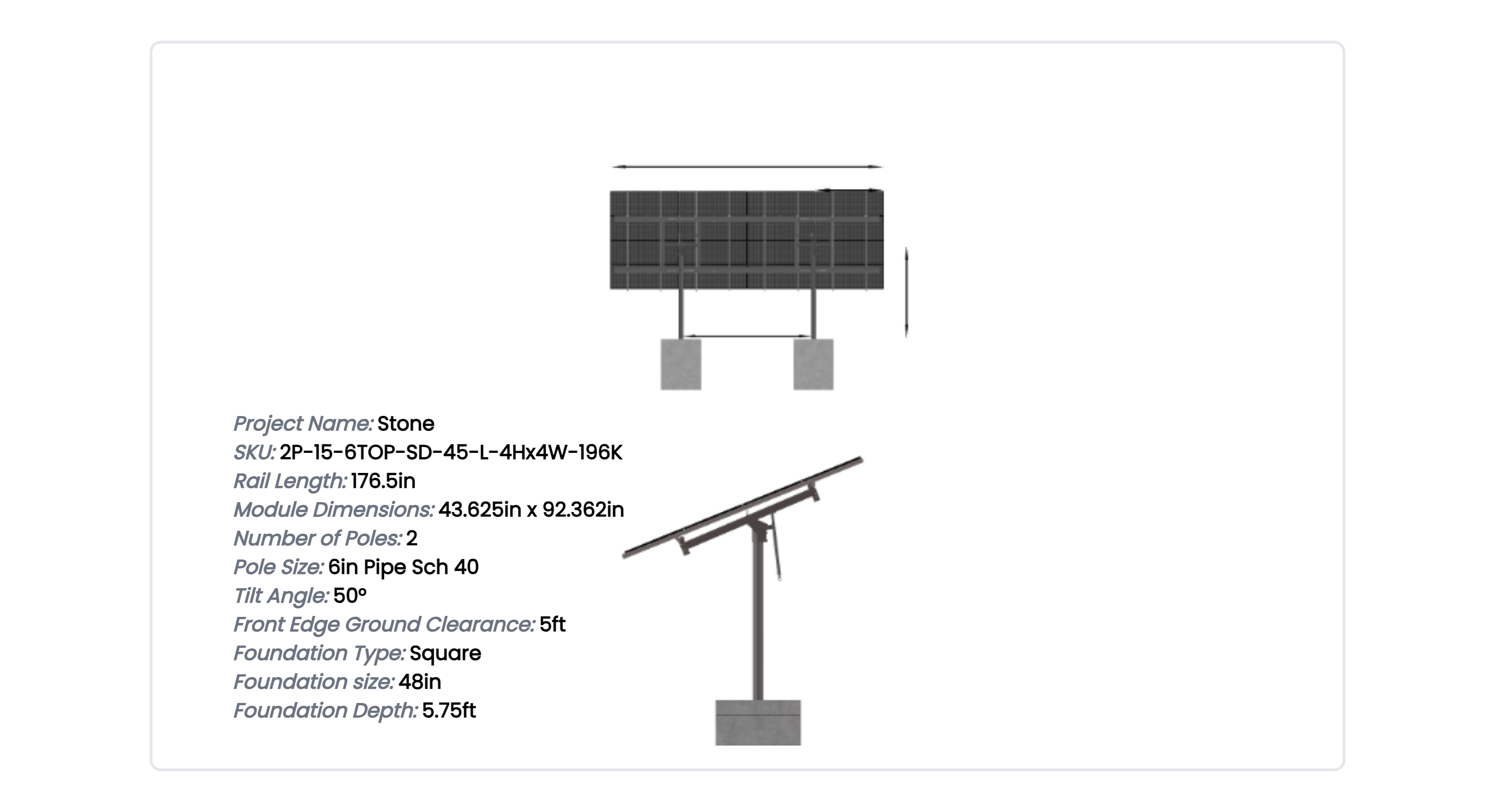

| SKU CODE | 2P-15-6TOP-SD-45-L-4HX4W-196K |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 15.00 |
| POLE HEIGHT | 10.63 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 5.75 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 360.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 2.00 |
| MODULE AREA | 457.73 |
| ARRAY WIDTH | 31.12 |
| ARRAY HEIGHT | 14.71 |
| RAIL LENGTH | 176.50 |
| MODULE LENGTH | 92.36 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 30.00 |
| GROUND TO TOP | 16.20 |
| PROJECTED PANEL HEIGHT | 11.14 |
| PROJECT ID | STONE |
| SITE ADDRESS | STONE, LN, IDAHO, 83221, USA |
| MODULE WIDTH | 43.63 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 4.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 95.00 |
| SNOW LOAD OVERRIDE | 78.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 7079.48 |
| TOTAL WEIGHT | 1254.38 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/abbc4c1d-cb78-44cb-bdff-1392522a17e4.pdf |
|
| ID | 7213.00 |
| 3D Solar link |
