This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 80 inches by 40 inches and an array layout of 5 wide by 5 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

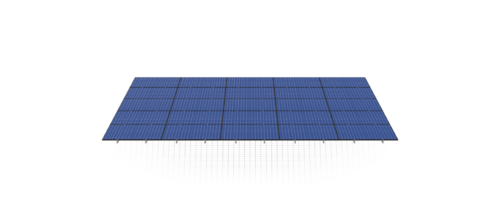

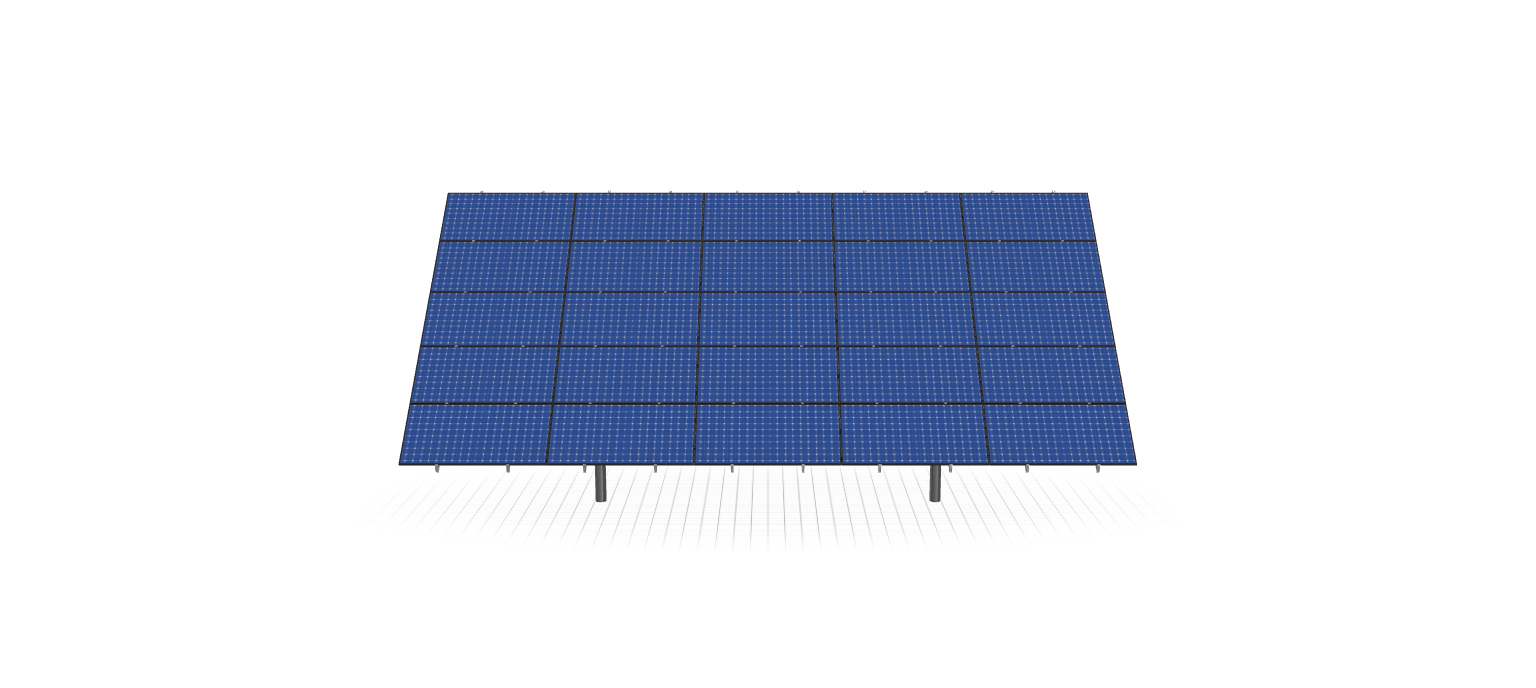

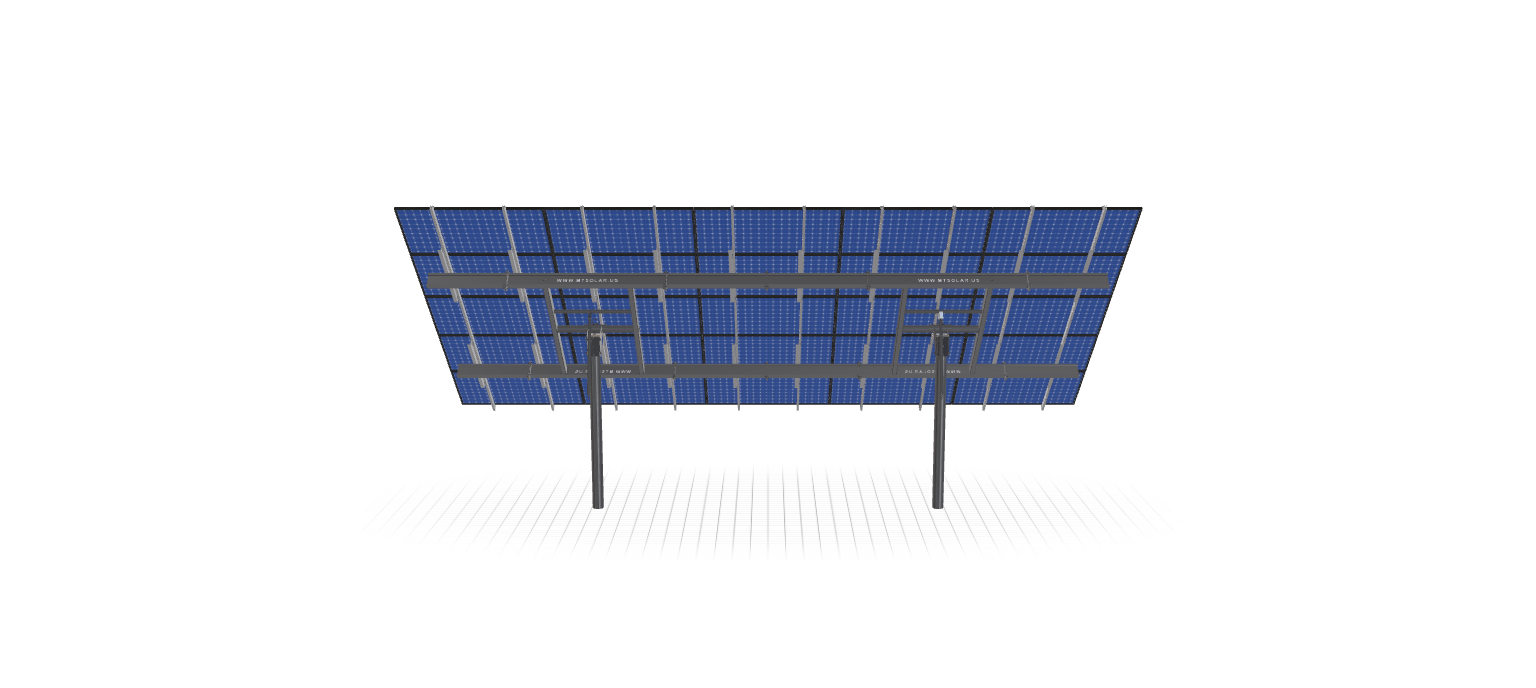

See 3D Model Here
SwedburgRevA
$9,755.73
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 80 inches by 40 inches and an array layout of 5 wide by 5 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1941.42 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-17-8TOP-HD-45-L-5HX5W-A891 |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 8.97 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 8.75 |
| TILT ANGLE | 45.00 |
| CANTILEVER | 384.00 |
| GROUND CLEARANCE | 3.00 |
| NO POLES | 2.00 |
| MODULE AREA | 569.53 |
| ARRAY WIDTH | 33.75 |
| ARRAY HEIGHT | 16.88 |
| RAIL LENGTH | 202.50 |
| MODULE LENGTH | 80.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 32.00 |
| GROUND TO TOP | 14.86 |
| PROJECTED PANEL HEIGHT | 11.79 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | SWEDBURGREVA |
| SITE ADDRESS | 182, SCENIC, DR, KNIFE, RIVER, MN, 55609, USA |
| MODULE WIDTH | 40.00 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 5.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 9755.73 |
| TOTAL WEIGHT | 1941.42 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/69f396f1-a0cd-41a1-b3a8-d5bdcca464b8.pdf |
|
| ID | 513.00 |
| 3D Solar link |
