This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87.2 inches by 41.1 inches and an array layout of 3 wide by 3 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

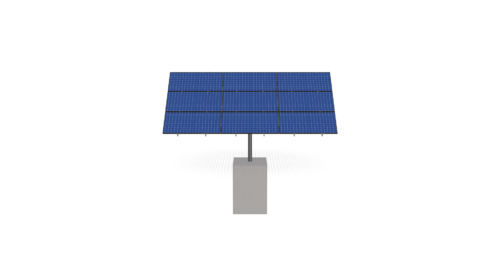

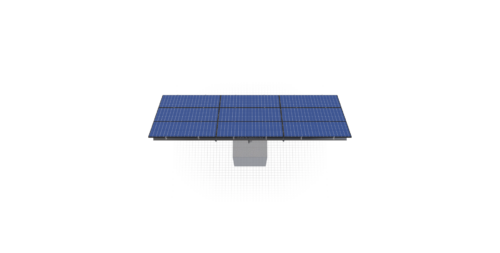

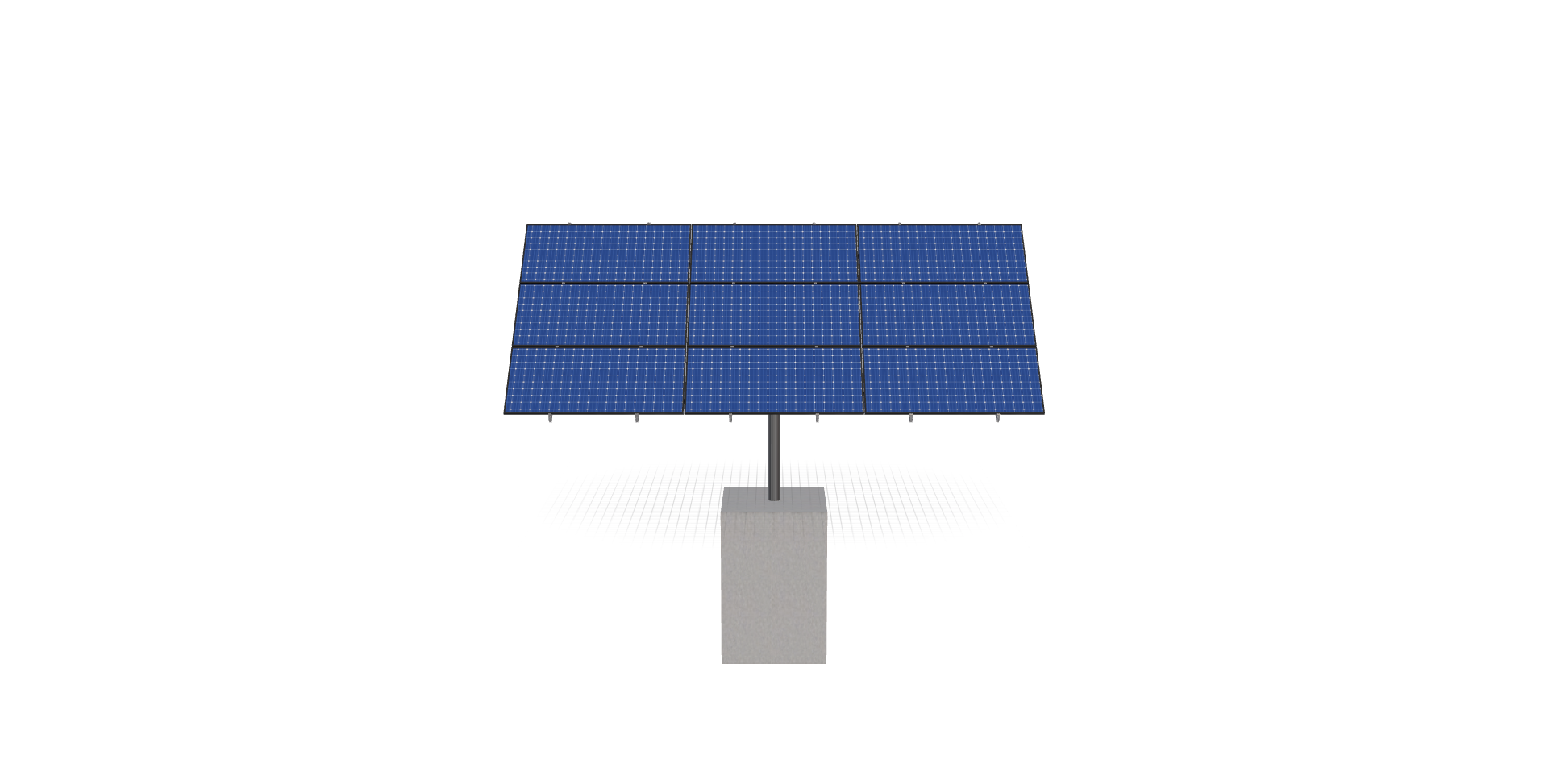

See 3D Model Here
TOP 9 test with Jinkos – Exposure cat C
$5,196.94
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87.2 inches by 41.1 inches and an array layout of 3 wide by 3 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1003.83 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-8TOP-XD-84-L-3HX3W-J53I |
| DUTY SIZE | XD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 7.68 |
| WING SPAN | 84.00 |
| MAX FOUNDATION DEPTH | 6.75 |
| TILT ANGLE | 45.00 |
| CANTILEVER | 258.00 |
| GROUND CLEARANCE | 4.00 |
| NO POLES | 1.00 |
| MODULE AREA | 229.32 |
| ARRAY WIDTH | 22.05 |
| ARRAY HEIGHT | 10.40 |
| RAIL LENGTH | 124.80 |
| MODULE LENGTH | 87.20 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 21.50 |
| GROUND TO TOP | 11.31 |
| PROJECTED PANEL HEIGHT | 7.27 |
| WIND SPEED OVERRIDE | 115.00 |
| SNOW LOAD OVERRIDE | 90.00 |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | TOP, 9, TEST, WITH, JINKOS, -, EXPOSURE, CAT, C |
| SITE ADDRESS | 265, COBB, HILL, RD, OTISFIELD, ME, 04270, USA |
| MODULE WIDTH | 41.10 |
| NUMBER ROWS | 3.00 |
| NUMBER COLUMNS | 3.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 5196.94 |
| TOTAL WEIGHT | 1003.83 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/ba71ef4c-1547-40a2-8f1d-d2be7bcb897d.pdf |
|
| ID | 583.00 |
| 3D Solar link |
