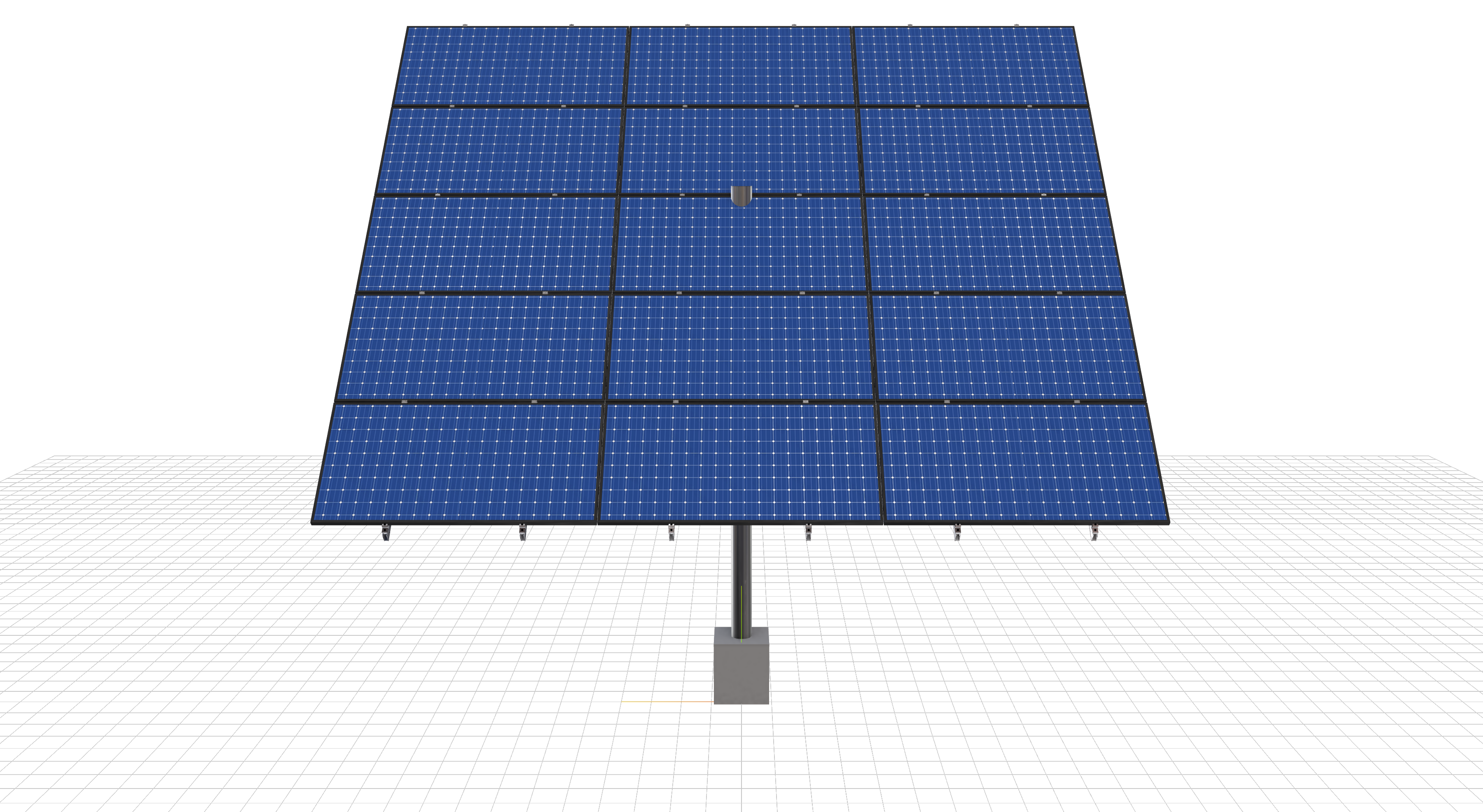

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 76.4 inches by 41.3 inches and an array layout of 3 wide by 5 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
tubbssolar-RevA
$4,622.99
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 76.4 inches by 41.3 inches and an array layout of 3 wide by 5 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
Additional information
| Weight | 1147 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
https://solver.skyciv.com/temp/mergedpdf_kc2nm936nxw8g0kg.php |
|
| SKU CODE | 1P-0-8TOP-SD-57-L-5Hx3W |
| DUTY SIZE | SD |
| POLE SIZE | 8in, Pipe, Sch, 40 |
| PRODUCT TYPE | Beam |
| NUMBER OF_POLES | 1 |
| POLE SPACING | 15 |
| POLE HEIGHT | 13.94 |
| WING SPAN | 57 |
| FOUNDATION DEPTHS | [object, Object] |
| TILT ANGLE | 43 |
| CANTILEVER | 204 |
| GROUND CLEARANCE | 8 |
| NO POLES | 1 |
| MODULE AREA | 337.01250000000005 |
| ARRAY WIDTH | 19.35 |
| ARRAY HEIGHT | 17.416666666666668 |
| RAIL LENGTH | 209 |
| MODULE LENGTH | 76.4 |
| PASSED OVERHANG_CHECK | true |
| MODULE WIDTH_GAP | 0.5 |
| MODULE LENGTH_GAP | 1 |
| TOTAL FRAME_LENGTH | 17 |
| GROUND TO_TOP | 19.807096608582007 |
| PROJECTED PANEL_HEIGHT | 11.736055112742164 |
| WIND SPEED_OVERRIDE | null |
| SNOW LOAD_OVERRIDE | null |
| DIRECT SNOW_LOAD | false |
| PROJECT ID | tubbssolar-RevA |
| SITE ADDRESS | 15215, A, P, Tubbs, Rd, E, Buckley, WA, 98321, USA |
| MODULE WIDTH | 41.3 |
| NUMBER ROWS | 5 |
| NUMBER COLUMNS | 3 |
| MAIN PIPE_SECTION | 2_12GA |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| SOIL TYPE | sand |
| FOUNDATION TYPE | Square |
| FOUNDATION SIZE | 48 |
| CHECK RAILS | false |
| TOTAL PRICE | 4622.99 |
| TOTAL WEIGHT | 907.3199999999999 |
| TOTAL PALLETS | 1 |
| ID | 171 |
