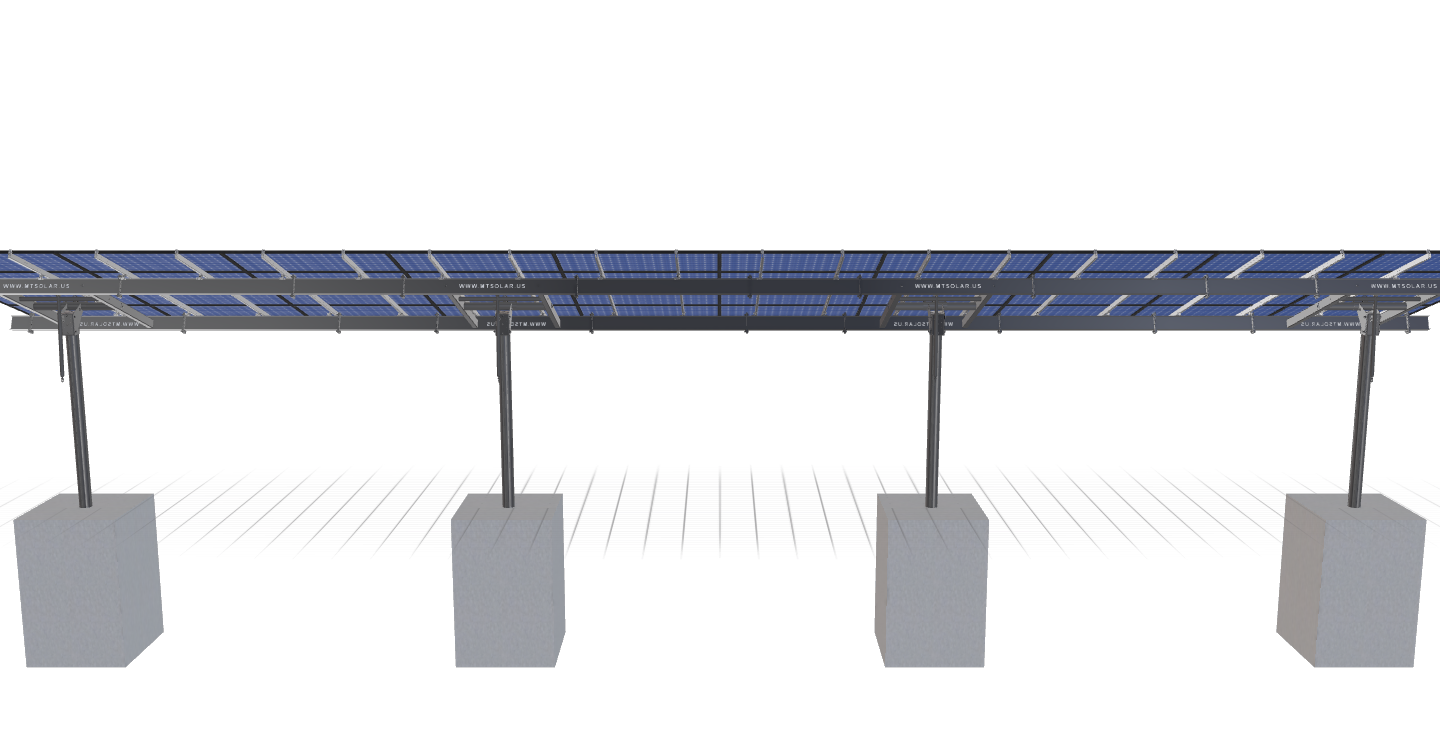

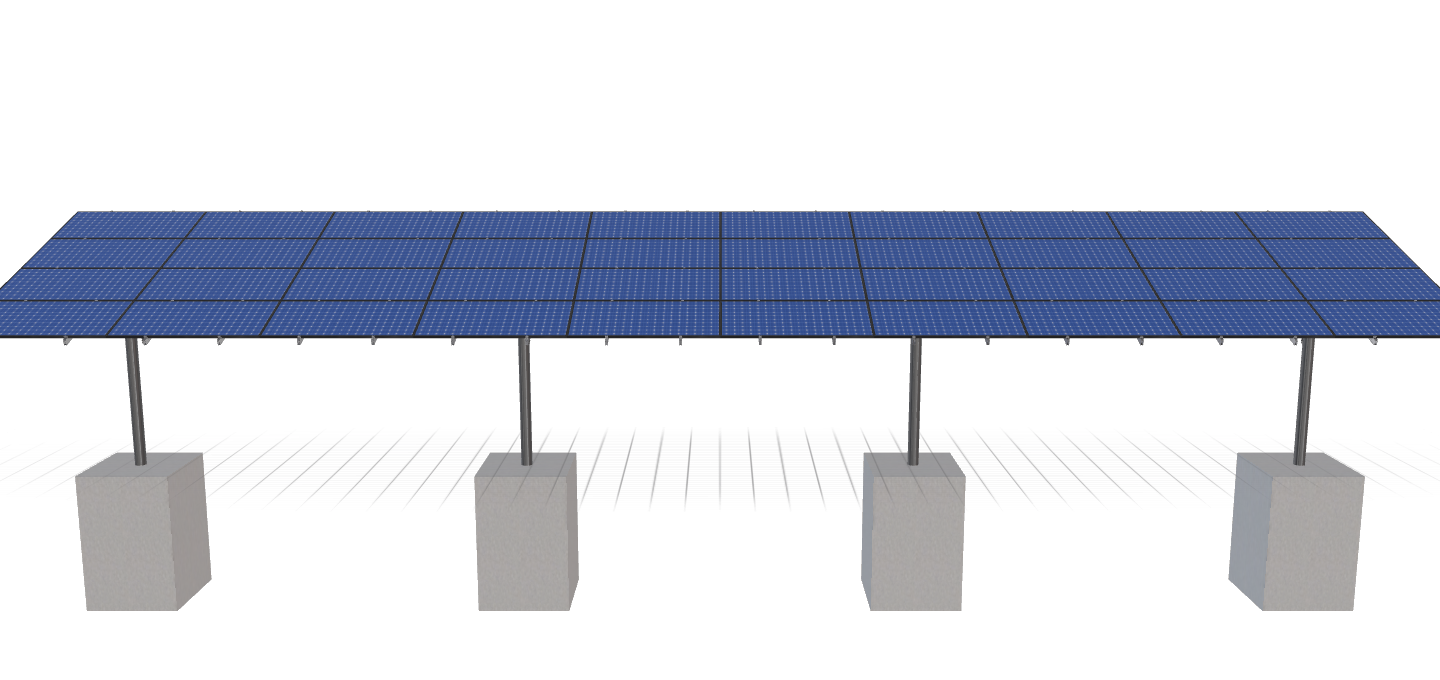

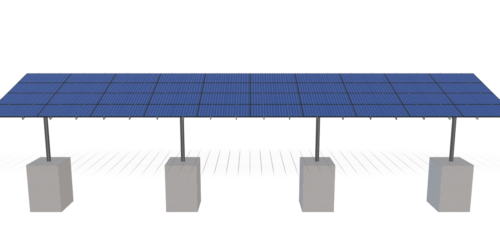

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.44 inches by 40.87 inches and an array layout of 10 wide by 4 high.
This mount fits on 4 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Varnersolarmount-RevA
$17,908.89
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.44 inches by 40.87 inches and an array layout of 10 wide by 4 high.
This mount fits on 4 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 3304.42 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 4P-19.75-6TOP-HD-12-L-4HX10W-5A5D |
| DUTY SIZE | HD |
| POLE SIZE | 6IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 4.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 9.36 |
| WING SPAN | 12.00 |
| MAX FOUNDATION DEPTH | 7.00 |
| TILT ANGLE | 20.00 |
| CANTILEVER | 825.00 |
| GROUND CLEARANCE | 7.00 |
| NO POLES | 4.00 |
| MODULE AREA | 958.86 |
| ARRAY WIDTH | 69.53 |
| ARRAY HEIGHT | 13.79 |
| RAIL LENGTH | 165.48 |
| MODULE LENGTH | 82.44 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 68.75 |
| GROUND TO TOP | 11.69 |
| PROJECTED PANEL HEIGHT | 4.66 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | VARNERSOLARMOUNT-REVA |
| SITE ADDRESS | 13621, SAWPIT, RD, JACKSONVILLE, FL, 32226, USA |
| MODULE WIDTH | 40.87 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 10.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | D |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 17908.89 |
| TOTAL WEIGHT | 3304.42 |
| TOTAL PALLETS | 4.00 |
https://skycivquotes.s3.amazonaws.com/f56cae56-bda2-4331-8e70-fdf41203afa4.pdf |
|
| ID | 1107.00 |
| 3D Solar link |
