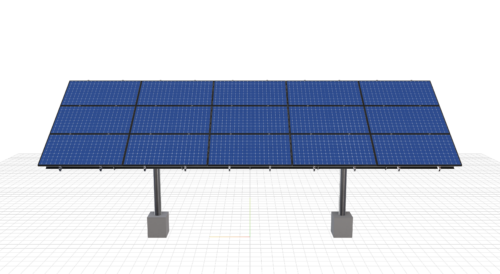

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 71.7 inches by 38.4 inches and an array layout of 5 wide by 3 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
ViaPhone_RevA
$8,251.83
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 71.7 inches by 38.4 inches and an array layout of 5 wide by 3 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
Additional information
| Weight | 1473 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
https://solver.skyciv.com/temp/mergedpdf_nl2zz6a58pw4wcow.php |
|
| SKU CODE | 2P-15-8TOP-HD-45-L-3Hx5W |
| DUTY SIZE | HD |
| POLE SIZE | 8in, Pipe, Sch, 40 |
| PRODUCT TYPE | Beam |
| NUMBER OF_POLES | 2 |
| POLE SPACING | 15 |
| POLE HEIGHT | 7.79 |
| WING SPAN | 45 |
| FOUNDATION DEPTHS | [object, Object] |
| TILT ANGLE | 35 |
| CANTILEVER | 360 |
| GROUND CLEARANCE | 5 |
| NO POLES | 2 |
| MODULE AREA | 294.5864583333333 |
| ARRAY WIDTH | 30.291666666666668 |
| ARRAY HEIGHT | 9.725 |
| RAIL LENGTH | 116.69999999999999 |
| MODULE LENGTH | 71.7 |
| PASSED OVERHANG_CHECK | true |
| MODULE WIDTH_GAP | 0.5 |
| MODULE LENGTH_GAP | 1 |
| TOTAL FRAME_LENGTH | 30 |
| GROUND TO_TOP | 10.542182316241982 |
| PROJECTED PANEL_HEIGHT | 5.506333788970043 |
| WIND SPEED_OVERRIDE | 165 |
| SNOW LOAD_OVERRIDE | null |
| DIRECT SNOW_LOAD | false |
| PROJECT ID | ViaPhone_RevA |
| SITE ADDRESS | 1600, W, Coach, Rd, Boulder, CO, 80302, USA |
| MODULE WIDTH | 38.4 |
| NUMBER ROWS | 3 |
| NUMBER COLUMNS | 5 |
| MAIN PIPE_SECTION | 2_12GA |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| SOIL TYPE | sand |
| FOUNDATION TYPE | Square |
| FOUNDATION SIZE | 48 |
| CHECK RAILS | false |
| TOTAL PRICE | 8251.83 |
| TOTAL WEIGHT | 1516.7 |
| TOTAL PALLETS | 2 |
| ID | 113 |
