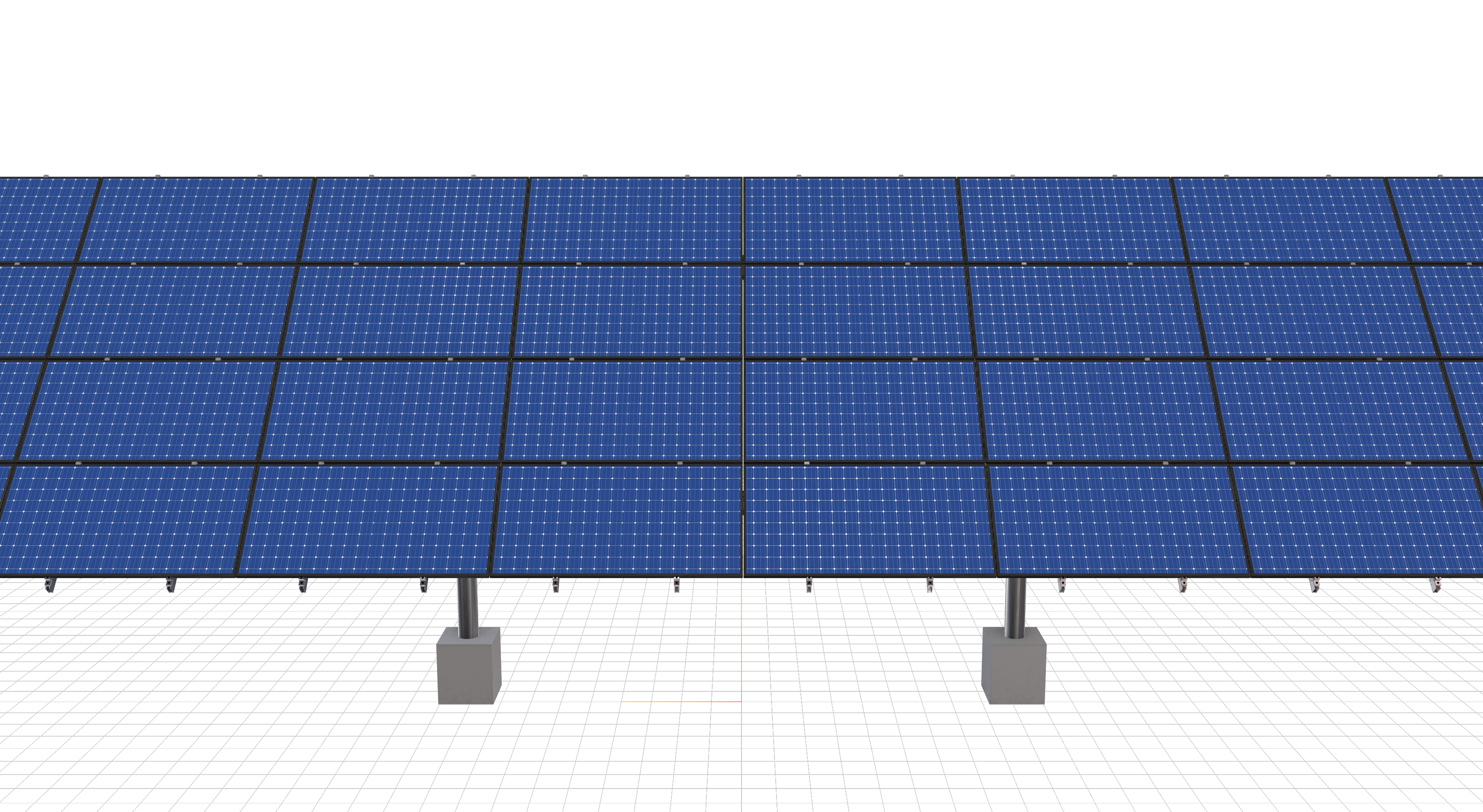

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 71.7 inches by 38.4 inches and an array layout of 8 wide by 4 high.
This mount fits on 3 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 71.7 inches by 38.4 inches and an array layout of 8 wide by 4 high.
This mount fits on 3 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

Additional information

PDF

https://solver.skyciv.com/temp/mergedpdf_5ujrwpadmds80cc0.php

SKU CODE

3P-17-6TOP-SD-45-L-4Hx8W

DUTY SIZE

SD

POLE SIZE

6in, Pipe, Sch, 80

PRODUCT TYPE

Beam

NUMBER OF_POLES

3

POLE SPACING

15

POLE HEIGHT

9.66

WING SPAN

45

FOUNDATION DEPTHS

[object, Object]

TILT ANGLE

46

CANTILEVER

588

GROUND CLEARANCE

5

NO POLES

3

MODULE AREA

628.4511111111111

ARRAY WIDTH

48.46666666666667

ARRAY HEIGHT

12.966666666666667

RAIL LENGTH

155.6

MODULE LENGTH

71.7

PASSED OVERHANG_CHECK

true

MODULE WIDTH_GAP

0.5

MODULE LENGTH_GAP

1

TOTAL FRAME_LENGTH

49

GROUND TO_TOP

14.267494427696287

PROJECTED PANEL_HEIGHT

9.207549444334731

WIND SPEED_OVERRIDE

165

SNOW LOAD_OVERRIDE

50

DIRECT SNOW_LOAD

false

PROJECT ID

ViaPhone_RevD

SITE ADDRESS

1600, W, Coach, Rd, Boulder, CO, 80302, USA

MODULE WIDTH

38.4

NUMBER ROWS

4

NUMBER COLUMNS

8

MAIN PIPE_SECTION

2_12GA

RISK CATEGORY

I

EXPOSURE CATEGORY

B

SOIL TYPE

sand

FOUNDATION TYPE

Square

FOUNDATION SIZE

48

CHECK RAILS

false

TOTAL PRICE

11765.460000000001

TOTAL WEIGHT

2073.76

TOTAL PALLETS

3

ID

120
