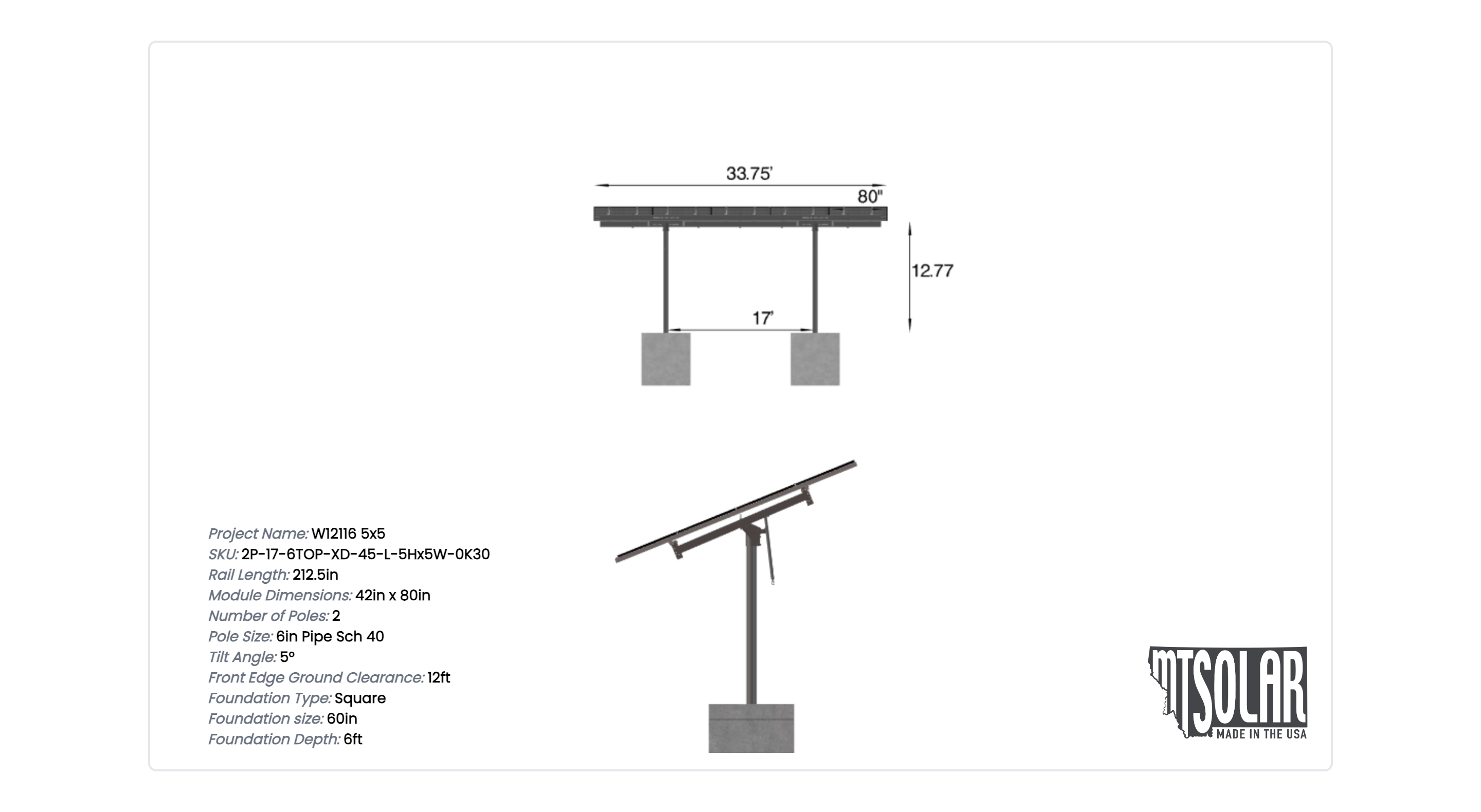

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 80 inches by 42 inches and an array layout of 5 wide by 5 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
W12116 5×5
$10,647.87
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 80 inches by 42 inches and an array layout of 5 wide by 5 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2121.8999999999996 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-17-6TOP-XD-45-L-5HX5W-0K30 |
| DUTY SIZE | XD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 12.77 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 6.00 |
| TILT ANGLE | 5.00 |
| CANTILEVER | 384.00 |
| GROUND CLEARANCE | 12.00 |
| NO POLES | 2.00 |
| MODULE AREA | 597.66 |
| ARRAY WIDTH | 33.75 |
| ARRAY HEIGHT | 17.71 |
| RAIL LENGTH | 212.50 |
| MODULE LENGTH | 80.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 32.00 |
| GROUND TO TOP | 13.53 |
| PROJECTED PANEL HEIGHT | 1.53 |
| WIND SPEED OVERRIDE | 170.00 |
| SNOW LOAD OVERRIDE | 0.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| PROJECT ID | W12116, 5X5 |
| SITE ADDRESS | 10250, NW, 60TH, PL, PARKLAND, FL, 33076, USA |
| MODULE WIDTH | 42.00 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 5.00 |
| RISK CATEGORY | II |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 60.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 10647.87 |
| TOTAL WEIGHT | 2121.90 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/9922b487-2bac-4796-adf2-be0a9329d5c9.pdf |
|
| ID | 3558.00 |
| 3D Solar link |
