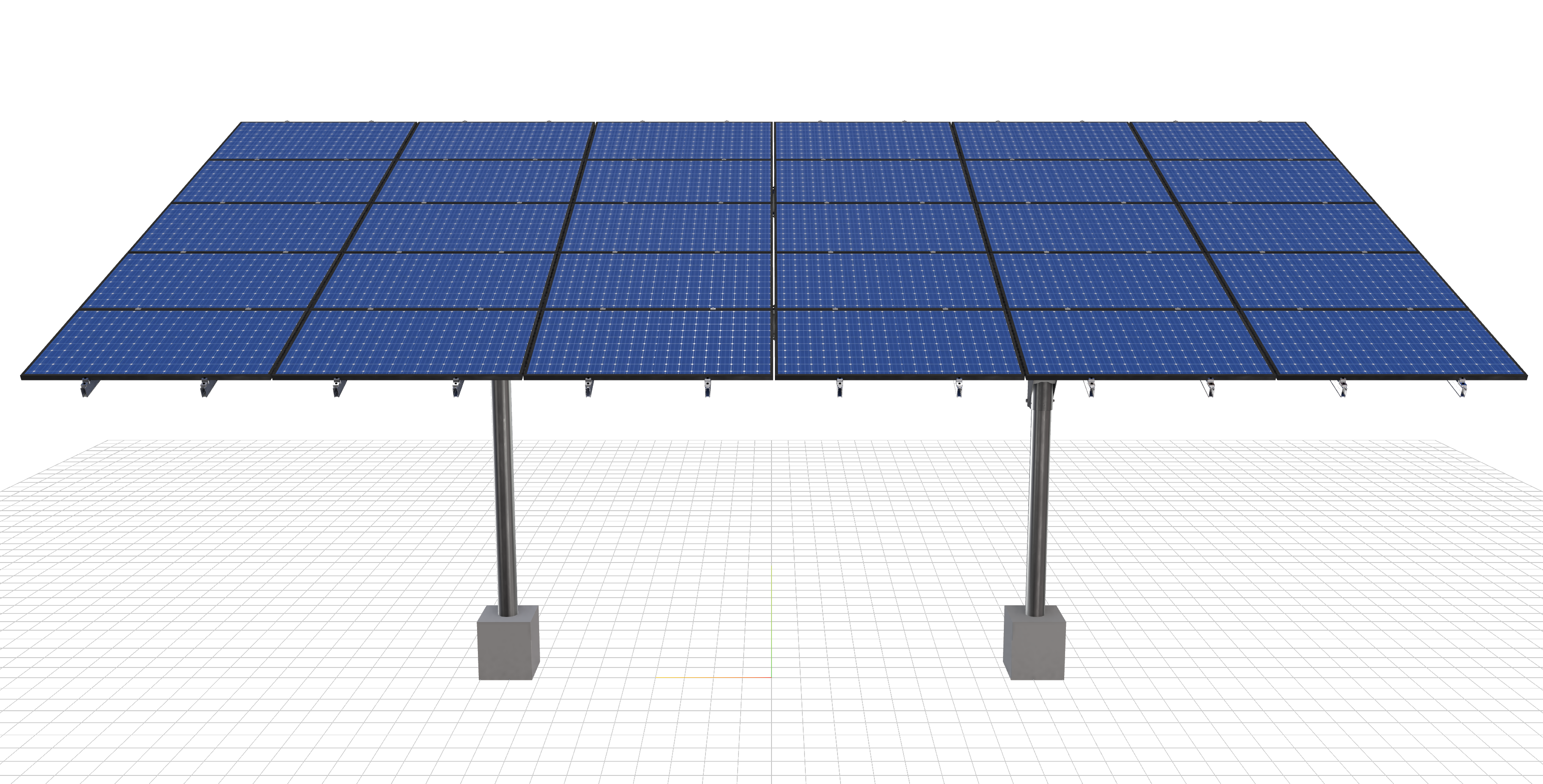

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 66 inches by 39.5 inches and an array layout of 6 wide by 5 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
WaltAugustinowicz%7CCarport%7CRevA
$11,288.97
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 66 inches by 39.5 inches and an array layout of 6 wide by 5 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
Additional information
| Weight | 1932 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
https://solver.skyciv.com/temp/mergedpdf_qatr2sppf9wsgk4s.php |
|
| SKU CODE | 2P-17-8TOP-XD-45-L-5Hx6W |
| DUTY SIZE | XD |
| POLE SIZE | 8in, Pipe, Sch, 40 |
| PRODUCT TYPE | Beam |
| NUMBER OF_POLES | 2 |
| POLE SPACING | 15 |
| POLE HEIGHT | 10.85 |
| WING SPAN | 45 |
| FOUNDATION DEPTHS | [object, Object] |
| TILT ANGLE | 20 |
| CANTILEVER | 384 |
| GROUND CLEARANCE | 8 |
| NO POLES | 2 |
| MODULE AREA | 558.3333333333334 |
| ARRAY WIDTH | 33.5 |
| ARRAY HEIGHT | 16.666666666666668 |
| RAIL LENGTH | 200 |
| MODULE LENGTH | 66 |
| PASSED OVERHANG_CHECK | true |
| MODULE WIDTH_GAP | 0.5 |
| MODULE LENGTH_GAP | 1 |
| TOTAL FRAME_LENGTH | 32 |
| GROUND TO_TOP | 13.664708623831388 |
| PROJECTED PANEL_HEIGHT | 5.629081525568296 |
| WIND SPEED_OVERRIDE | null |
| SNOW LOAD_OVERRIDE | null |
| DIRECT SNOW_LOAD | false |
| PROJECT ID | WaltAugustinowicz, Carport, RevA |
| SITE ADDRESS | 770, Buckskin, Ct, Englewood, FL, 34223, USA |
| MODULE WIDTH | 39.5 |
| NUMBER ROWS | 5 |
| NUMBER COLUMNS | 6 |
| MAIN PIPE_SECTION | 2_12GA |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| SOIL TYPE | sand |
| FOUNDATION TYPE | Square |
| FOUNDATION SIZE | 48 |
| CHECK RAILS | false |
| TOTAL PRICE | 11288.97 |
| TOTAL WEIGHT | 2253.3399999999997 |
| TOTAL PALLETS | 2 |
| ID | 103 |
