This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 71.2 inches by 39.3 inches and an array layout of 2 wide by 4 high.
This mount fits on 1 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

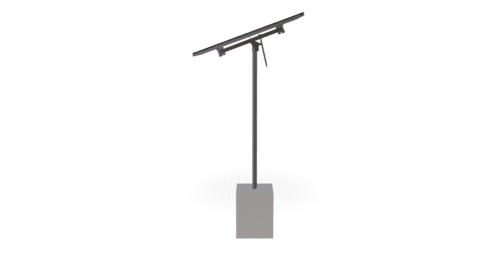

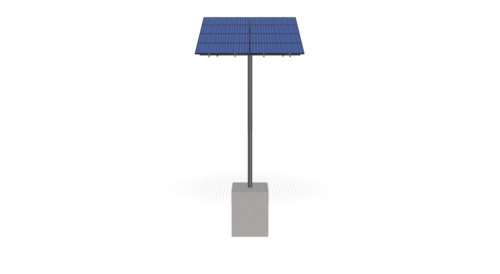

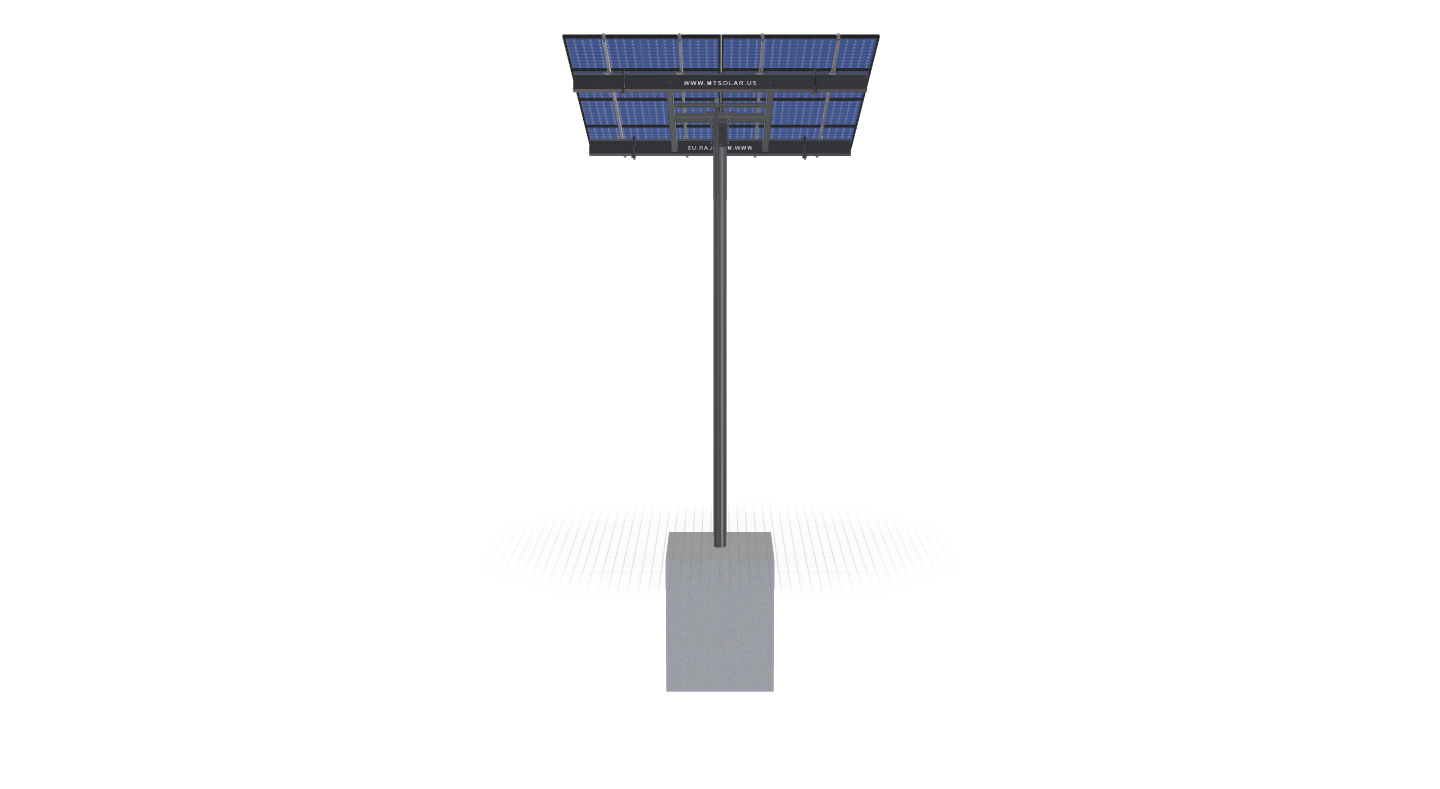

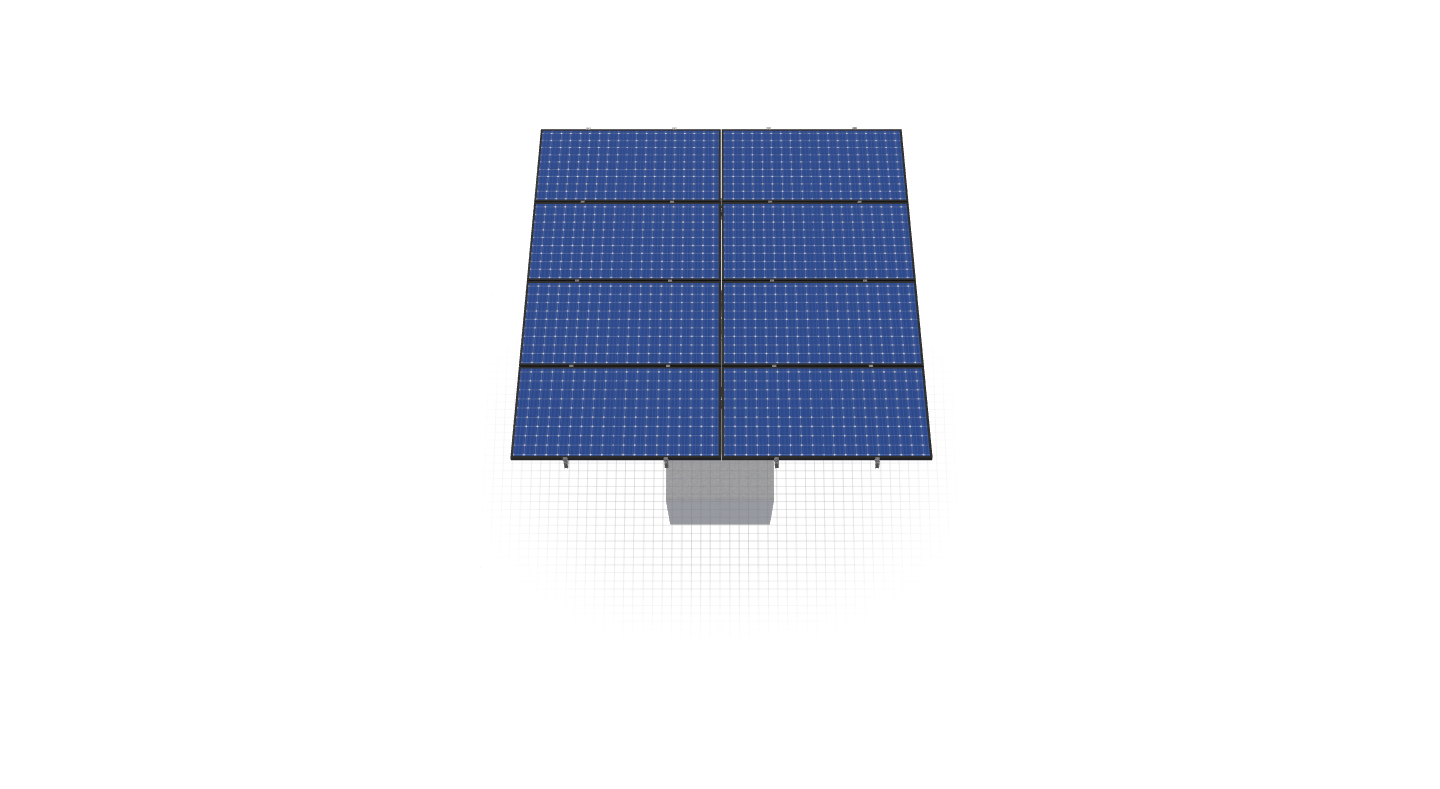

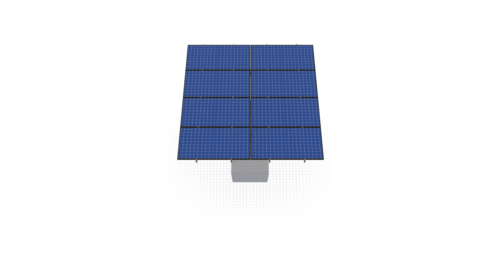

See 3D Model Here
WanokaCampground-RevA
$3,917.79
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 71.2 inches by 39.3 inches and an array layout of 2 wide by 4 high.
This mount fits on 1 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 702.19 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-10TOP-HD-24-L-4HX2W-93LA |
| DUTY SIZE | HD |
| POLE SIZE | 10IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 18.27 |
| WING SPAN | 24.00 |
| MAX FOUNDATION DEPTH | 5.75 |
| TILT ANGLE | 20.00 |
| CANTILEVER | 138.00 |
| GROUND CLEARANCE | 16.00 |
| NO POLES | 1.00 |
| MODULE AREA | 159.64 |
| ARRAY WIDTH | 12.03 |
| ARRAY HEIGHT | 13.27 |
| RAIL LENGTH | 159.20 |
| MODULE LENGTH | 71.20 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 11.50 |
| GROUND TO TOP | 20.51 |
| PROJECTED PANEL HEIGHT | 4.48 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | WANOKACAMPGROUND-REVA |
| SITE ADDRESS | GPV8+7J, IRON, RIVER, WI, USA |
| MODULE WIDTH | 39.30 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 2.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | 10, 40 |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 3917.79 |
| TOTAL WEIGHT | 702.19 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/e1f781b8-2a95-4843-94dd-8e2f2ecc4eea.pdf |
|
| ID | 509.00 |
