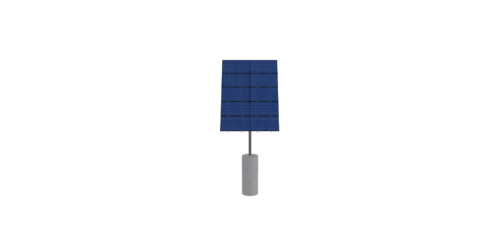

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 71 inches by 41 inches and an array layout of 2 wide by 5 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Wayman-v2cu
$4,340.12
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 71 inches by 41 inches and an array layout of 2 wide by 5 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 800.63 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-6TOP-HD-24-L-5HX2W-J6EI |
| DUTY SIZE | HD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 13.08 |
| WING SPAN | 24.00 |
| MAX FOUNDATION DEPTH | 8.50 |
| TILT ANGLE | 55.00 |
| CANTILEVER | 138.00 |
| GROUND CLEARANCE | 6.00 |
| NO POLES | 1.00 |
| MODULE AREA | 207.50 |
| ARRAY WIDTH | 12.00 |
| ARRAY HEIGHT | 17.29 |
| RAIL LENGTH | 207.50 |
| MODULE LENGTH | 71.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 11.50 |
| GROUND TO TOP | 20.08 |
| PROJECTED PANEL HEIGHT | 13.99 |
| WIND SPEED OVERRIDE | 100.00 |
| SNOW LOAD OVERRIDE | 321.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | JEFF, PERAMBO |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 970-596-4700 |
| PROJECT ID | WAYMAN-V2CU |
| SITE ADDRESS | XCMQ+2J2, ANIMAS, FORKS, CO, 81433, USA |
| MODULE WIDTH | 41.00 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 2.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 36, ROUND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 4133.45 |
| TOTAL WEIGHT | 800.63 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/fe49e818-127a-451e-8fc0-ed17b6772f96.pdf |
|
| ID | 7827.00 |
| 3D Solar link |
