WhodathunkitRoad-RevA

$5,875.56

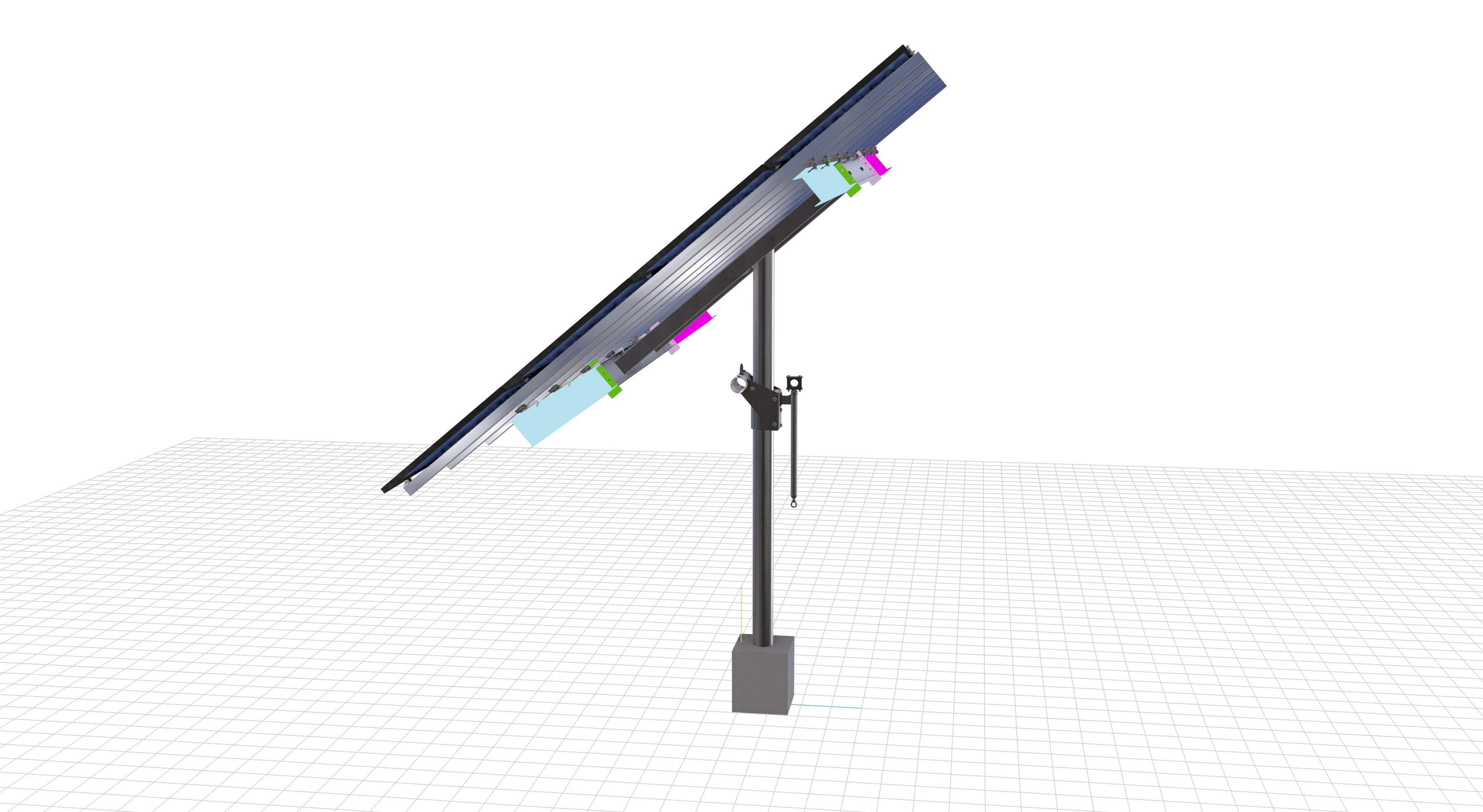

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 65 inches by 41.3 inches and an array layout of 4 wide by 4 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 65 inches by 41.3 inches and an array layout of 4 wide by 4 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

Additional information

Weight 1455 lbs
Dimensions 90 × 24 × 24 in
PDF

https://solver.skyciv.com/temp/mergedpdf_2z181jc3r2ck8wgw.php

SKU CODE

1P-0-8TOP-XD-84-L-4Hx4W

DUTY SIZE

XD

POLE SIZE

8in, Pipe, Sch, 40

PRODUCT TYPE

Beam

NUMBER OF_POLES

1

POLE SPACING

15

POLE HEIGHT

12.48

WING SPAN

84

FOUNDATION DEPTHS

[object, Object]

TILT ANGLE

40

CANTILEVER

258

GROUND CLEARANCE

8

NO POLES

1

MODULE AREA

306.5333333333333

ARRAY WIDTH

22

ARRAY HEIGHT

13.933333333333332

RAIL LENGTH

167.2

MODULE LENGTH

65

PASSED OVERHANG_CHECK

true

MODULE WIDTH_GAP

0.5

MODULE LENGTH_GAP

1

TOTAL FRAME_LENGTH

21.5

GROUND TO_TOP

16.90260839415857

PROJECTED PANEL_HEIGHT

8.849042760018024

WIND SPEED_OVERRIDE

null

SNOW LOAD_OVERRIDE

null

DIRECT SNOW_LOAD

false

PROJECT ID

WhodathunkitRoad-RevA

SITE ADDRESS

Sandpoint, ID, 83864, USA

MODULE WIDTH

41.3

NUMBER ROWS

4

NUMBER COLUMNS

4

MAIN PIPE_SECTION

2_12GA

RISK CATEGORY

I

EXPOSURE CATEGORY

B

SOIL TYPE

sand

FOUNDATION TYPE

Square

FOUNDATION SIZE

48

CHECK RAILS

false

TOTAL PRICE

5875.5599999999995

TOTAL WEIGHT

1091.33

TOTAL PALLETS

1

ID

130
