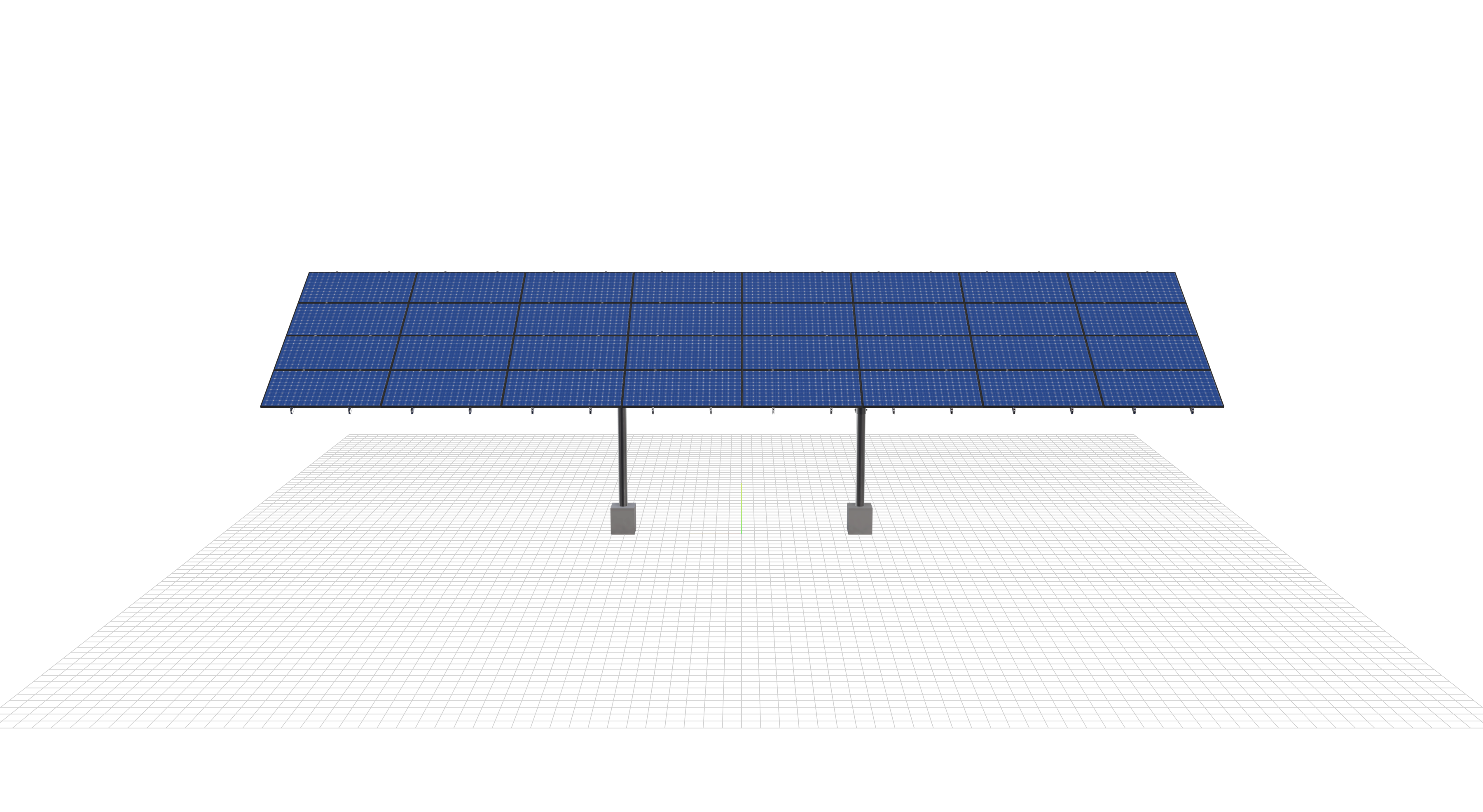

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 83.9 inches by 41.3 inches and an array layout of 8 wide by 4 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
WhodathunkitRoad-RevE
$15,611.93
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 83.9 inches by 41.3 inches and an array layout of 8 wide by 4 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
Additional information
| Weight | 3448 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
https://solver.skyciv.com/temp/mergedpdf_pb536dxdg00w84kw.php |
|
| SKU CODE | 3P-19.75-6TOP-XD-57-L-4Hx8W |
| DUTY SIZE | XD |
| POLE SIZE | 6in, Pipe, Sch, 40 |
| PRODUCT TYPE | Beam |
| NUMBER OF_POLES | 3 |
| POLE SPACING | 15 |
| POLE HEIGHT | 11.48 |
| WING SPAN | 57 |
| FOUNDATION DEPTHS | [object, Object] |
| TILT ANGLE | 30 |
| CANTILEVER | 678 |
| GROUND CLEARANCE | 8 |
| NO POLES | 3 |
| MODULE AREA | 788.6266666666666 |
| ARRAY WIDTH | 56.6 |
| ARRAY HEIGHT | 13.933333333333332 |
| RAIL LENGTH | 167.2 |
| MODULE LENGTH | 83.9 |
| PASSED OVERHANG_CHECK | true |
| MODULE WIDTH_GAP | 0.5 |
| MODULE LENGTH_GAP | 1 |
| TOTAL FRAME_LENGTH | 56.5 |
| GROUND TO_TOP | 14.924999999999999 |
| PROJECTED PANEL_HEIGHT | 6.883333333333333 |
| WIND SPEED_OVERRIDE | null |
| SNOW LOAD_OVERRIDE | 82 |
| DIRECT SNOW_LOAD | false |
| PROJECT ID | WhodathunkitRoad-RevE |
| SITE ADDRESS | Sandpoint, ID, 83864, USA |
| MODULE WIDTH | 41.3 |
| NUMBER ROWS | 4 |
| NUMBER COLUMNS | 8 |
| MAIN PIPE_SECTION | 2_12GA |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| SOIL TYPE | sand |
| FOUNDATION TYPE | Round |
| FOUNDATION SIZE | 36 |
| CHECK RAILS | true |
| TOTAL PRICE | 15611.93 |
| TOTAL WEIGHT | 2940.6099999999997 |
| TOTAL PALLETS | 3 |
| ID | 151 |
