$7,250.04

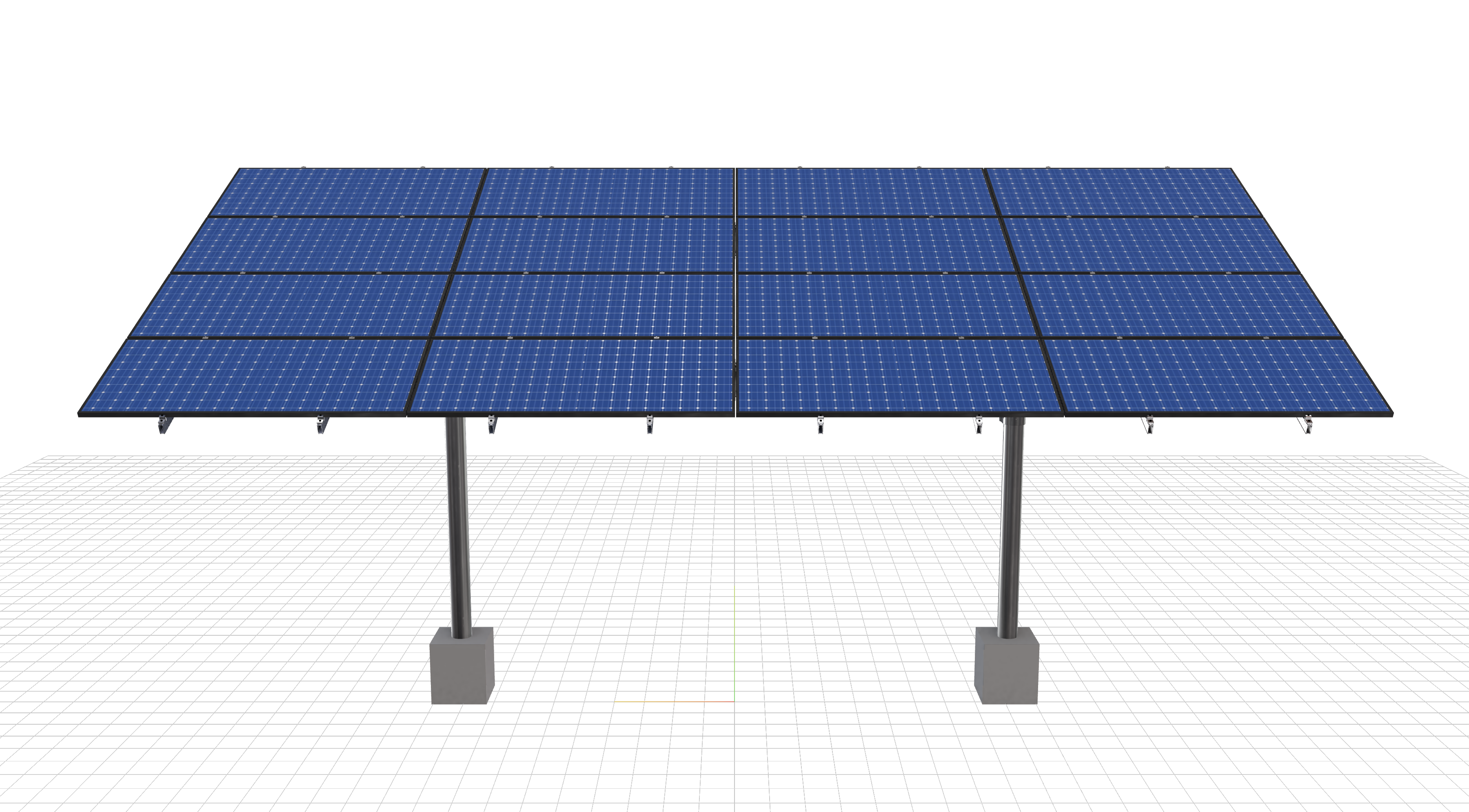

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87.2 inches by 41.1 inches and an array layout of 4 wide by 4 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack.
A chain hoist and lift bracket are needed for each pole (not included).
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87.2 inches by 41.1 inches and an array layout of 4 wide by 4 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack.
A chain hoist and lift bracket are needed for each pole (not included).
SKU: 2P-17-8TOP-SD-24-L-4HX4W
| Weight | 1365 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
https://SOLVER.SKYCIV.COM/TEMP/MERGEDPDF, 3QW8K9N9VKKKOW08.PHP |
|
| SKU CODE | 2P-17-8TOP-SD-24-L-4HX4W |
| DUTY SIZE | SD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF_POLES | 2 |
| POLE SPACING | 15 |
| POLE HEIGHT | 9.6 |
| WING SPAN | 24 |
| FOUNDATION DEPTHS | [OBJECT, OBJECT] |
| TILT ANGLE | 22 |
| CANTILEVER | 342 |
| GROUND CLEARANCE | 7 |
| NO POLES | 2 |
| MODULE AREA | 407.68000000000006 |
| ARRAY WIDTH | 29.400000000000002 |
| ARRAY HEIGHT | 13.866666666666667 |
| RAIL LENGTH | 166.4 |
| MODULE LENGTH | 87.2 |
| PASSED OVERHANG_CHECK | TRUE |
| MODULE WIDTH_GAP | 0.5 |
| MODULE LENGTH_GAP | 1 |
| TOTAL FRAME_LENGTH | 28.5 |
| GROUND TO_TOP | 12.163327545915989 |
| PROJECTED PANEL_HEIGHT | 5.132110329797996 |
| WIND SPEED_OVERRIDE | NULL |
| SNOW LOAD_OVERRIDE | NULL |
| DIRECT SNOW_LOAD | FALSE |
| PROJECT ID | 3984396089 |
| SITE ADDRESS | STOCKTON, CA, 95212, USA |
| MODULE WIDTH | 41.1 |
| NUMBER ROWS | 4 |
| NUMBER COLUMNS | 4 |
| MAIN PIPE_SECTION | 2, 12GA |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| POLE OVERRIDE | 8, 40 |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 7250.040000000001 |
| TOTAL WEIGHT | 1279.88 |
| TOTAL PALLETS | 2 |
| ID | 217 |
