This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 83.9 inches by 41.3 inches and an array layout of 4 wide by 3 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

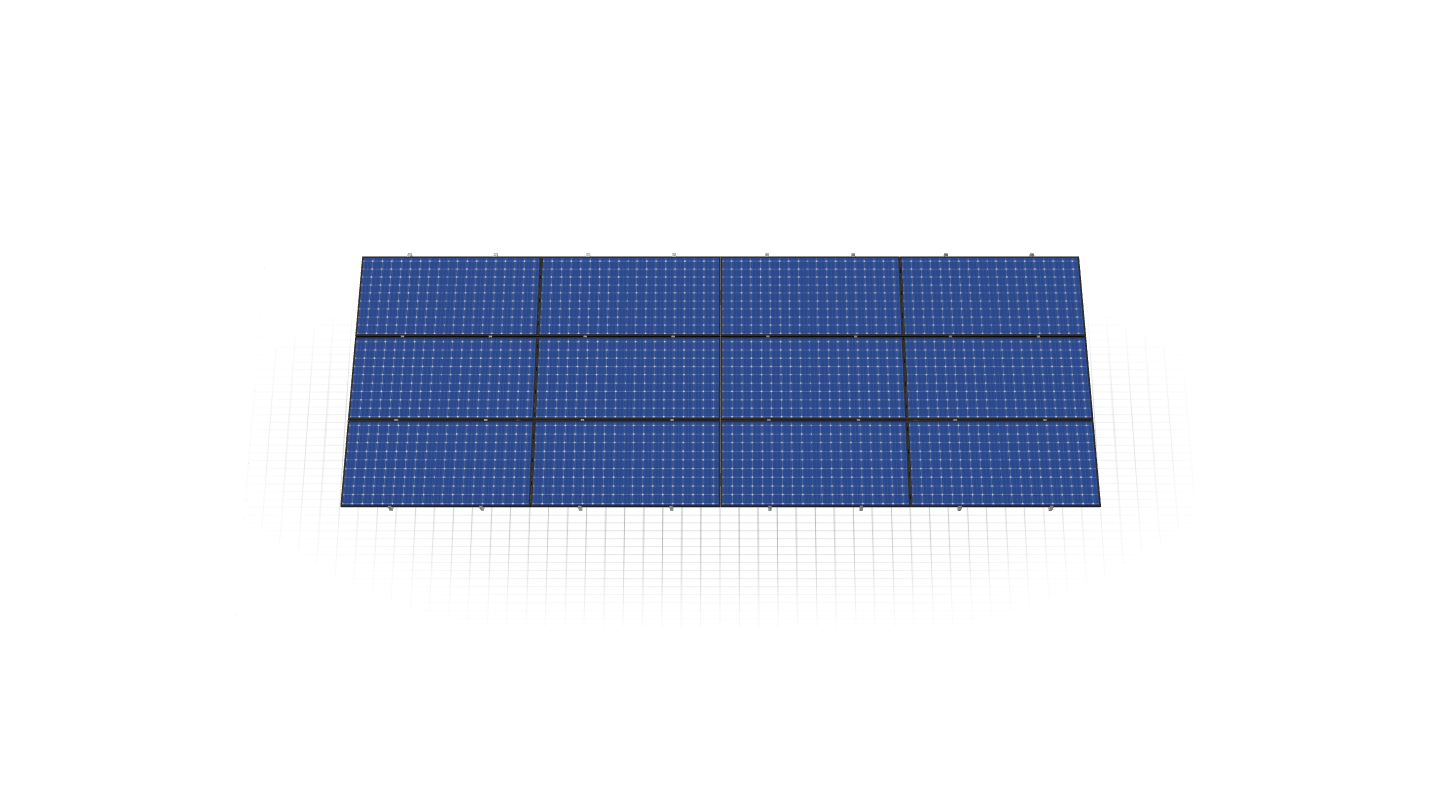

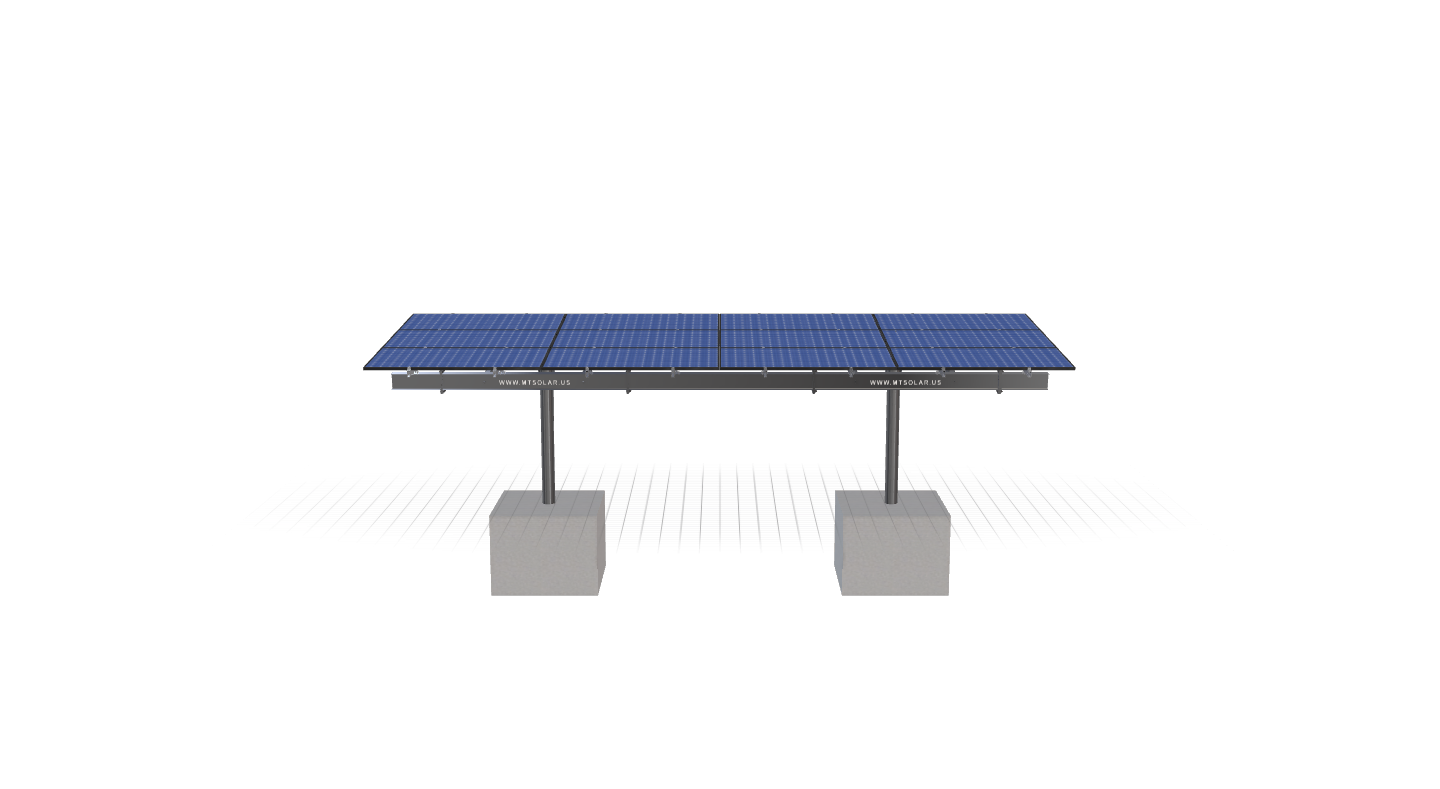

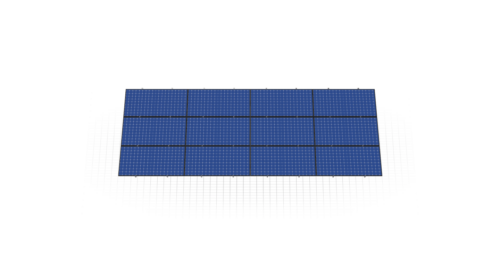

See 3D Model Here
406.Commons.REV1
$6,620.88
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 83.9 inches by 41.3 inches and an array layout of 4 wide by 3 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
Weight | 1162.18 lbs |
---|---|
Dimensions | 90 × 24 × 24 in |
SKU CODE | 2P-15-6TOP-SD-24-L-3HX4W-D719 |
DUTY SIZE | SD |
POLE SIZE | 6IN, PIPE, SCH, 40 |
PRODUCT TYPE | BEAM |
NUMBER OF POLES | 2.00 |
POLE SPACING | 15.00 |
POLE HEIGHT | 6.46 |
WING SPAN | 24.00 |
MAX FOUNDATION DEPTH | 3.50 |
TILT ANGLE | 5.00 |
CANTILEVER | 318.00 |
GROUND CLEARANCE | 6.00 |
NO POLES | 2.00 |
MODULE AREA | 295.74 |
ARRAY WIDTH | 28.30 |
ARRAY HEIGHT | 10.45 |
RAIL LENGTH | 125.40 |
MODULE LENGTH | 83.90 |
PASSED OVERHANG CHECK | TRUE |
MODULE WIDTH GAP | 0.50 |
MODULE LENGTH GAP | 1.00 |
TOTAL FRAME LENGTH | 26.50 |
GROUND TO TOP | 6.91 |
PROJECTED PANEL HEIGHT | 0.90 |
WIND SPEED OVERRIDE | NULL |
SNOW LOAD OVERRIDE | NULL |
DIRECT SNOW LOAD | FALSE |
PROJECT ID | 406.COMMONS.REV1 |
SITE ADDRESS | 2105, BOW, ST, MISSOULA, MT, 59801, USA |
MODULE WIDTH | 41.30 |
NUMBER ROWS | 3.00 |
NUMBER COLUMNS | 4.00 |
RISK CATEGORY | I |
EXPOSURE CATEGORY | C |
FRAME DUTY OVERRIDE | AUTO |
POLE OVERRIDE | AUTO |
SOIL TYPE | SAND |
FOUNDATION TYPE | SQUARE |
FOUNDATION SIZE | 48.00 |
CHECK RAILS | FALSE |
TOTAL PRICE | 6620.88 |
TOTAL WEIGHT | 1162.18 |
TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/f5195c4b-2b22-4a34-b556-959082270d57.pdf |
|
ID | 644.00 |
3D Solar link |
