This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 65 inches by 40 inches and an array layout of 10 wide by 3 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

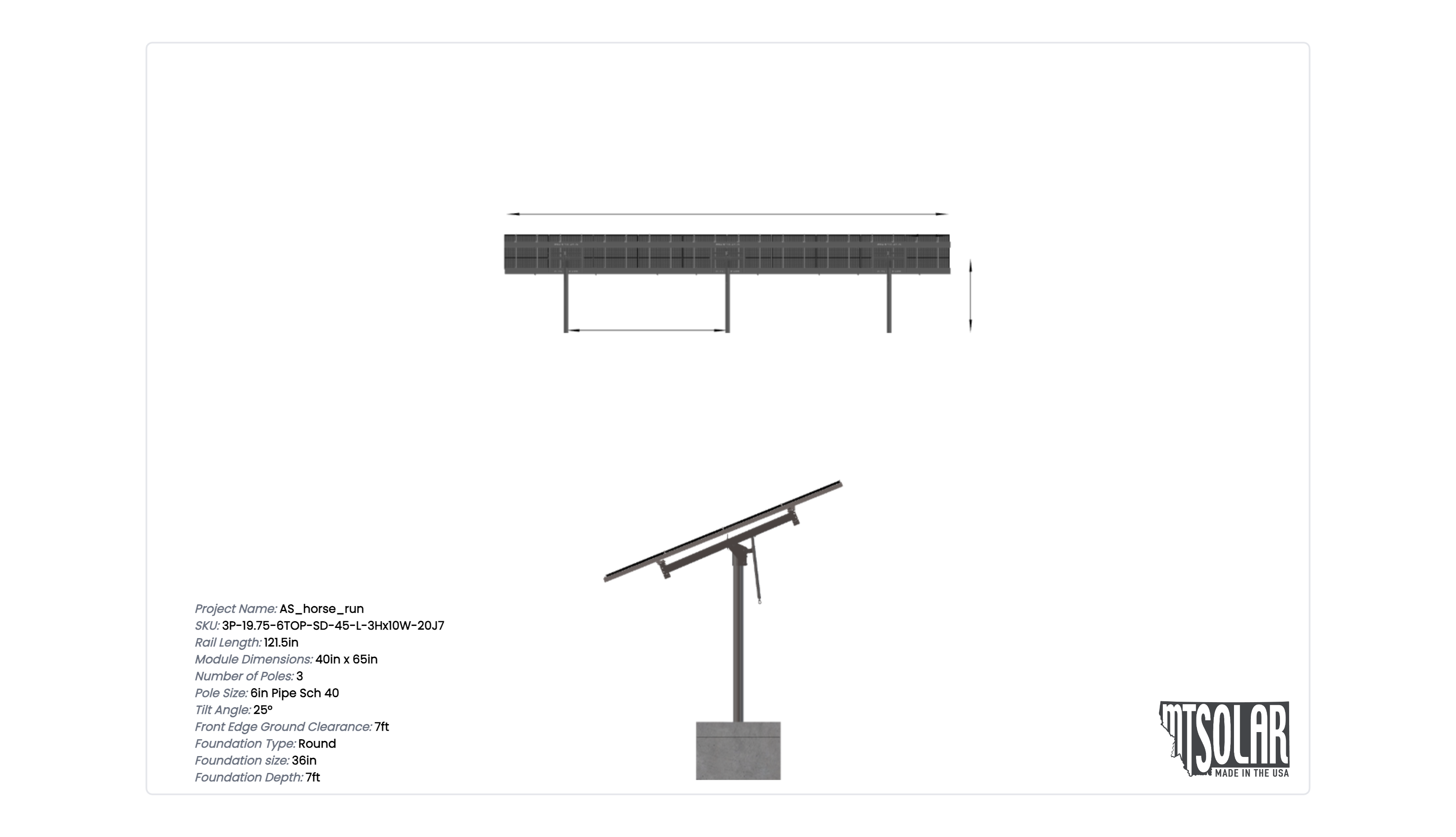

See 3D Model Here
AS_horse_run
$12,245.95
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 65 inches by 40 inches and an array layout of 10 wide by 3 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
Weight | 2174.2 lbs |
---|---|
Dimensions | 90 × 24 × 24 in |
SKU CODE | 3P-19.75-6TOP-SD-45-L-3HX10W-20J7 |
DUTY SIZE | SD |
POLE SIZE | 6IN, PIPE, SCH, 40 |
PRODUCT TYPE | BEAM |
NUMBER OF POLES | 3.00 |
POLE SPACING | 19.75 |
POLE HEIGHT | 9.14 |
WING SPAN | 45.00 |
MAX FOUNDATION DEPTH | 7.00 |
TILT ANGLE | 25.00 |
CANTILEVER | 654.00 |
GROUND CLEARANCE | 7.00 |
NO POLES | 3.00 |
MODULE AREA | 556.88 |
ARRAY WIDTH | 55.00 |
ARRAY HEIGHT | 10.13 |
RAIL LENGTH | 121.50 |
MODULE LENGTH | 65.00 |
PASSED OVERHANG CHECK | TRUE |
MODULE WIDTH GAP | 0.50 |
MODULE LENGTH GAP | 1.00 |
TOTAL FRAME LENGTH | 54.50 |
GROUND TO TOP | 11.25 |
PROJECTED PANEL HEIGHT | 4.23 |
WIND SPEED OVERRIDE | NULL |
SNOW LOAD OVERRIDE | NULL |
DIRECT SNOW LOAD | FALSE |
ADD ANGLE BRACE | FALSE |
PROJECT ID | AS, HORSE, RUN |
SITE ADDRESS | 1075, US, HWY, 12, MILES, CITY, MT, 59301, USA |
MODULE WIDTH | 40.00 |
NUMBER ROWS | 3.00 |
NUMBER COLUMNS | 10.00 |
RISK CATEGORY | I |
EXPOSURE CATEGORY | B |
FRAME DUTY OVERRIDE | AUTO |
POLE OVERRIDE | AUTO |
SOIL TYPE | SAND |
CUSTOMER FOUNDATION OVERRIDE | 36, ROUND |
FOUNDATION TYPE | ROUND |
FOUNDATION SIZE | 36.00 |
CHECK RAILS | FALSE |
TOTAL PRICE | 12245.95 |
TOTAL WEIGHT | 2174.20 |
TOTAL PALLETS | 3.00 |
