This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 95.1 inches by 44.7 inches and an array layout of 2 wide by 5 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

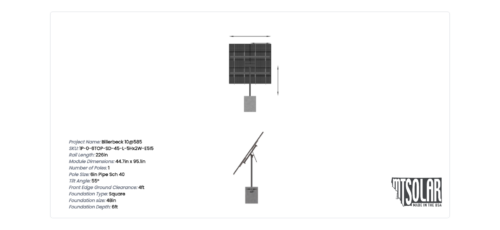

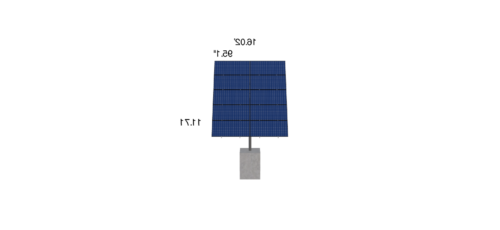

See 3D Model Here
Billerbeck 10@585
$3,918.92
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 95.1 inches by 44.7 inches and an array layout of 2 wide by 5 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
Weight | 754.88 lbs |
---|---|
Dimensions | 90 × 24 × 24 in |
SKU CODE | 1P-0-6TOP-SD-45-L-5HX2W-E5I5 |
DUTY SIZE | SD |
POLE SIZE | 6IN, PIPE, SCH, 40 |
PRODUCT TYPE | BEAM |
NUMBER OF POLES | 1.00 |
POLE SPACING | 0.00 |
POLE HEIGHT | 11.71 |
WING SPAN | 45.00 |
MAX FOUNDATION DEPTH | 6.00 |
TILT ANGLE | 55.00 |
CANTILEVER | 180.00 |
GROUND CLEARANCE | 4.00 |
NO POLES | 1.00 |
MODULE AREA | 301.65 |
ARRAY WIDTH | 16.02 |
ARRAY HEIGHT | 18.83 |
RAIL LENGTH | 226.00 |
MODULE LENGTH | 95.10 |
PASSED OVERHANG CHECK | TRUE |
MODULE WIDTH GAP | 0.50 |
MODULE LENGTH GAP | 1.00 |
TOTAL FRAME LENGTH | 15.00 |
GROUND TO TOP | 19.34 |
PROJECTED PANEL HEIGHT | 15.26 |
PROJECT ID | BILLERBECK, 10@585 |
SITE ADDRESS | 256, PAGE, RD, JACKSON, ME, 04921, USA |
MODULE WIDTH | 44.70 |
NUMBER ROWS | 5.00 |
NUMBER COLUMNS | 2.00 |
RISK CATEGORY | I |
EXPOSURE CATEGORY | B |
FRAME DUTY OVERRIDE | AUTO |
POLE OVERRIDE | AUTO |
SOIL TYPE | SAND |
CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
FOUNDATION TYPE | SQUARE |
FOUNDATION SIZE | 48.00 |
CHECK RAILS | FALSE |
WIND SPEED OVERRIDE | 90.00 |
SNOW LOAD OVERRIDE | 50.00 |
DIRECT SNOW LOAD | FALSE |
ADD ANGLE BRACE | FALSE |
TOTAL PRICE | 3918.92 |
TOTAL WEIGHT | 754.88 |
TOTAL PALLETS | 1.00 |
