Brian Bell

$4,074.11

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74 inches by 41.1 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 1P-0-8TOP-SD-57-L-4Hx3W-ECE9 Category:

Description

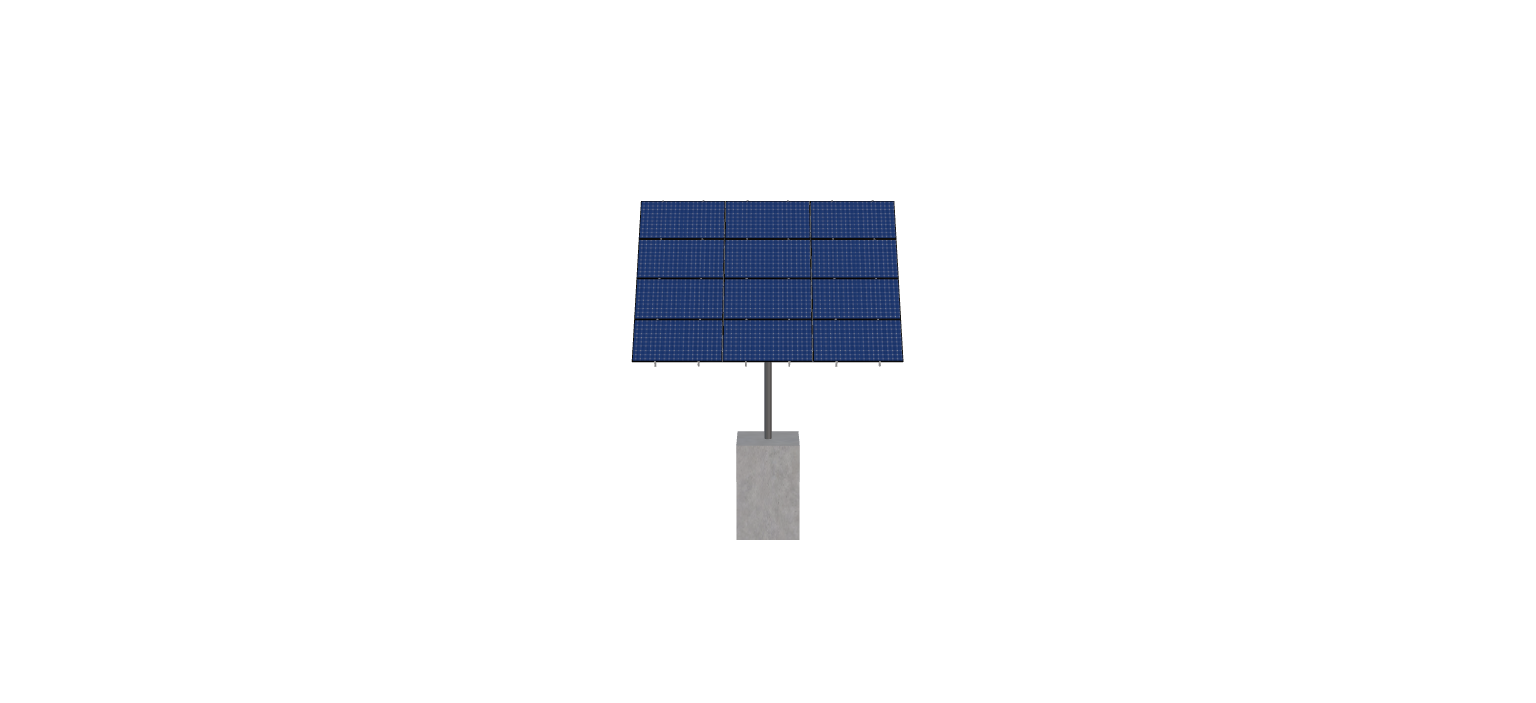

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74 inches by 41.1 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 714.66 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

1P-0-8TOP-SD-57-L-4HX3W-ECE9

DUTY SIZE

SD

POLE SIZE

8IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

1.00

POLE SPACING

0.00

POLE HEIGHT

11.31

WING SPAN

57.00

MAX FOUNDATION DEPTH

7.00

TILT ANGLE

50.00

CANTILEVER

204.00

GROUND CLEARANCE

6.00

NO POLES

1.00

MODULE AREA

260.00

ARRAY WIDTH

18.75

ARRAY HEIGHT

13.87

RAIL LENGTH

166.40

MODULE LENGTH

74.00

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

17.00

GROUND TO TOP

16.56

PROJECTED PANEL HEIGHT

10.49

WIND SPEED OVERRIDE

120.00

SNOW LOAD OVERRIDE

40.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

PROJECT ID

BRIAN, BELL

SITE ADDRESS

93HWVR8G+RC

MODULE WIDTH

41.10

NUMBER ROWS

4.00

NUMBER COLUMNS

3.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

TOTAL PRICE

4074.11

TOTAL WEIGHT

714.66

TOTAL PALLETS

1.00
