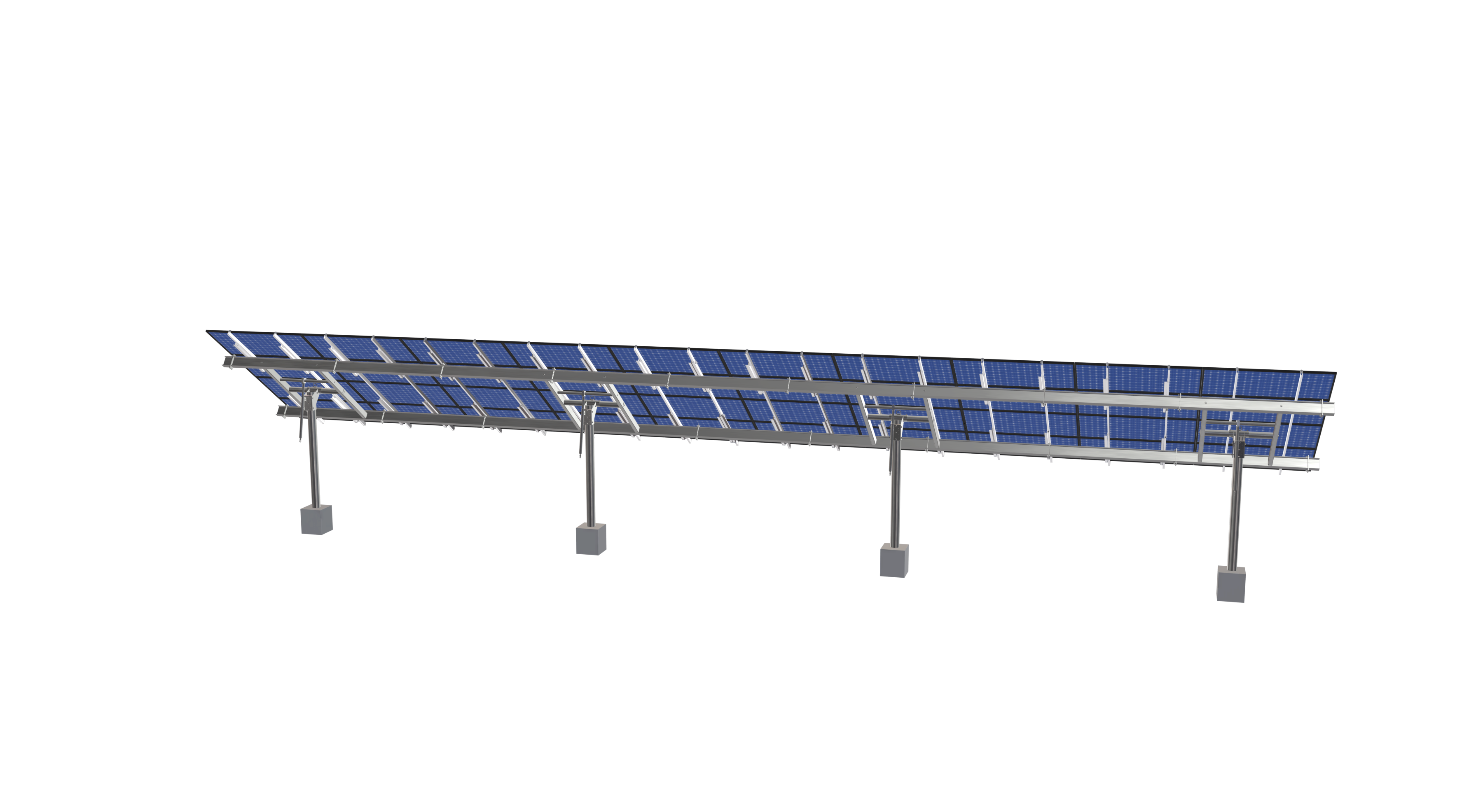

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 81.89 inches by 40.55 inches and an array layout of 10 wide by 4 high.
This mount fits on 4 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
DrGabriels-JB-RevA
$15,763.32
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 81.89 inches by 40.55 inches and an array layout of 10 wide by 4 high.
This mount fits on 4 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
Additional information
| Weight | 2809.7 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 4P-19.75-6TOP-SD-12-L-4HX10W-9B6J |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 4.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 7.92 |
| WING SPAN | 12.00 |
| MAX FOUNDATION DEPTH | 7.75 |
| TILT ANGLE | 35.00 |
| CANTILEVER | 825.00 |
| GROUND CLEARANCE | 4.00 |
| NO POLES | 4.00 |
| MODULE AREA | 945.18 |
| ARRAY WIDTH | 69.08 |
| ARRAY HEIGHT | 13.68 |
| RAIL LENGTH | 164.20 |
| MODULE LENGTH | 81.89 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 68.75 |
| GROUND TO TOP | 11.80 |
| PROJECTED PANEL HEIGHT | 7.75 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | DRGABRIELS-JB-REVA |
| SITE ADDRESS | 101306-100570, TWENTYNINE, PALMS, HIGHWAY, TWENTYNINE, PALMS, CA, 92277, USA |
| MODULE WIDTH | 40.55 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 10.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 15763.32 |
| TOTAL WEIGHT | 2809.70 |
| TOTAL PALLETS | 4.00 |
