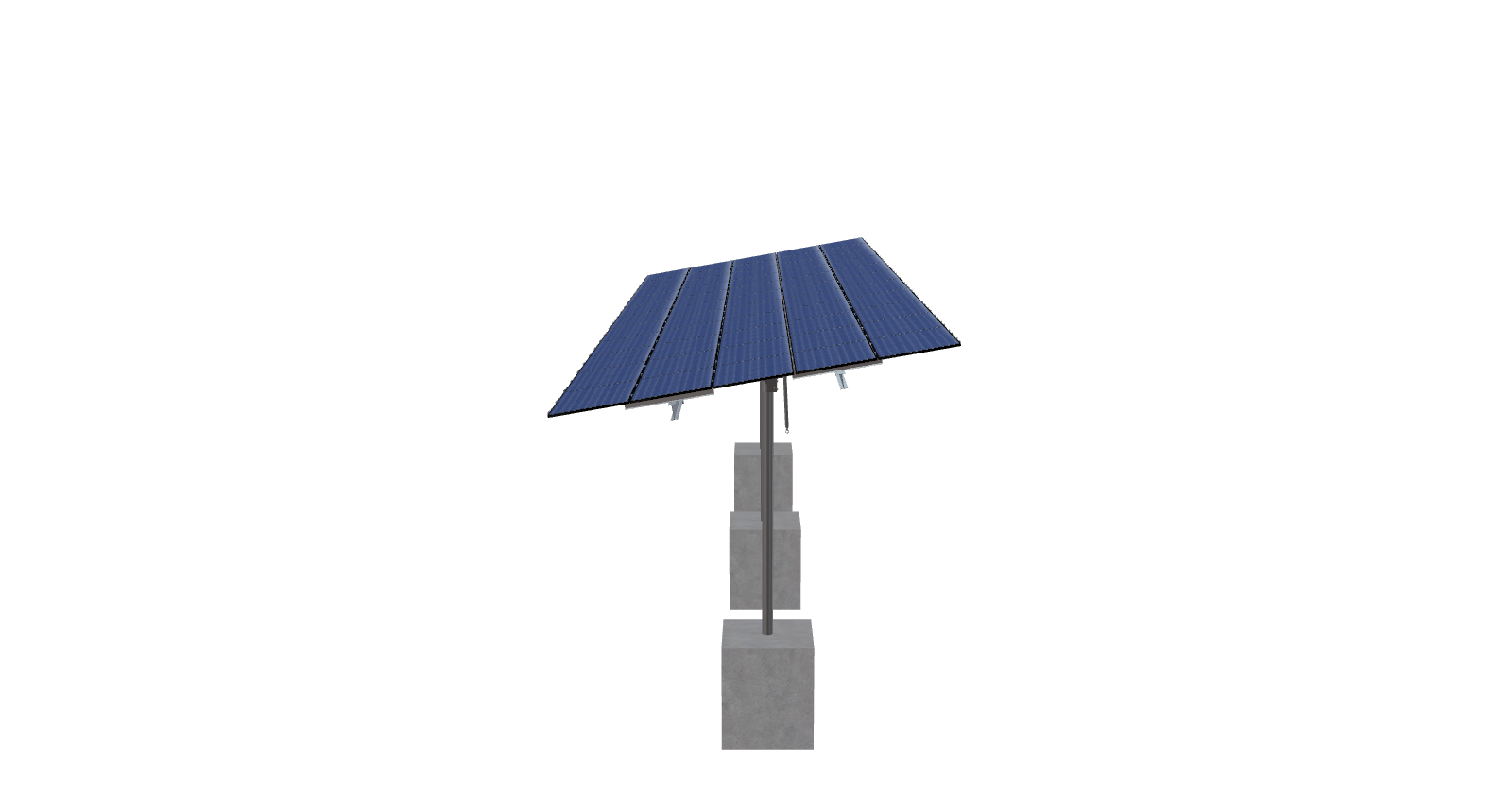

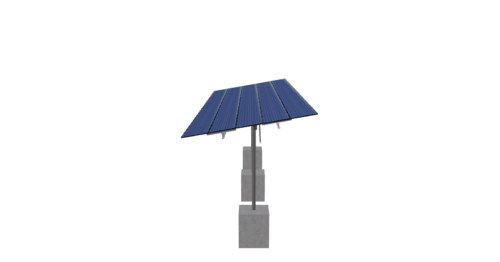

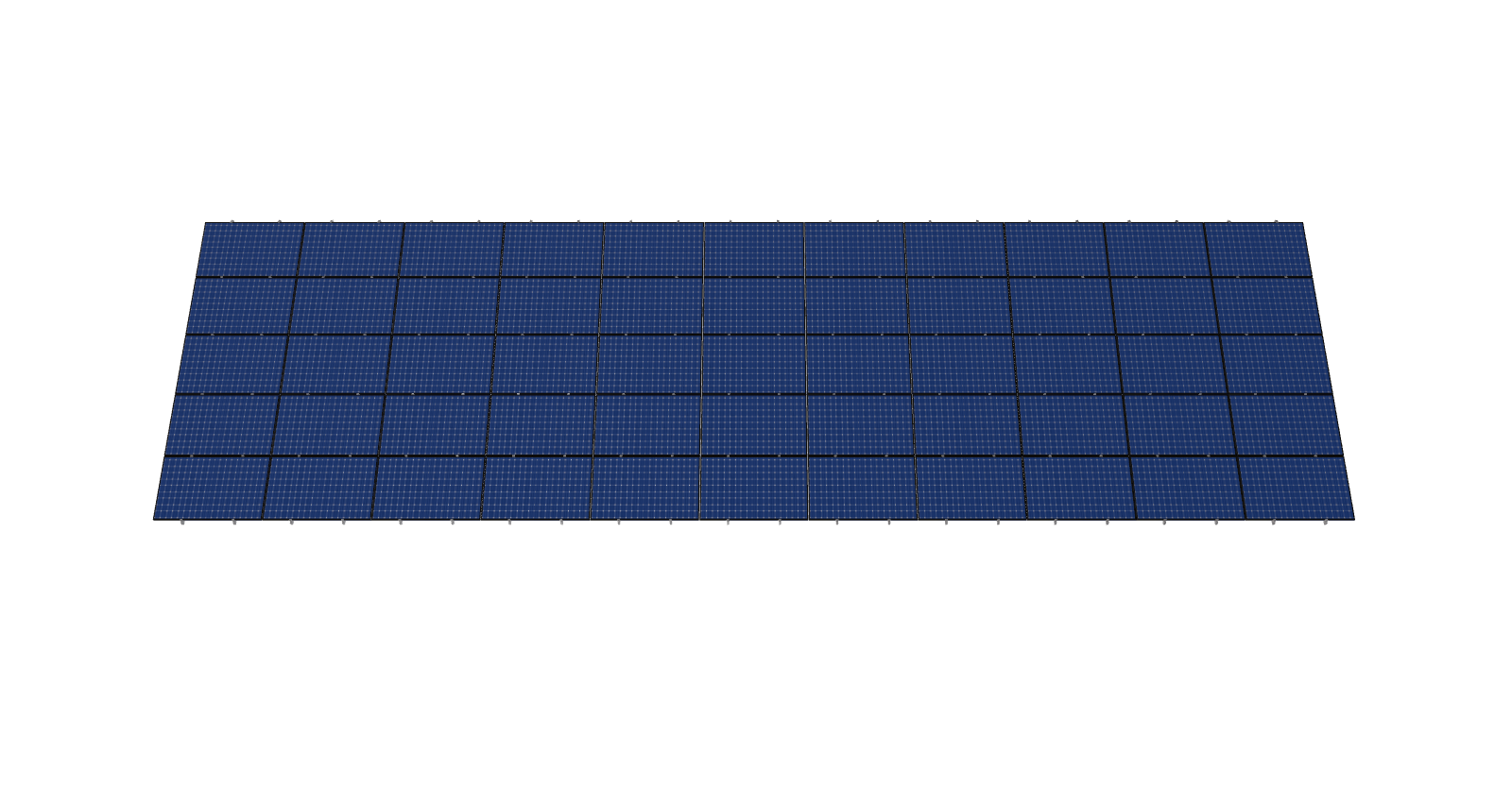

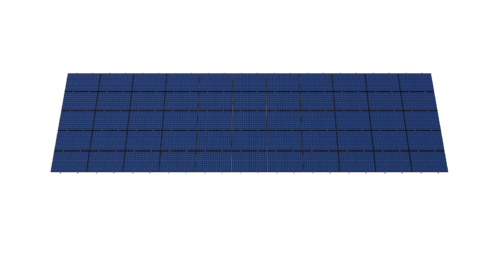

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68.1 inches by 44 inches and an array layout of 11 wide by 5 high.

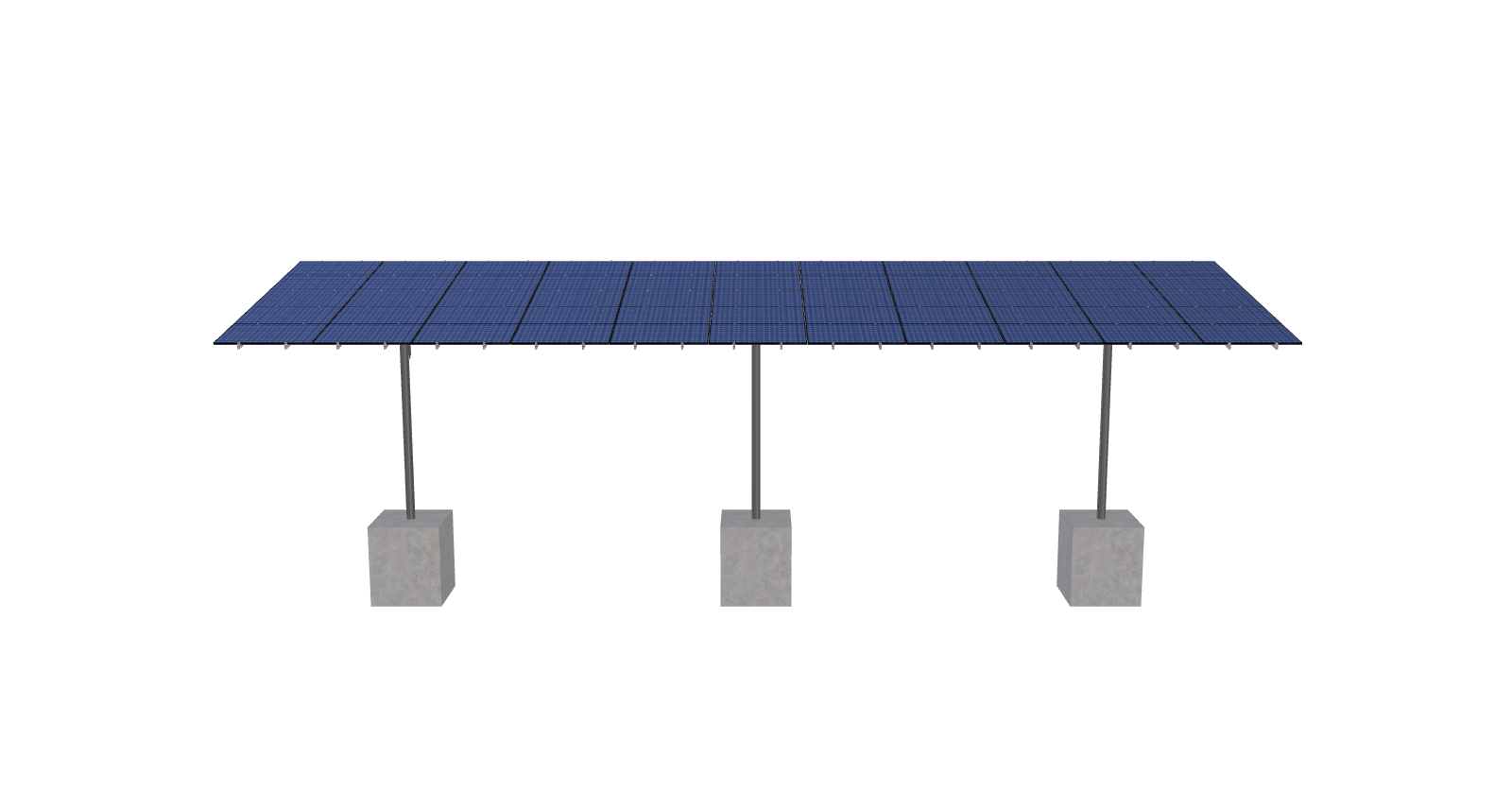

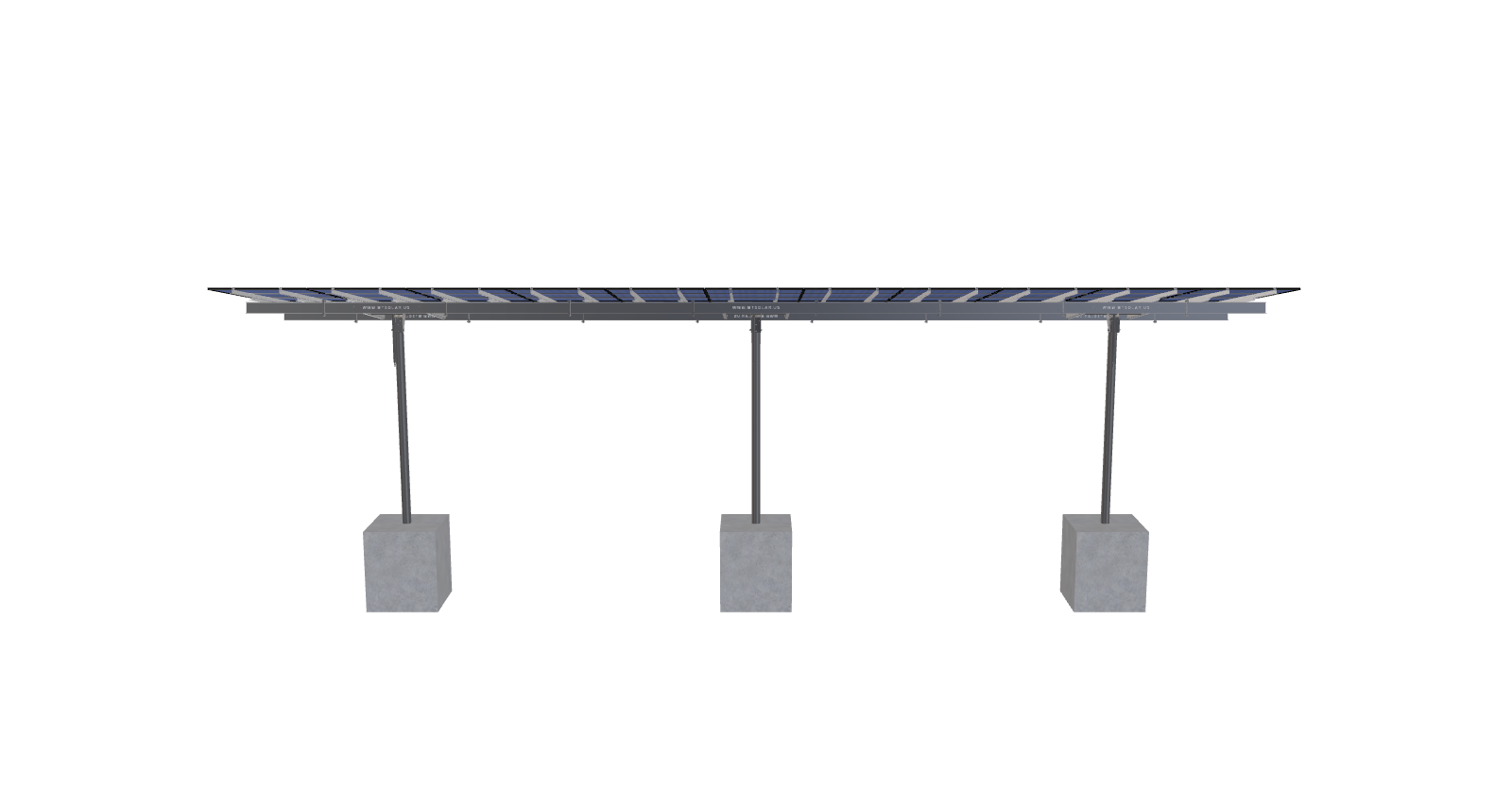

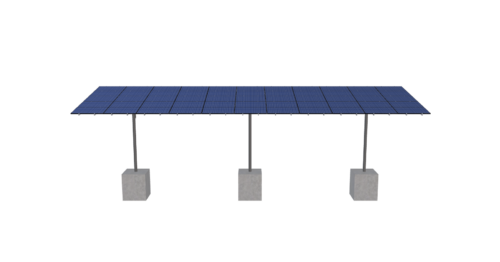

This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Endswell -TOP55- v1
$17,311.39
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68.1 inches by 44 inches and an array layout of 11 wide by 5 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 3516.49 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-22.5-6TOP-HD-57-L-5HX11W-C56A |
| DUTY SIZE | HD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |

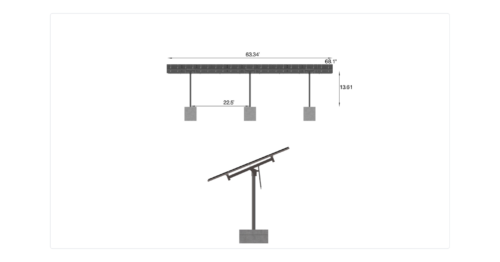

| POLE SPACING | 22.50 |
| POLE HEIGHT | 13.61 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 5.25 |
| TILT ANGLE | 10.00 |
| CANTILEVER | 744.00 |
| GROUND CLEARANCE | 12.00 |
| NO POLES | 3.00 |
| MODULE AREA | 1174.46 |
| ARRAY WIDTH | 63.34 |
| ARRAY HEIGHT | 18.54 |
| RAIL LENGTH | 222.50 |
| MODULE LENGTH | 68.10 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 62.00 |
| GROUND TO TOP | 15.20 |
| PROJECTED PANEL HEIGHT | 3.18 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| PROJECT ID | ENDSWELL, -TOP55-, V1 |
| SITE ADDRESS | 407, MEADOWLANDS, DR, HILLSBOROUGH, NC, 27278, USA |
| MODULE WIDTH | 44.00 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 11.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 17311.39 |
| TOTAL WEIGHT | 3516.49 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/f32a1607-26ac-445b-9db0-3c3cee599b22.pdf |
|
| ID | 6029.00 |
| 3D Solar link |
