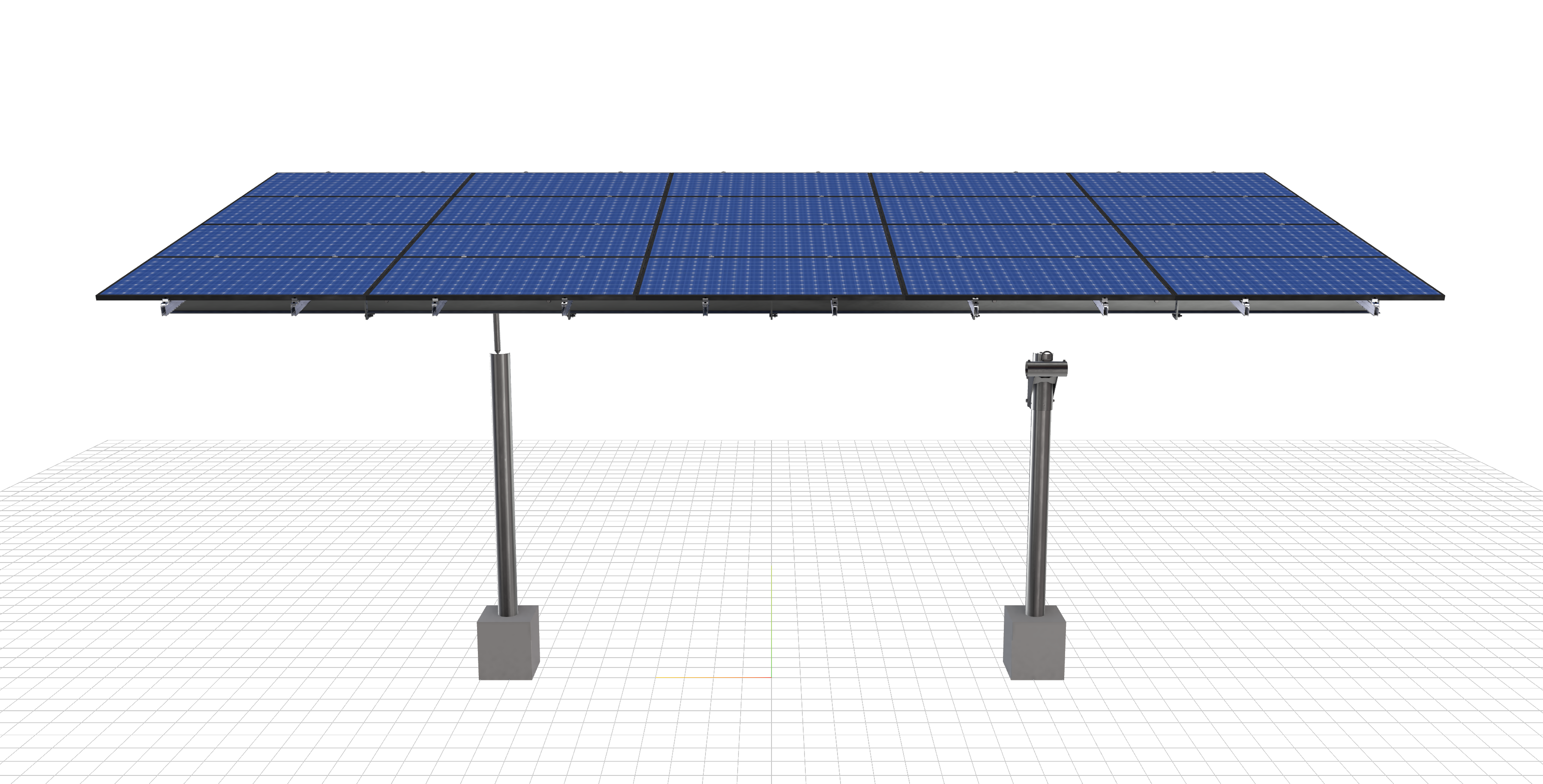

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 73 inches by 41 inches and an array layout of 5 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
EnergySustainabilitySolutionsLLC%7C23582ndAve%7C2896%7CRevB
$7,389.99
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 73 inches by 41 inches and an array layout of 5 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
Additional information
| Weight | 1578 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
https://solver.skyciv.com/temp/mergedpdf_ejrwkx7zrtskgcgk.php |
|
| SKU CODE | 2P-15-6TOP-SD-45-L-4Hx5W |
| DUTY SIZE | SD |
| POLE SIZE | 6in, Pipe, Sch, 40 |
| PRODUCT TYPE | Beam |
| NUMBER OF_POLES | 2 |
| POLE SPACING | 15 |
| POLE HEIGHT | 9.2 |
| WING SPAN | 45 |
| FOUNDATION DEPTHS | [object, Object] |
| TILT ANGLE | 10 |
| CANTILEVER | 360 |
| GROUND CLEARANCE | 8 |
| NO POLES | 2 |
| MODULE AREA | 426.52777777777777 |
| ARRAY WIDTH | 30.833333333333332 |
| ARRAY HEIGHT | 13.833333333333334 |
| RAIL LENGTH | 166 |
| MODULE LENGTH | 73 |
| PASSED OVERHANG_CHECK | true |
| MODULE WIDTH_GAP | 0.5 |
| MODULE LENGTH_GAP | 1 |
| TOTAL FRAME_LENGTH | 30 |
| GROUND TO_TOP | 10.387662442920291 |
| PROJECTED PANEL_HEIGHT | 2.373191761448048 |
| WIND SPEED_OVERRIDE | null |
| SNOW LOAD_OVERRIDE | null |
| DIRECT SNOW_LOAD | false |
| PROJECT ID | EnergySustainabilitySolutionsLLC, 23582ndAve, 2896, RevB |
| SITE ADDRESS | 2358, 2nd, Ave, Decatur, GA, 30032, USA |
| MODULE WIDTH | 41 |
| NUMBER ROWS | 4 |
| NUMBER COLUMNS | 5 |
| MAIN PIPE_SECTION | 2_12GA |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| SOIL TYPE | sandy_gravel |
| FOUNDATION TYPE | Square |
| FOUNDATION SIZE | 36 |
| CHECK RAILS | true |
| TOTAL PRICE | 7389.99 |
| TOTAL WEIGHT | 1291.6 |
| TOTAL PALLETS | 2 |
| ID | 211 |
