This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 65 inches by 40 inches and an array layout of 10 wide by 5 high.
This mount fits on 3 – 10in Pipe Sch 80 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

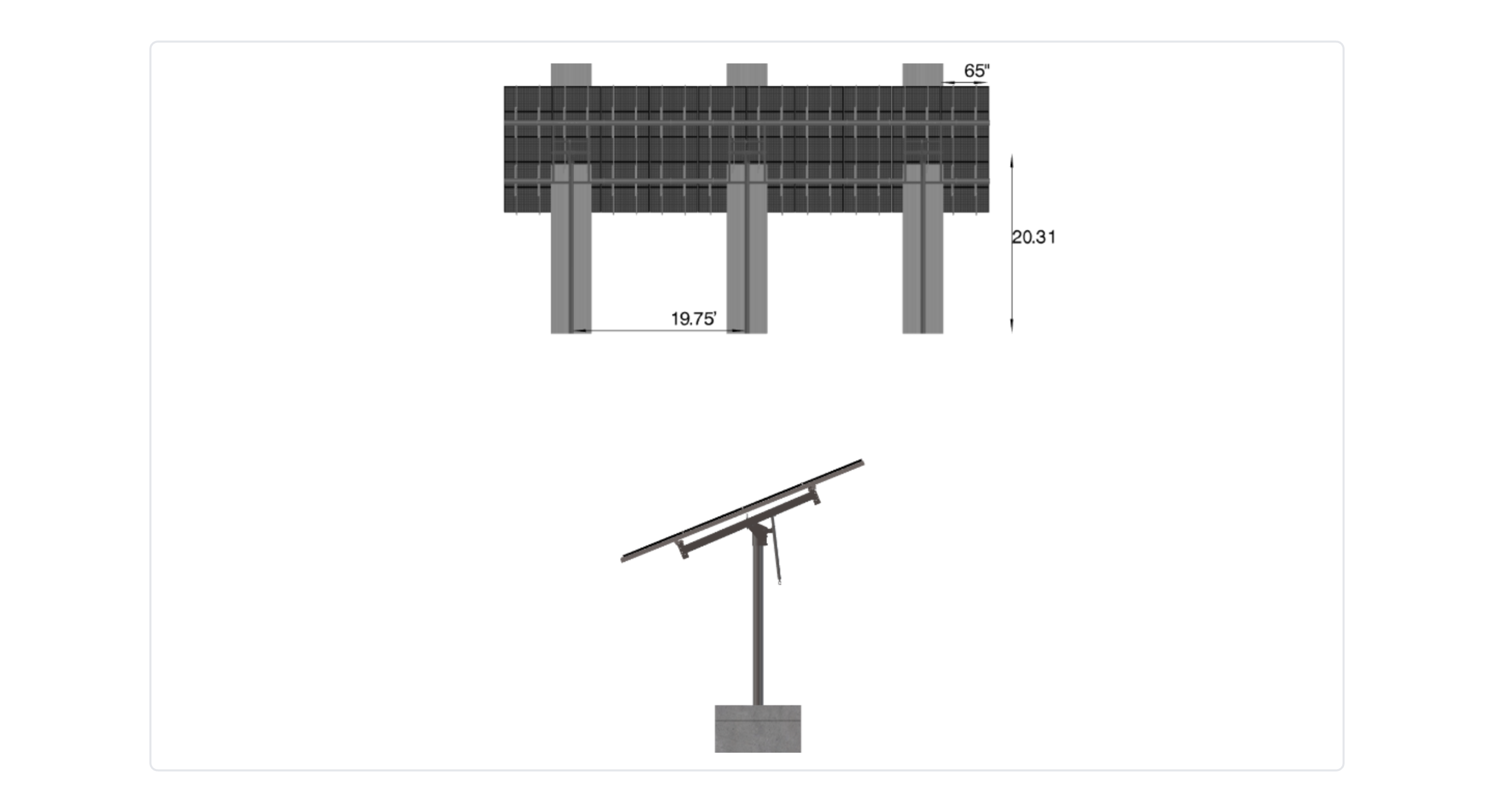

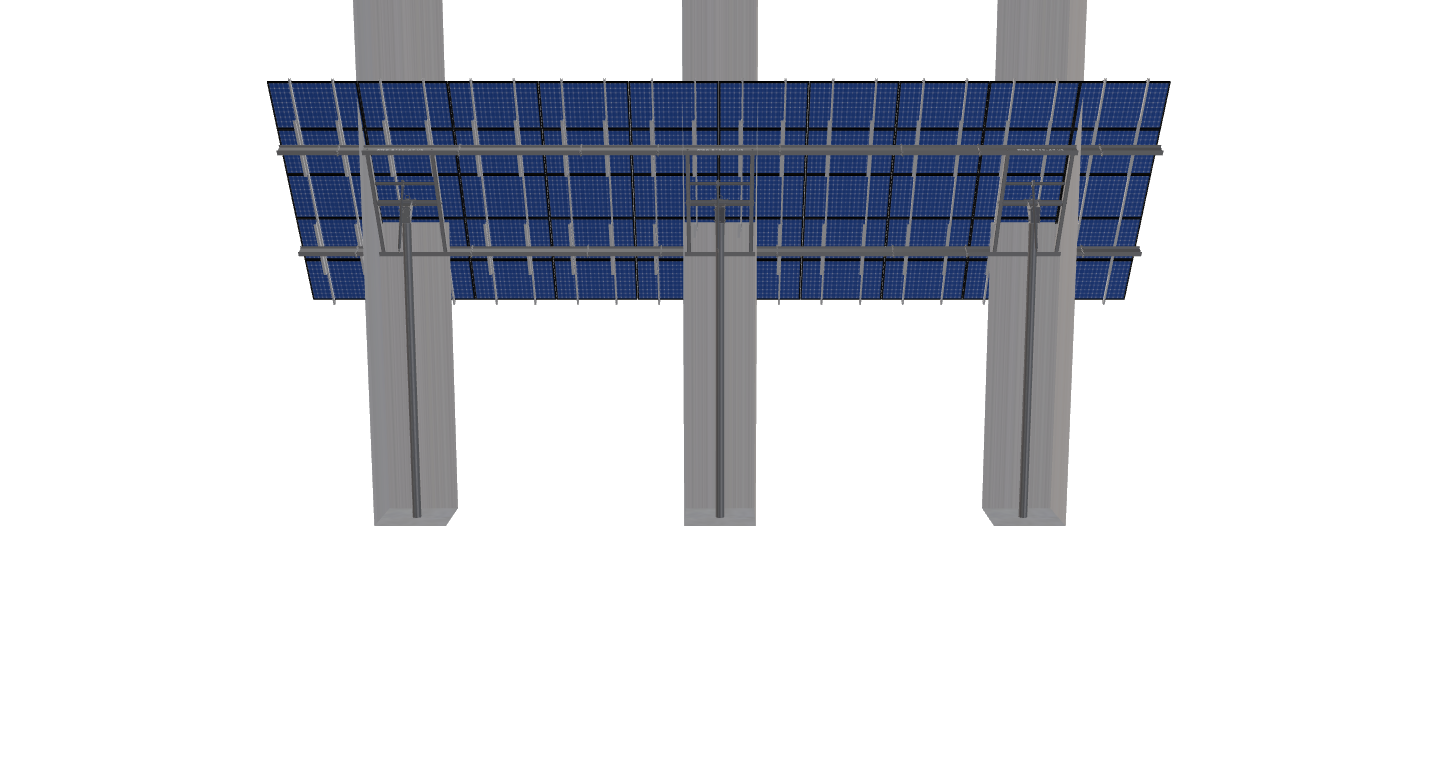

See 3D Model Here
Fletcher-Area1-RevB-JB
$16,680.54
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 65 inches by 40 inches and an array layout of 10 wide by 5 high.
This mount fits on 3 – 10in Pipe Sch 80 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

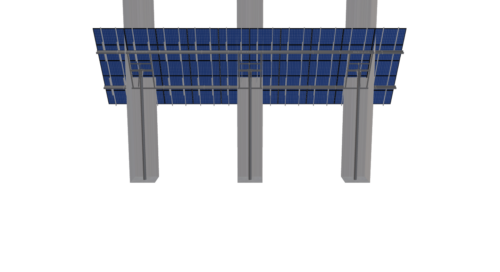

See 3D Model Here
Additional information
Weight | 3355.09 lbs |
---|---|
Dimensions | 90 × 24 × 24 in |
SKU CODE | 3P-19.75-10TOP-HD-45-L-5HX10W-STRUTS-EBGB |
DUTY SIZE | HD |
POLE SIZE | 10IN, PIPE, SCH, 80 |
PRODUCT TYPE | BEAM |
NUMBER OF POLES | 3.00 |
POLE SPACING | 19.75 |
POLE HEIGHT | 20.31 |
WING SPAN | 45.00 |
MAX FOUNDATION DEPTH | -99999999.00 |
TILT ANGLE | 60.00 |
CANTILEVER | 654.00 |
GROUND CLEARANCE | 13.00 |
NO POLES | 3.00 |
MODULE AREA | 928.13 |
ARRAY WIDTH | 55.00 |
ARRAY HEIGHT | 16.88 |
RAIL LENGTH | 202.50 |
MODULE LENGTH | 65.00 |
PASSED OVERHANG CHECK | TRUE |
MODULE WIDTH GAP | 0.50 |
MODULE LENGTH GAP | 1.00 |
TOTAL FRAME LENGTH | 54.50 |
GROUND TO TOP | 27.52 |
PROJECTED PANEL HEIGHT | 14.43 |
WIND SPEED OVERRIDE | 115.00 |
SNOW LOAD OVERRIDE | 90.00 |
DIRECT SNOW LOAD | FALSE |
ADD ANGLE BRACE | TRUE |
PROJECT ID | FLETCHER-AREA1-REVB-JB |
SITE ADDRESS | 80, MAIN, ST, PARIS, ME, 04281, USA |
MODULE WIDTH | 40.00 |
NUMBER ROWS | 5.00 |
NUMBER COLUMNS | 10.00 |
RISK CATEGORY | I |
EXPOSURE CATEGORY | B |
FRAME DUTY OVERRIDE | AUTO |
POLE OVERRIDE | AUTO |
SOIL TYPE | SAND |
CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
FOUNDATION TYPE | SQUARE |
FOUNDATION SIZE | 48.00 |
CHECK RAILS | FALSE |
TOTAL PRICE | 16680.54 |
TOTAL WEIGHT | 3355.09 |
TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/85d8e9f7-652c-4352-93ac-cb6bde8e1c75.pdf |
|
ID | 3767.00 |
3D Solar link |
