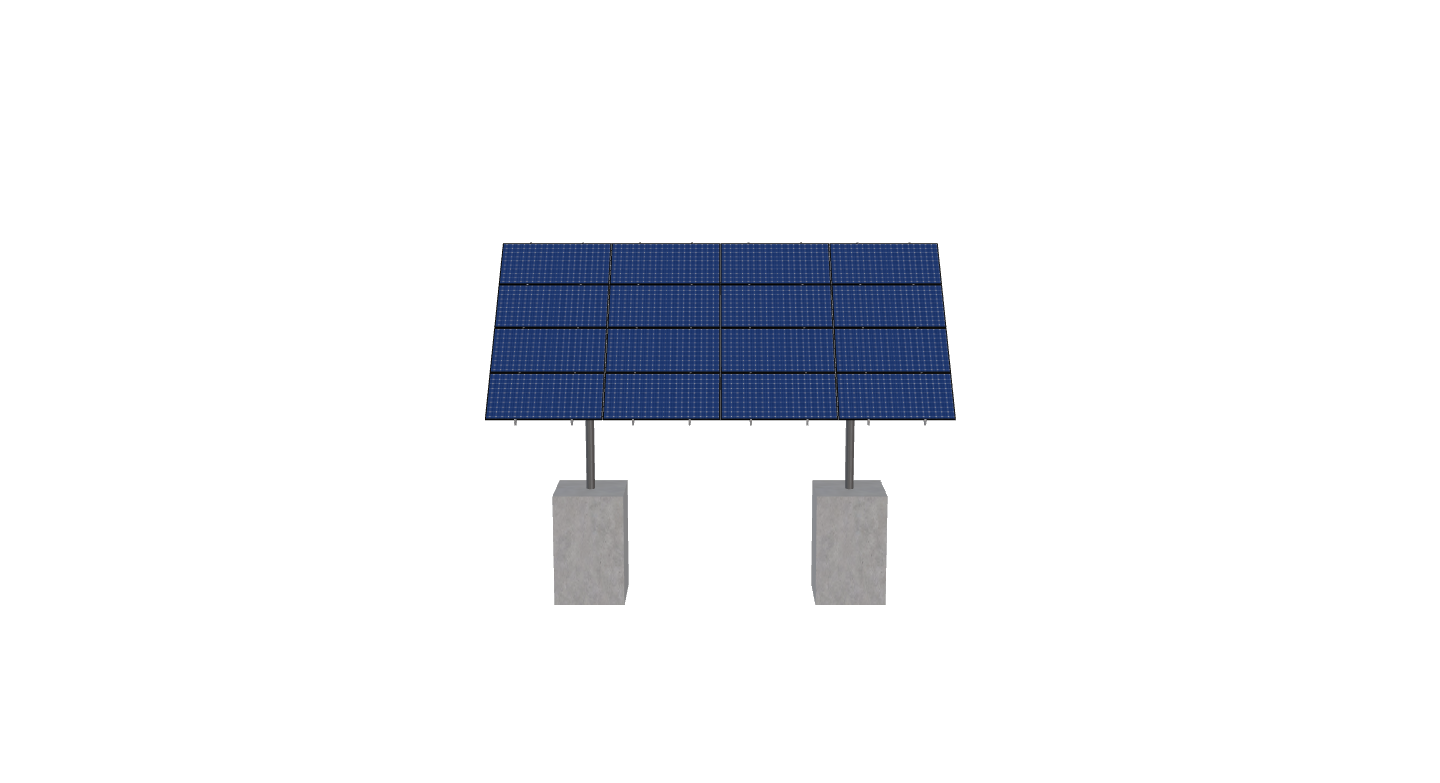

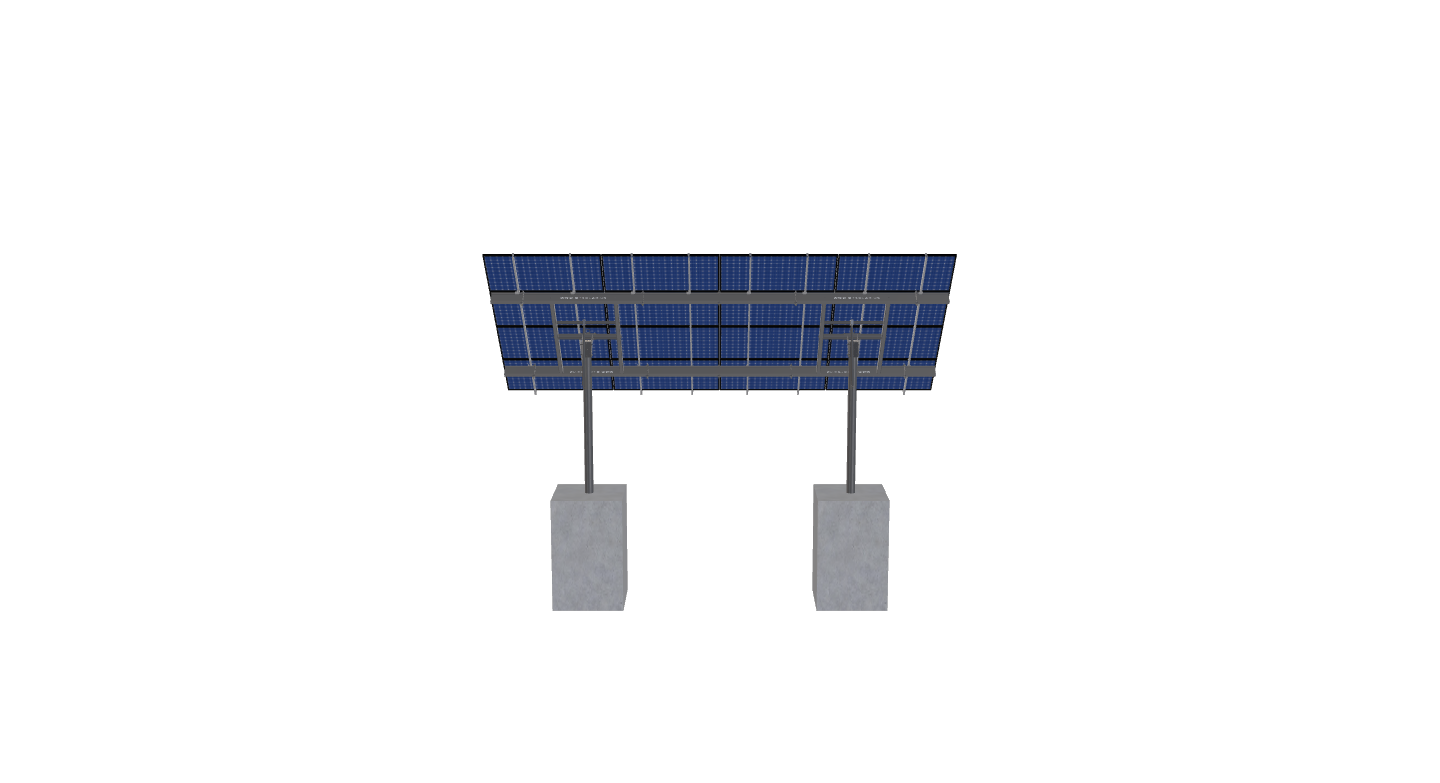

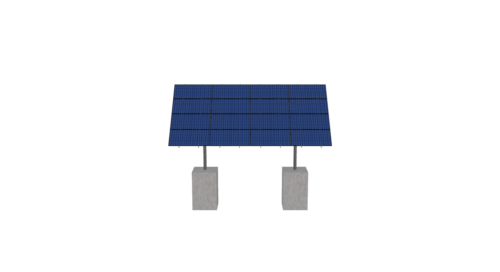

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 86 inches by 42.3 inches and an array layout of 4 wide by 4 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
GreggBradburyGroundMount-RevG-JB
$8,255.48
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 86 inches by 42.3 inches and an array layout of 4 wide by 4 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
Weight | 1513.1399999999999 lbs |
---|---|
Dimensions | 90 × 24 × 24 in |
SKU CODE | 2P-17-8TOP-HD-24-L-4HX4W-KB9K |
DUTY SIZE | HD |
POLE SIZE | 8IN, PIPE, SCH, 40 |
PRODUCT TYPE | BEAM |
NUMBER OF POLES | 2.00 |
POLE SPACING | 17.00 |
POLE HEIGHT | 10.13 |
WING SPAN | 24.00 |
MAX FOUNDATION DEPTH | 7.25 |
TILT ANGLE | 46.00 |
CANTILEVER | 342.00 |
GROUND CLEARANCE | 5.00 |
NO POLES | 2.00 |
MODULE AREA | 413.73 |
ARRAY WIDTH | 29.00 |
ARRAY HEIGHT | 14.27 |
RAIL LENGTH | 171.20 |
MODULE LENGTH | 86.00 |
PASSED OVERHANG CHECK | TRUE |
MODULE WIDTH GAP | 0.50 |
MODULE LENGTH GAP | 1.00 |
TOTAL FRAME LENGTH | 28.50 |
GROUND TO TOP | 15.20 |
PROJECTED PANEL HEIGHT | 10.14 |
WIND SPEED OVERRIDE | 150.00 |
SNOW LOAD OVERRIDE | 30.00 |
DIRECT SNOW LOAD | FALSE |
ADD ANGLE BRACE | FALSE |
PROJECT ID | GREGGBRADBURYGROUNDMOUNT-REVG-JB |
SITE ADDRESS | 8775, BLUE, MOUNTAIN, DR, GOLDEN, CO, 80403, USA |
MODULE WIDTH | 42.30 |
NUMBER ROWS | 4.00 |
NUMBER COLUMNS | 4.00 |
RISK CATEGORY | I |
EXPOSURE CATEGORY | C |
FRAME DUTY OVERRIDE | AUTO |
POLE OVERRIDE | AUTO |
SOIL TYPE | SAND |
CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
FOUNDATION TYPE | SQUARE |
FOUNDATION SIZE | 48.00 |
CHECK RAILS | FALSE |
TOTAL PRICE | 8255.48 |
TOTAL WEIGHT | 1513.14 |
TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/9296739a-b975-4195-a444-db9ef0782755.pdf |
|
ID | 3885.00 |
3D Solar link |
