GuildhallVT-Agrivoltaics-1P-12 mods-Qcell485-RevA-JB

$4,410.70

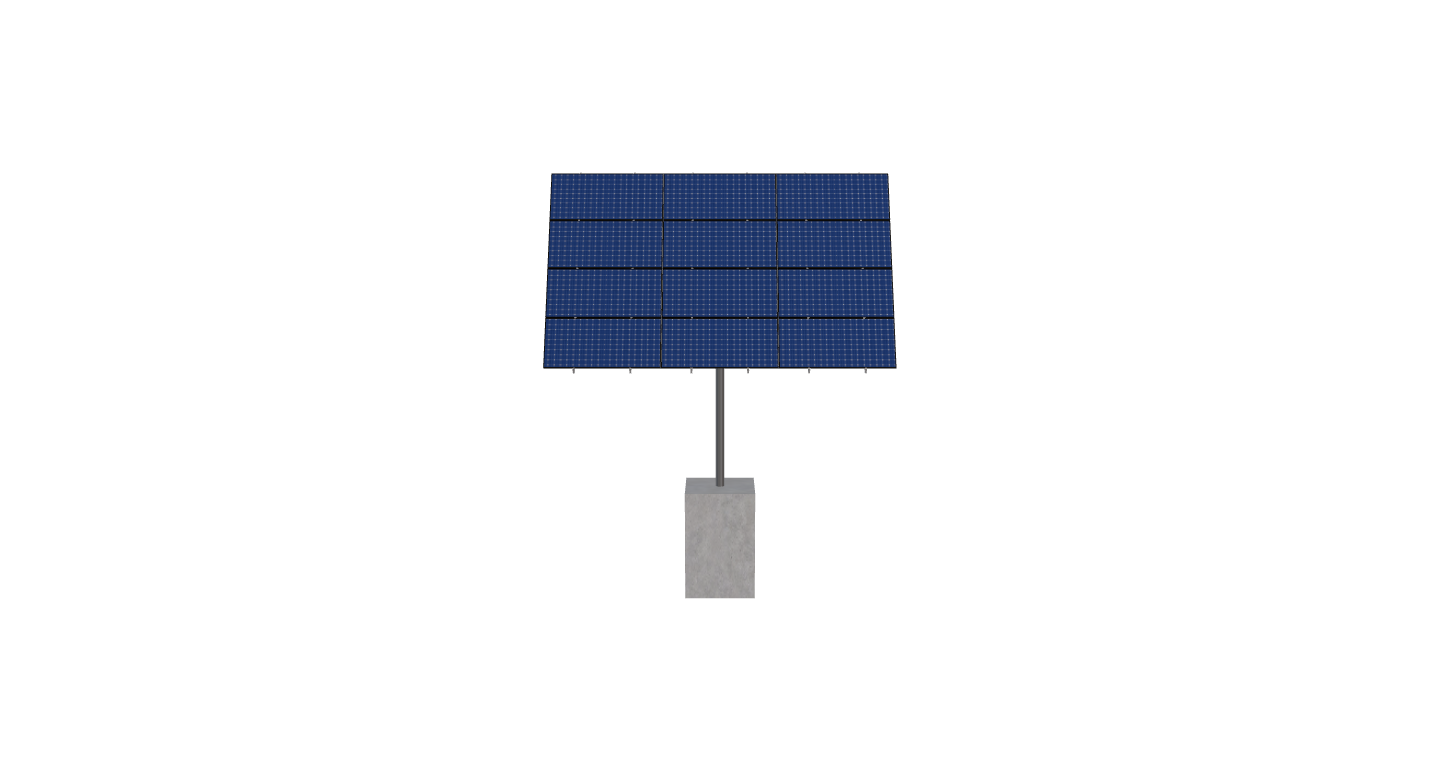

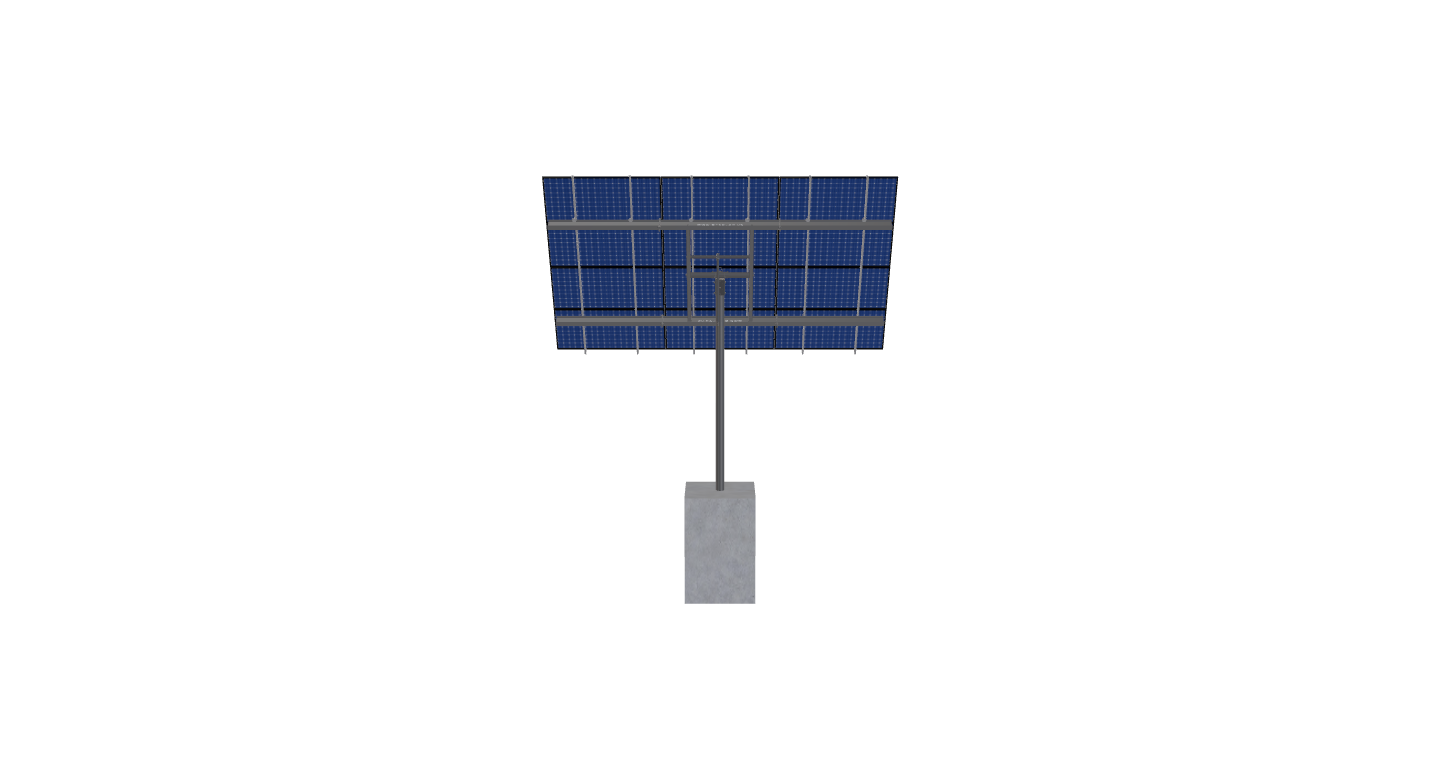

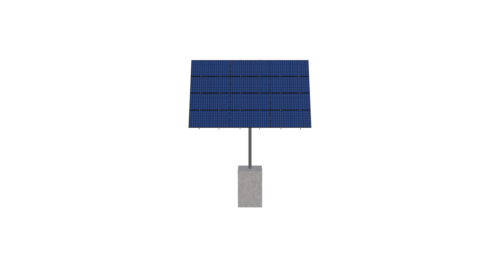

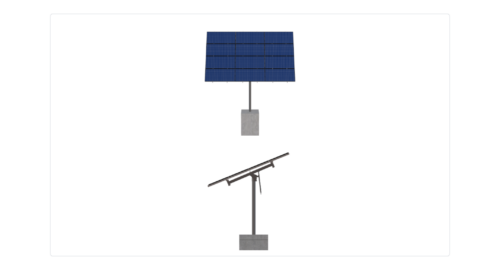

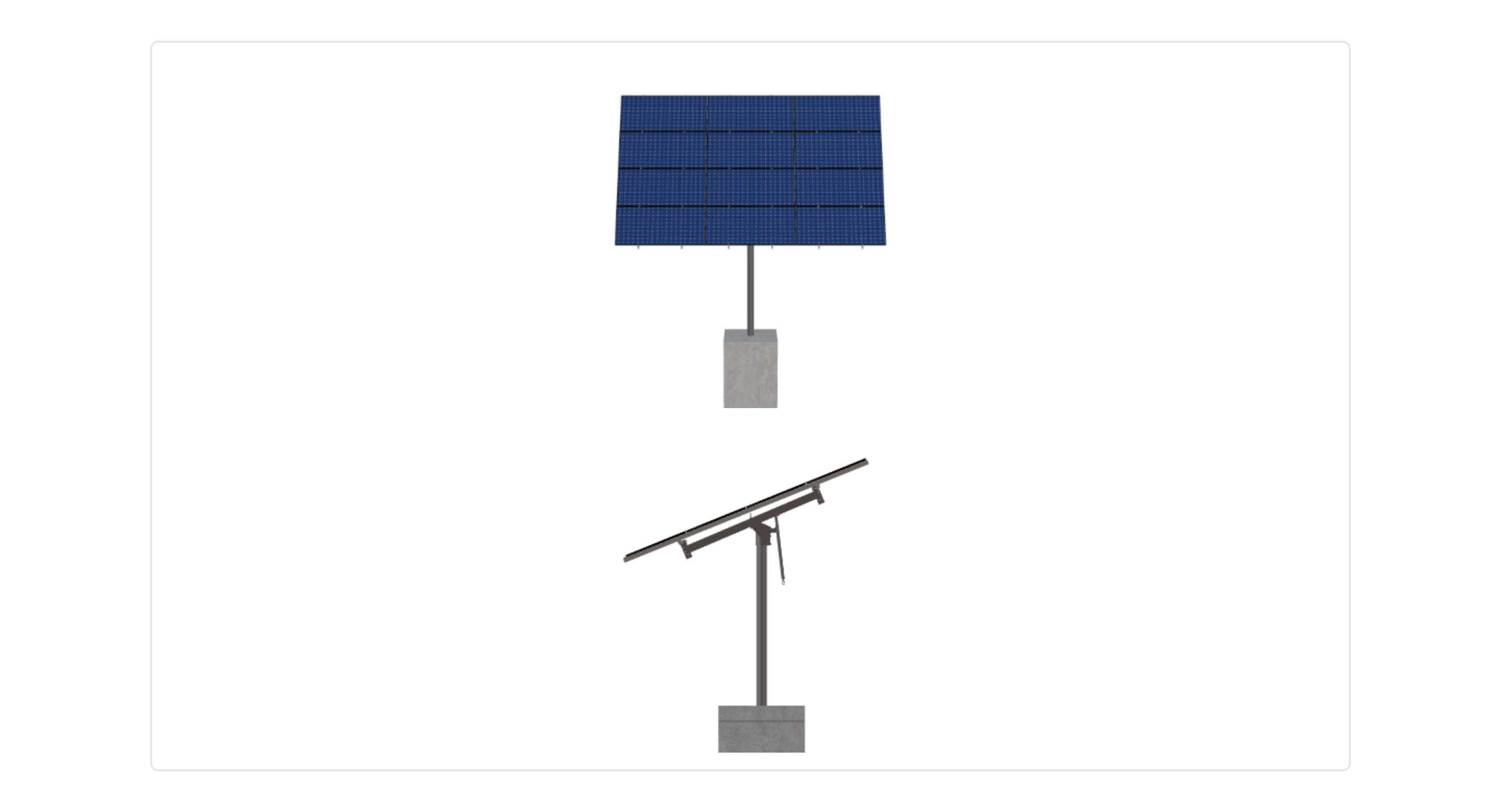

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87.3 inches by 41.2 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 1P-0-8TOP-SD-84-L-4Hx3W-EH0L Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87.3 inches by 41.2 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 799.16 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

1P-0-8TOP-SD-84-L-4HX3W-EH0L

DUTY SIZE

SD

POLE SIZE

8IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

1.00

POLE SPACING

0.00

POLE HEIGHT

14.02

WING SPAN

84.00

MAX FOUNDATION DEPTH

7.00

TILT ANGLE

60.00

CANTILEVER

258.00

GROUND CLEARANCE

8.00

NO POLES

1.00

MODULE AREA

306.84

ARRAY WIDTH

22.07

ARRAY HEIGHT

13.90

RAIL LENGTH

166.80

MODULE LENGTH

87.30

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

21.50

GROUND TO TOP

19.97

PROJECTED PANEL HEIGHT

11.89

WIND SPEED OVERRIDE

99.00

SNOW LOAD OVERRIDE

60.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

PROJECT ID

GUILDHALLVT-AGRIVOLTAICS-1P-12, MODS-QCELL485-REVA-JB

SITE ADDRESS

1475, VT-102, GUILDHALL, VT, 05905, USA

MODULE WIDTH

41.20

NUMBER ROWS

4.00

NUMBER COLUMNS

3.00

RISK CATEGORY

I

EXPOSURE CATEGORY

B

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

TOTAL PRICE

4410.70

TOTAL WEIGHT

799.16

TOTAL PALLETS

1.00
