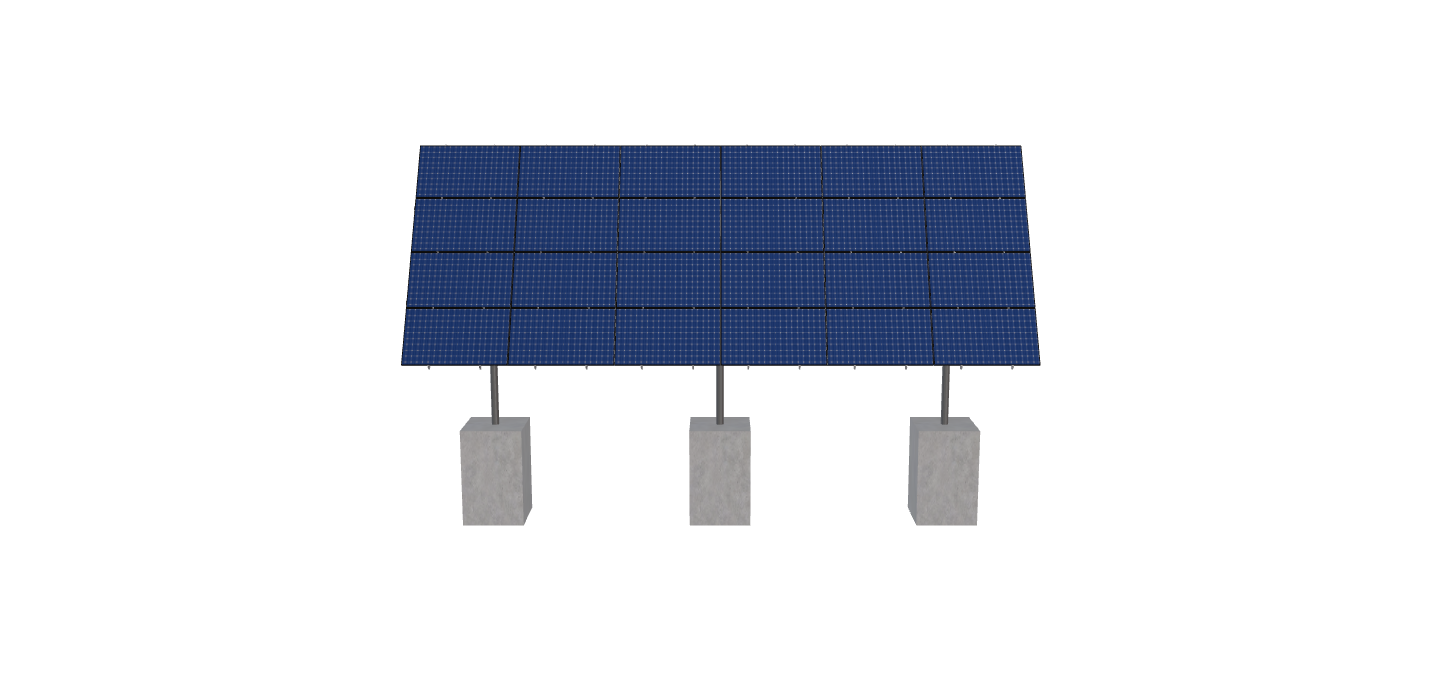

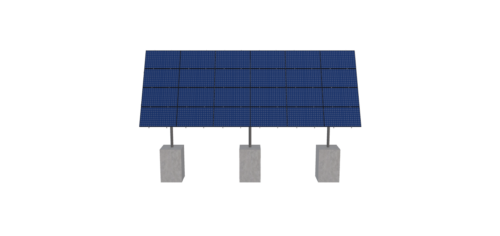

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 90 inches by 53 inches and an array layout of 6 wide by 4 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Haug Implement-RevD-JB
$11,119.56
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 90 inches by 53 inches and an array layout of 6 wide by 4 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1981.32 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-17-8TOP-SD-24-L-4HX6W-437D |
| DUTY SIZE | SD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 12.72 |
| WING SPAN | 24.00 |
| MAX FOUNDATION DEPTH | 7.25 |
| TILT ANGLE | 60.00 |
| CANTILEVER | 546.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 3.00 |
| MODULE AREA | 811.42 |
| ARRAY WIDTH | 45.50 |
| ARRAY HEIGHT | 17.83 |
| RAIL LENGTH | 214.00 |
| MODULE LENGTH | 90.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 45.50 |
| GROUND TO TOP | 20.37 |
| PROJECTED PANEL HEIGHT | 15.30 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| PROJECT ID | HAUG, IMPLEMENT-REVD-JB |
| SITE ADDRESS | US-12, WILLMAR, MN, USA |
| MODULE WIDTH | 53.00 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 6.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 11119.56 |
| TOTAL WEIGHT | 1981.32 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/012b0643-20ca-4a47-8a27-1b5137f655e5.pdf |
|
| ID | 4288.00 |
| 3D Solar link |
