HeraeusSolarPanelCarportsSFSCA-JB-RevI

$14,502.93

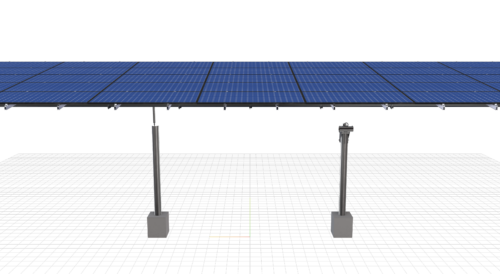

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 81.1 inches by 39.3 inches and an array layout of 9 wide by 5 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 81.1 inches by 39.3 inches and an array layout of 9 wide by 5 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

Additional information

Weight 2052 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

3P-22.5-6TOP-SD-45-L-5HX9W

DUTY SIZE

SD

POLE SIZE

6IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF_POLES

3

POLE SPACING

15

POLE HEIGHT

9.01

WING SPAN

45

FOUNDATION DEPTHS

[OBJECT, OBJECT]

TILT ANGLE

7

CANTILEVER

720

GROUND CLEARANCE

8

NO POLES

3

MODULE AREA

1021.1187499999999

ARRAY WIDTH

61.574999999999996

ARRAY HEIGHT

16.583333333333332

RAIL LENGTH

199

MODULE LENGTH

81.1

PASSED OVERHANG_CHECK

TRUE

MODULE WIDTH_GAP

0.5

MODULE LENGTH_GAP

1

TOTAL FRAME_LENGTH

60

GROUND TO_TOP

10.008305221530659

PROJECTED PANEL_HEIGHT

1.995610498259289

WIND SPEED_OVERRIDE

NULL

SNOW LOAD_OVERRIDE

NULL

DIRECT SNOW_LOAD

FALSE

PROJECT ID

HERAEUSSOLARPANELCARPORTSSFSCA-JB-REVI

SITE ADDRESS

15524, CARMENITA, RD, SANTA, FE, SPRINGS, CA, 90670, USA

MODULE WIDTH

39.3

NUMBER ROWS

5

NUMBER COLUMNS

9

MAIN PIPE_SECTION

2, 12GA

RISK CATEGORY

I

EXPOSURE CATEGORY

C

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48

CHECK RAILS

FALSE

TOTAL PRICE

14502.93

TOTAL WEIGHT

2886.96

TOTAL PALLETS

3

PDF

https://SKYCIVQUOTES.S3.AMAZONAWS.COM/F2D94D25-5911-4402-995C-EADCAD780184.PDF

ID

228
