This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.13 inches by 41.5 inches and an array layout of 11 wide by 4 high.
This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

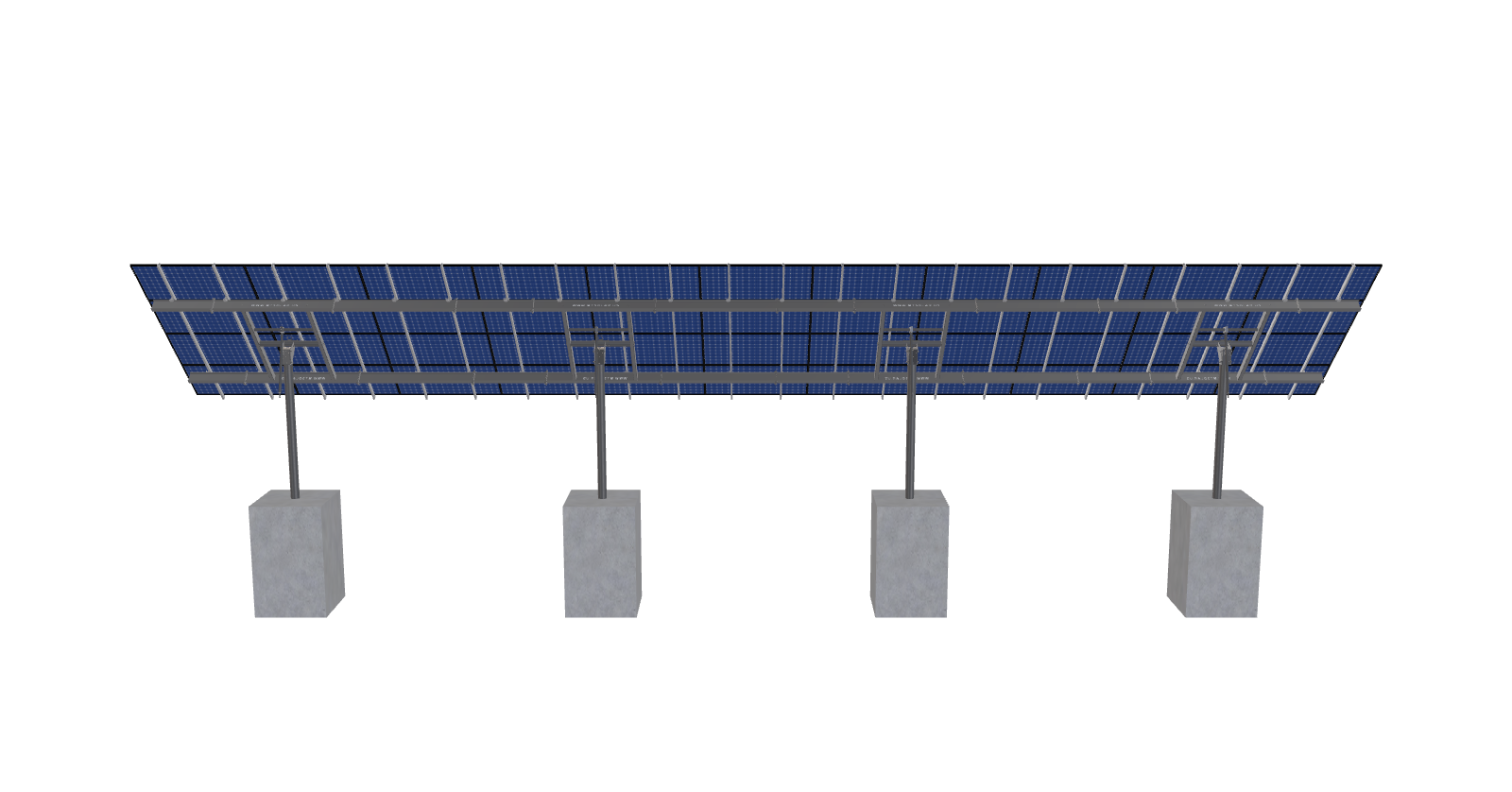

See 3D Model Here
Horse Canyon-v2-c
$18,942.74
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.13 inches by 41.5 inches and an array layout of 11 wide by 4 high.
This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
Weight | 3511.6000000000004 lbs |
---|---|
Dimensions | 90 × 24 × 24 in |
SKU CODE | 4P-19.75-8TOP-HD-45-L-4HX11W-GECA |
DUTY SIZE | HD |
POLE SIZE | 8IN, PIPE, SCH, 40 |
PRODUCT TYPE | BEAM |
NUMBER OF POLES | 4.00 |
POLE SPACING | 19.75 |
POLE HEIGHT | 9.95 |
WING SPAN | 45.00 |
MAX FOUNDATION DEPTH | 7.25 |
TILT ANGLE | 45.00 |
CANTILEVER | 891.00 |
GROUND CLEARANCE | 5.00 |
NO POLES | 4.00 |
MODULE AREA | 1066.84 |
ARRAY WIDTH | 76.20 |
ARRAY HEIGHT | 14.00 |
RAIL LENGTH | 168.00 |
MODULE LENGTH | 82.13 |
PASSED OVERHANG CHECK | TRUE |
MODULE WIDTH GAP | 0.50 |
MODULE LENGTH GAP | 1.00 |
TOTAL FRAME LENGTH | 74.25 |
GROUND TO TOP | 14.84 |
PROJECTED PANEL HEIGHT | 9.78 |
PROJECT ID | HORSE, CANYON-V2-C |
SITE ADDRESS | 85G54C6P+8V |
MODULE WIDTH | 41.50 |
NUMBER ROWS | 4.00 |
NUMBER COLUMNS | 11.00 |
RISK CATEGORY | I |
EXPOSURE CATEGORY | C |
FRAME DUTY OVERRIDE | AUTO |
POLE OVERRIDE | AUTO |
SOIL TYPE | SAND |
CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
FOUNDATION TYPE | SQUARE |
FOUNDATION SIZE | 48.00 |
CHECK RAILS | FALSE |
WIND SPEED OVERRIDE | 100.00 |
SNOW LOAD OVERRIDE | 55.00 |
DIRECT SNOW LOAD | FALSE |
ADD ANGLE BRACE | FALSE |
TOTAL PRICE | 18942.74 |
TOTAL WEIGHT | 3511.60 |
TOTAL PALLETS | 4.00 |
https://skycivquotes.s3.amazonaws.com/32292367-e421-4f81-94ed-d38063f0ec4d.pdf |
|
ID | 5924.00 |
3D Solar link |
