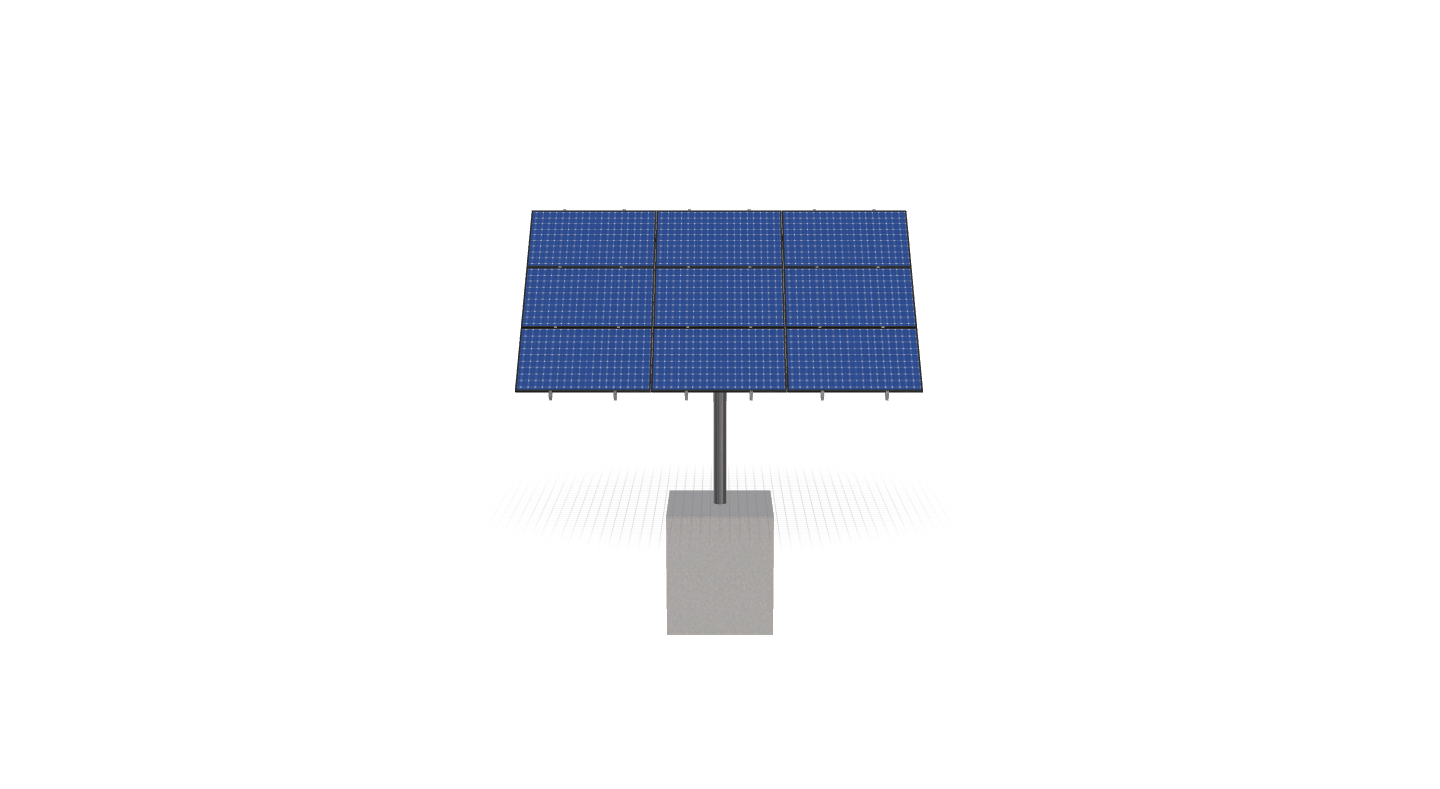

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 65.5 inches by 39.5 inches and an array layout of 3 wide by 3 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Jones-RevA
$3,495.41
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 65.5 inches by 39.5 inches and an array layout of 3 wide by 3 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 613.38 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-6TOP-SD-45-L-3HX3W-B9CC |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 8.54 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 5.25 |
| TILT ANGLE | 45.00 |
| CANTILEVER | 180.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 1.00 |
| MODULE AREA | 166.25 |
| ARRAY WIDTH | 16.63 |
| ARRAY HEIGHT | 10.00 |
| RAIL LENGTH | 120.00 |
| MODULE LENGTH | 65.50 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 15.00 |
| GROUND TO TOP | 12.03 |
| PROJECTED PANEL HEIGHT | 6.98 |
| PROJECT ID | JONES-REVA |
| SITE ADDRESS | 112, RAILROAD, AVE, PLAINS, MT, 59859, USA |
| MODULE WIDTH | 39.50 |
| NUMBER ROWS | 3.00 |
| NUMBER COLUMNS | 3.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 98.00 |
| SNOW LOAD OVERRIDE | 60.00 |
| DIRECT SNOW LOAD | FALSE |
| TOTAL PRICE | 3495.41 |
| TOTAL WEIGHT | 613.38 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/76c8b8ed-8abc-4634-af05-1248ae77b92e.pdf |
|
| ID | 619.00 |
| 3D Solar link |
