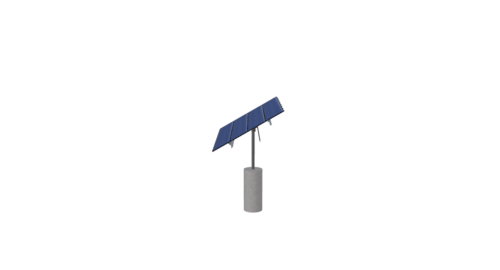

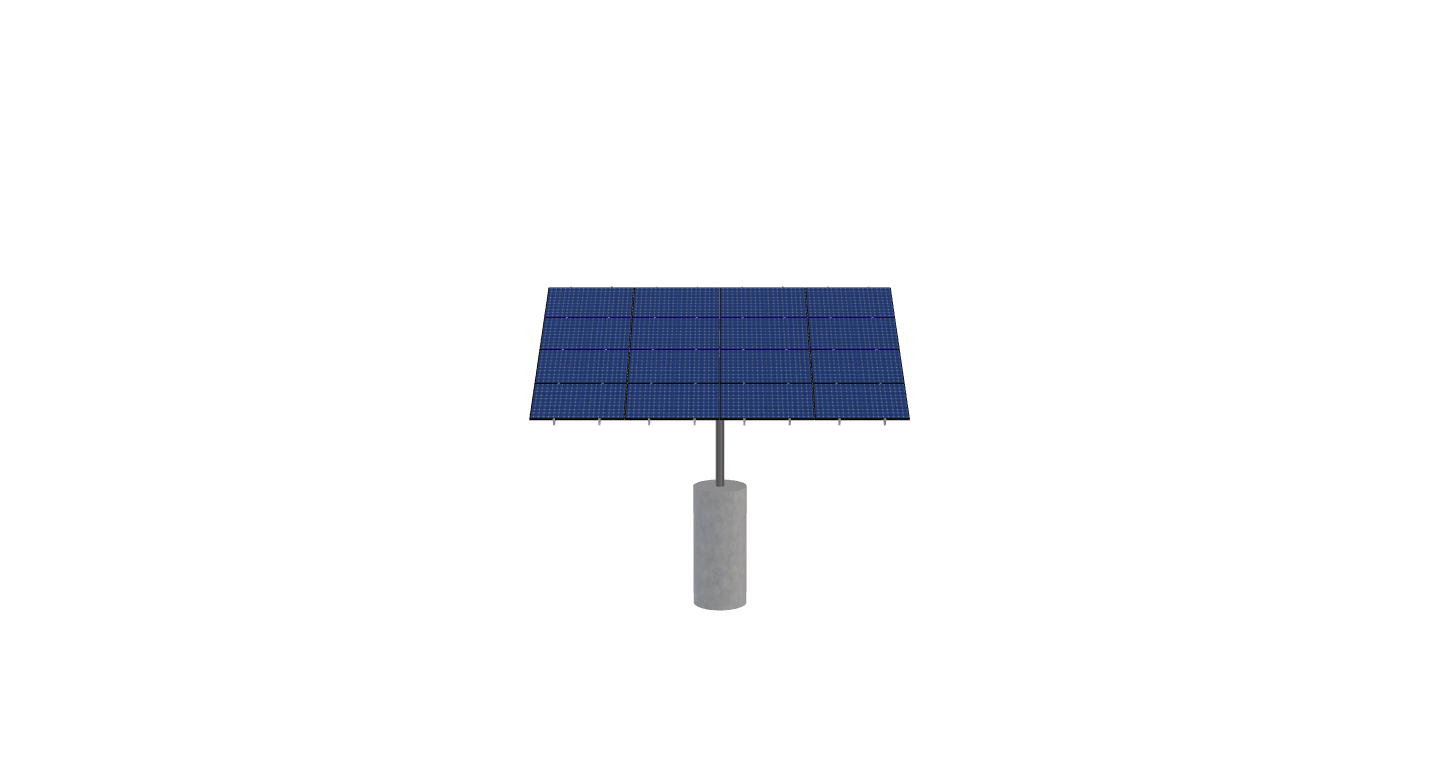

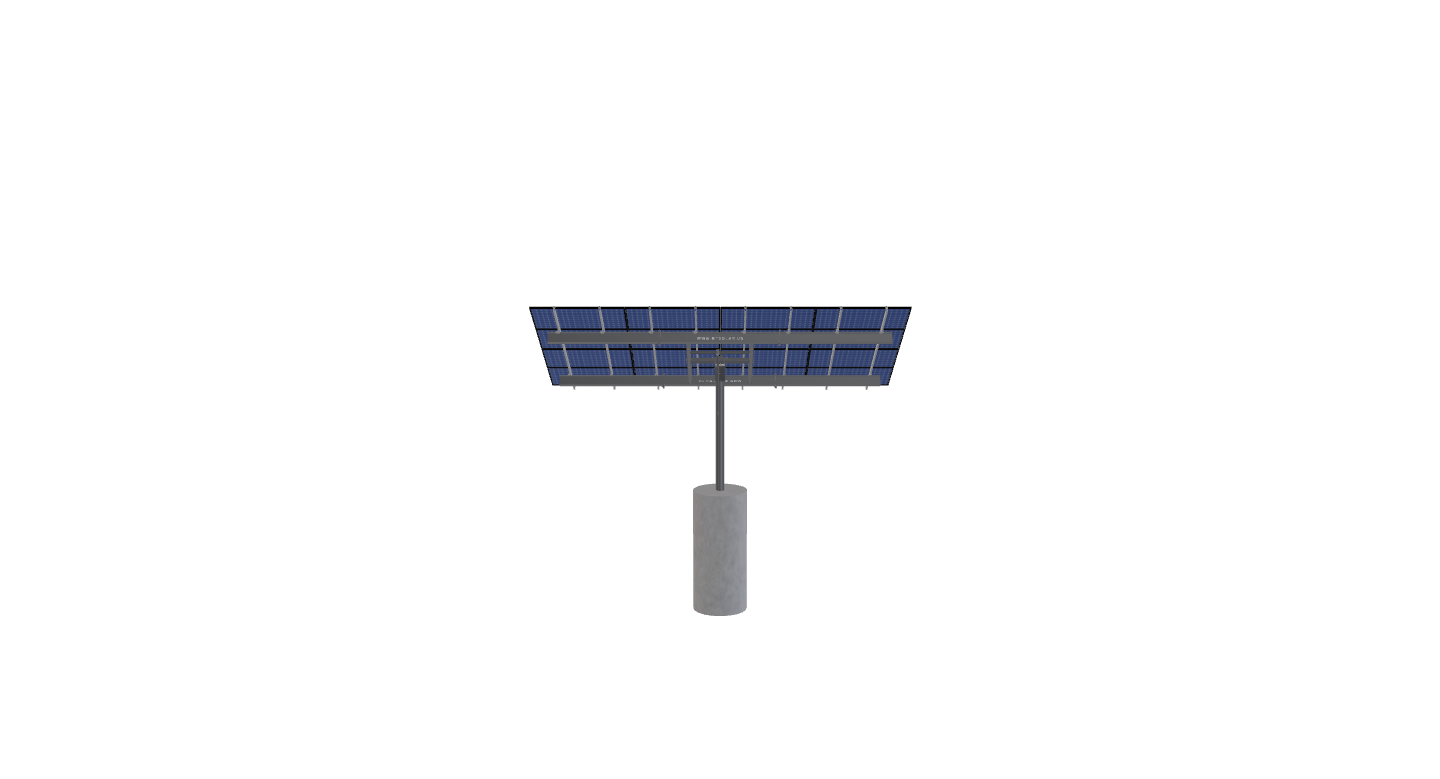

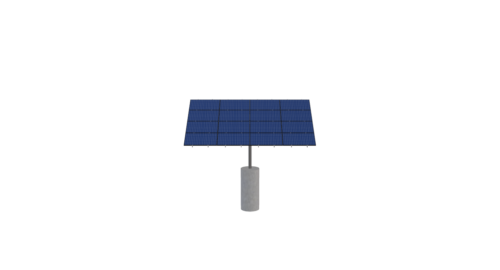

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69.4 inches by 41.3 inches and an array layout of 4 wide by 4 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Lan Vau – 30° – ExposureB -8in- JB
$4,721.22
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69.4 inches by 41.3 inches and an array layout of 4 wide by 4 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 836.38 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-8TOP-SD-84-L-4HX4W-74IF |
| DUTY SIZE | SD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 8.48 |
| WING SPAN | 84.00 |
| MAX FOUNDATION DEPTH | 8.00 |
| TILT ANGLE | 30.00 |
| CANTILEVER | 258.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 1.00 |
| MODULE AREA | 326.97 |
| ARRAY WIDTH | 23.47 |
| ARRAY HEIGHT | 13.93 |
| RAIL LENGTH | 167.20 |
| MODULE LENGTH | 69.40 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 21.50 |
| GROUND TO TOP | 11.92 |
| PROJECTED PANEL HEIGHT | 6.88 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| PROJECT ID | LAN, VAU, -, 30°, -, EXPOSUREB, -8IN-, JB |
| SITE ADDRESS | 27808, AR-74, HUNTSVILLE, AR, 72740, USA |
| MODULE WIDTH | 41.30 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 4.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | 8, 40 |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 36, ROUND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 4721.22 |
| TOTAL WEIGHT | 836.38 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/5d0d5647-3904-4e71-87f7-c06f2a94431e.pdf |
|
| ID | 5501.00 |
| 3D Solar link |
