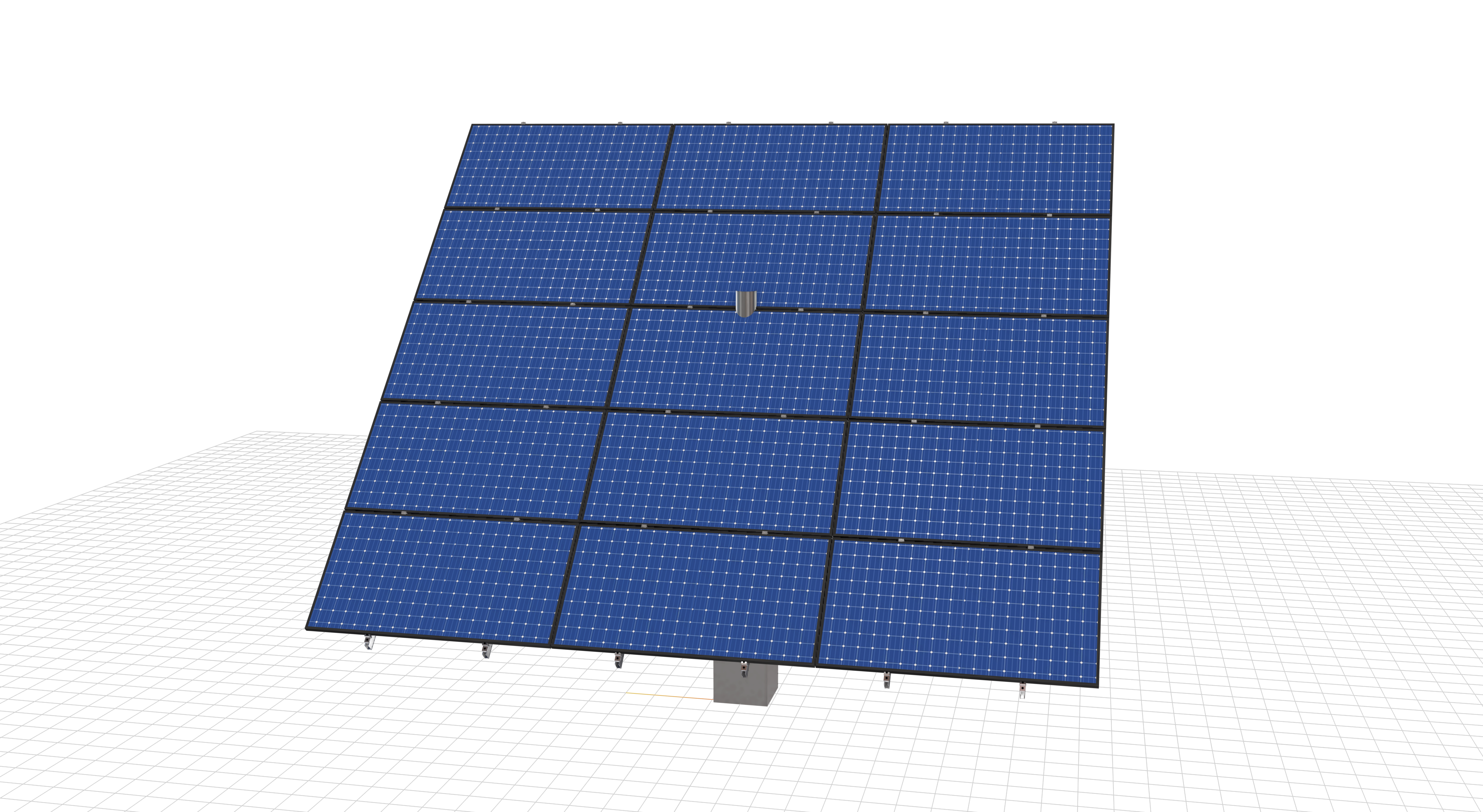

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74.8 inches by 40.9 inches and an array layout of 3 wide by 5 high.
This mount fits on 1 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
Lohman%7CRevB
$5,128.81
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74.8 inches by 40.9 inches and an array layout of 3 wide by 5 high.
This mount fits on 1 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
Additional information
| Weight | 671 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
https://solver.skyciv.com/temp/mergedpdf_qh03lre5f280cgos.php |
|
| SKU CODE | 1P-0-8TOP-HD-57-L-5Hx3W |
| DUTY SIZE | HD |
| POLE SIZE | 8in, Pipe, Sch, 80 |
| PRODUCT TYPE | Beam |
| NUMBER OF_POLES | 1 |
| POLE SPACING | 15 |
| POLE HEIGHT | 11.2 |
| WING SPAN | 57 |
| FOUNDATION DEPTHS | [object, Object] |
| TILT ANGLE | 46 |
| CANTILEVER | 204 |
| GROUND CLEARANCE | 5 |
| NO POLES | 1 |
| MODULE AREA | 326.8875 |
| ARRAY WIDTH | 18.95 |
| ARRAY HEIGHT | 17.25 |
| RAIL LENGTH | 207 |
| MODULE LENGTH | 74.8 |
| PASSED OVERHANG_CHECK | true |
| MODULE WIDTH_GAP | 0.5 |
| MODULE LENGTH_GAP | 1 |
| TOTAL FRAME_LENGTH | 17 |
| GROUND TO_TOP | 17.333680326639787 |
| PROJECTED PANEL_HEIGHT | 12.258749097437843 |
| WIND SPEED_OVERRIDE | 175 |
| SNOW LOAD_OVERRIDE | 55 |
| DIRECT SNOW_LOAD | false |
| PROJECT ID | Lohman, RevB |
| SITE ADDRESS | 2000, Co, Rd, 100, Ward, CO, 80481, USA |
| MODULE WIDTH | 40.9 |
| NUMBER ROWS | 5 |
| NUMBER COLUMNS | 3 |
| MAIN PIPE_SECTION | 2_12GA |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| SOIL TYPE | sand |
| FOUNDATION TYPE | Square |
| FOUNDATION SIZE | 48 |
| CHECK RAILS | false |
| TOTAL PRICE | 5128.81 |
| TOTAL WEIGHT | 1027.03 |
| TOTAL PALLETS | 1 |
| ID | 112 |
