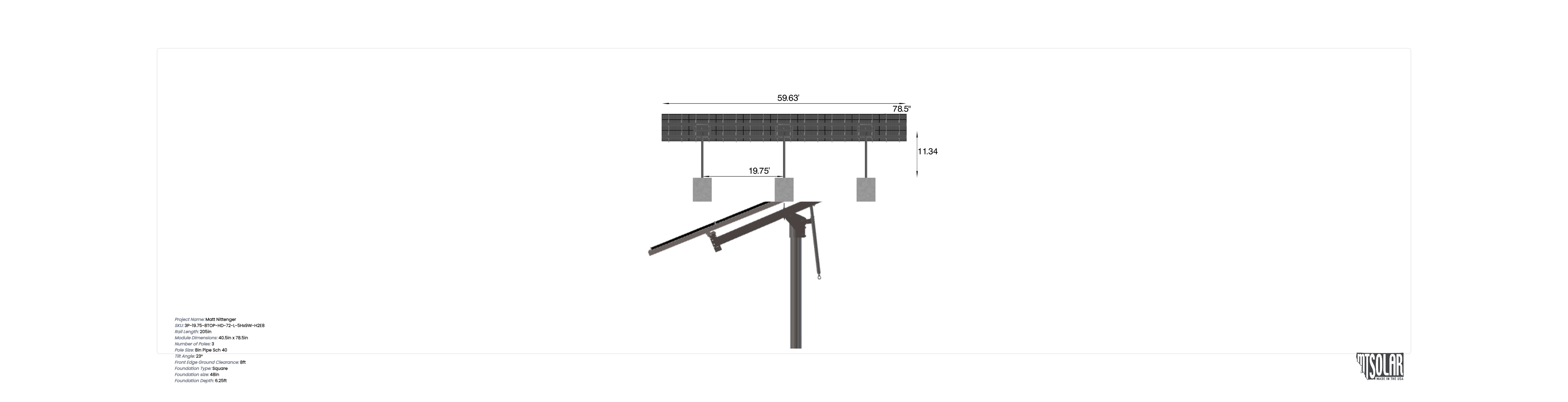

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 78.5 inches by 40.5 inches and an array layout of 9 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

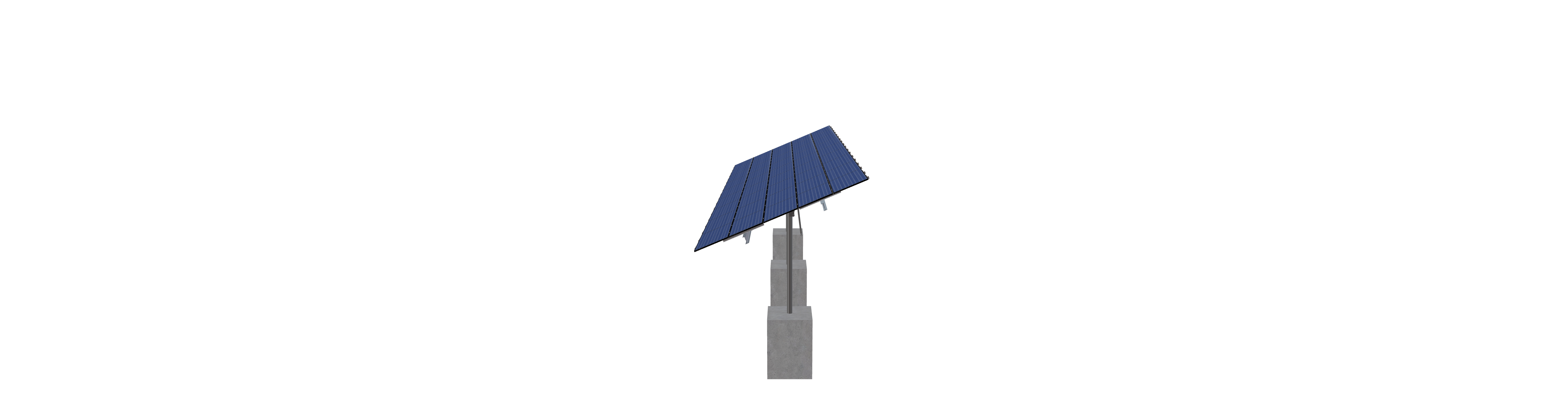

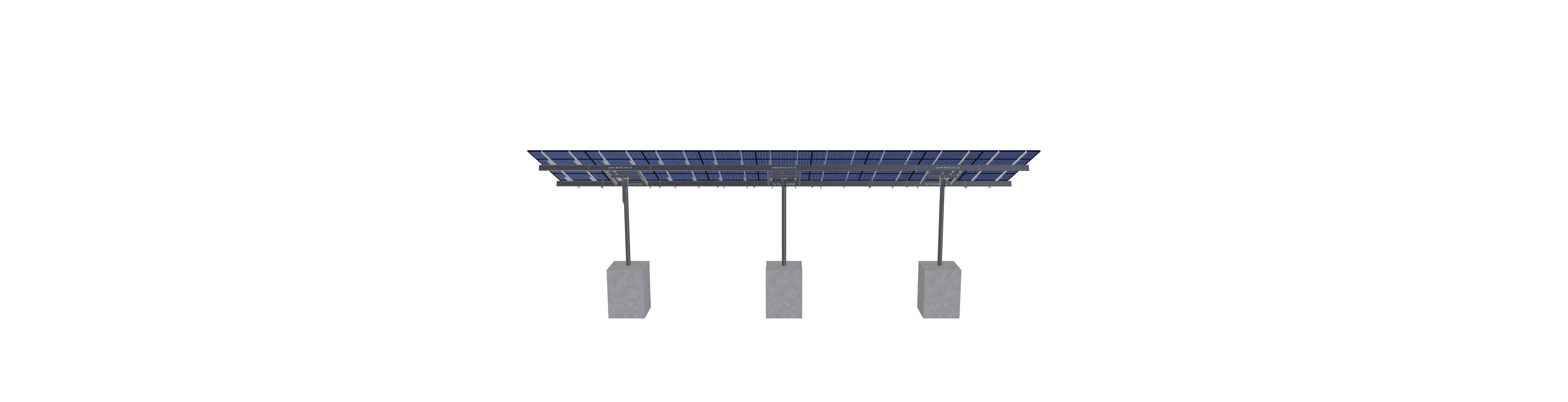

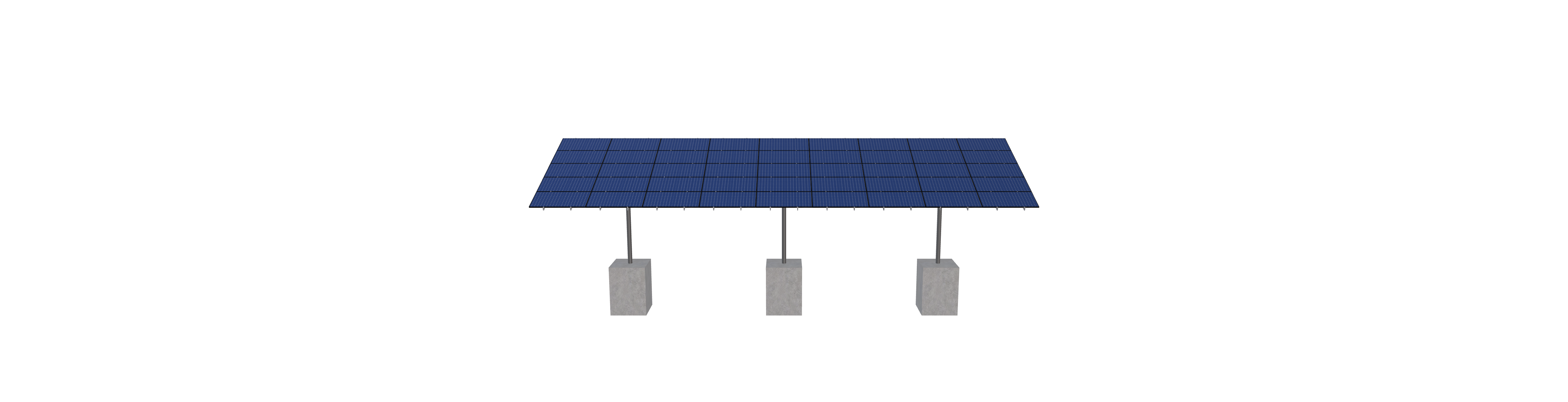

See 3D Model Here
Matt Nittenger
$16,302.30
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 78.5 inches by 40.5 inches and an array layout of 9 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
Weight | 3298.61 lbs |
---|---|
Dimensions | 90 × 24 × 24 in |
SKU CODE | 3P-19.75-8TOP-HD-72-L-5HX9W-H2E8 |
DUTY SIZE | HD |
POLE SIZE | 8IN, PIPE, SCH, 40 |
PRODUCT TYPE | BEAM |
NUMBER OF POLES | 3.00 |
POLE SPACING | 19.75 |
POLE HEIGHT | 11.34 |
WING SPAN | 72.00 |
MAX FOUNDATION DEPTH | 6.25 |
TILT ANGLE | 23.00 |
CANTILEVER | 708.00 |
GROUND CLEARANCE | 8.00 |
NO POLES | 3.00 |
MODULE AREA | 1018.59 |
ARRAY WIDTH | 59.63 |
ARRAY HEIGHT | 17.08 |
RAIL LENGTH | 205.00 |
MODULE LENGTH | 78.50 |
PASSED OVERHANG CHECK | TRUE |
MODULE WIDTH GAP | 0.50 |
MODULE LENGTH GAP | 1.00 |
TOTAL FRAME LENGTH | 59.00 |
GROUND TO TOP | 14.63 |
PROJECTED PANEL HEIGHT | 6.59 |
WIND SPEED OVERRIDE | NULL |
SNOW LOAD OVERRIDE | NULL |
DIRECT SNOW LOAD | FALSE |
ADD ANGLE BRACE | FALSE |
PROJECT ID | MATT, NITTENGER |
SITE ADDRESS | 3810, SKYHAWK, LN, VACAVILLE, CA, 95688, USA |
MODULE WIDTH | 40.50 |
NUMBER ROWS | 5.00 |
NUMBER COLUMNS | 9.00 |
RISK CATEGORY | I |
EXPOSURE CATEGORY | C |
FRAME DUTY OVERRIDE | AUTO |
POLE OVERRIDE | AUTO |
SOIL TYPE | SAND |
CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
FOUNDATION TYPE | SQUARE |
FOUNDATION SIZE | 48.00 |
CHECK RAILS | FALSE |
TOTAL PRICE | 16302.30 |
TOTAL WEIGHT | 3298.61 |
TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/ed1dfaa0-ddf3-4b15-9bfe-ef5c2e3ae961.pdf |
|
ID | 4620.00 |
3D Solar link |
