This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 90 inches by 42.25 inches and an array layout of 2 wide by 5 high.
This mount fits on 1 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

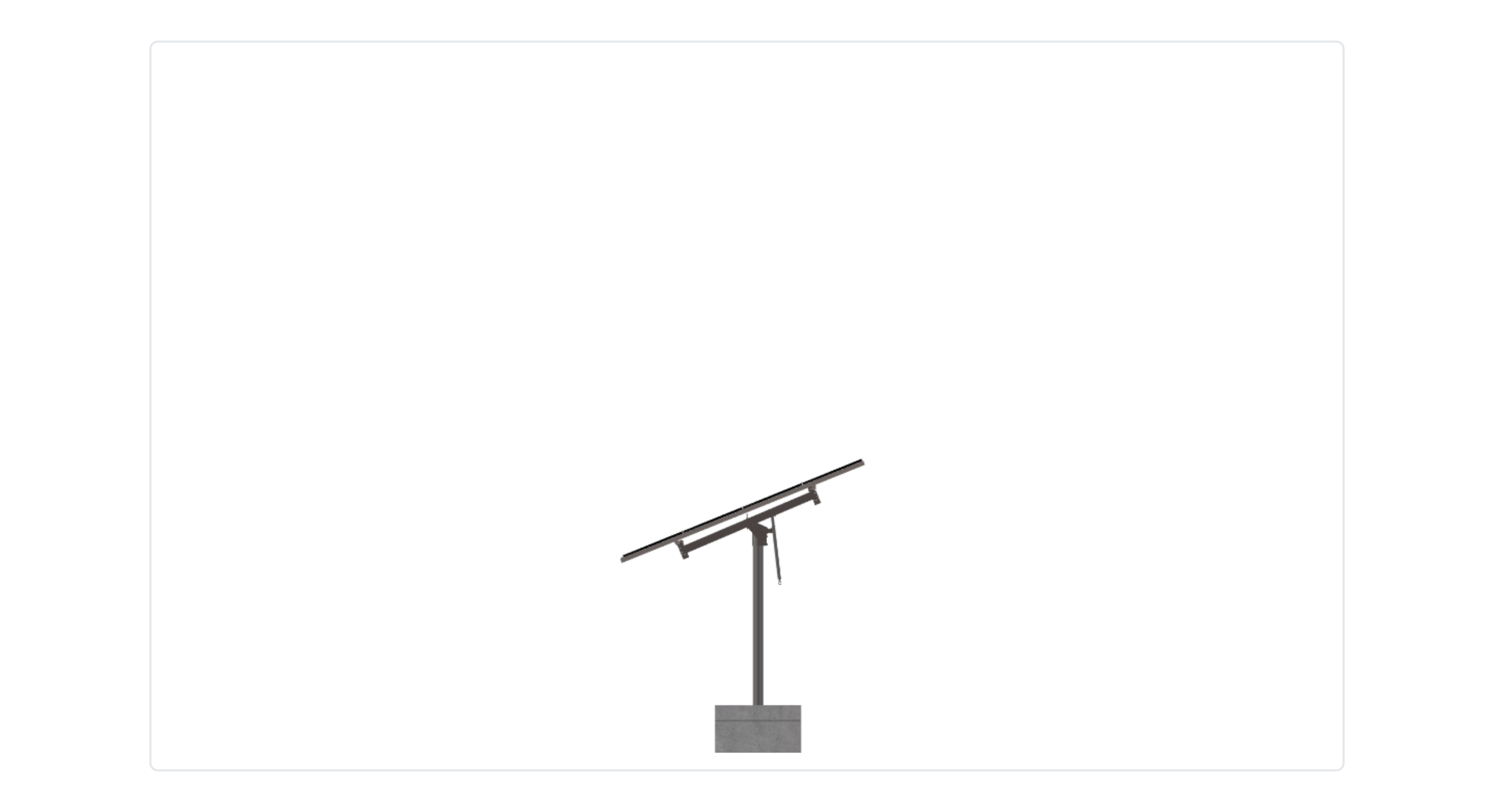

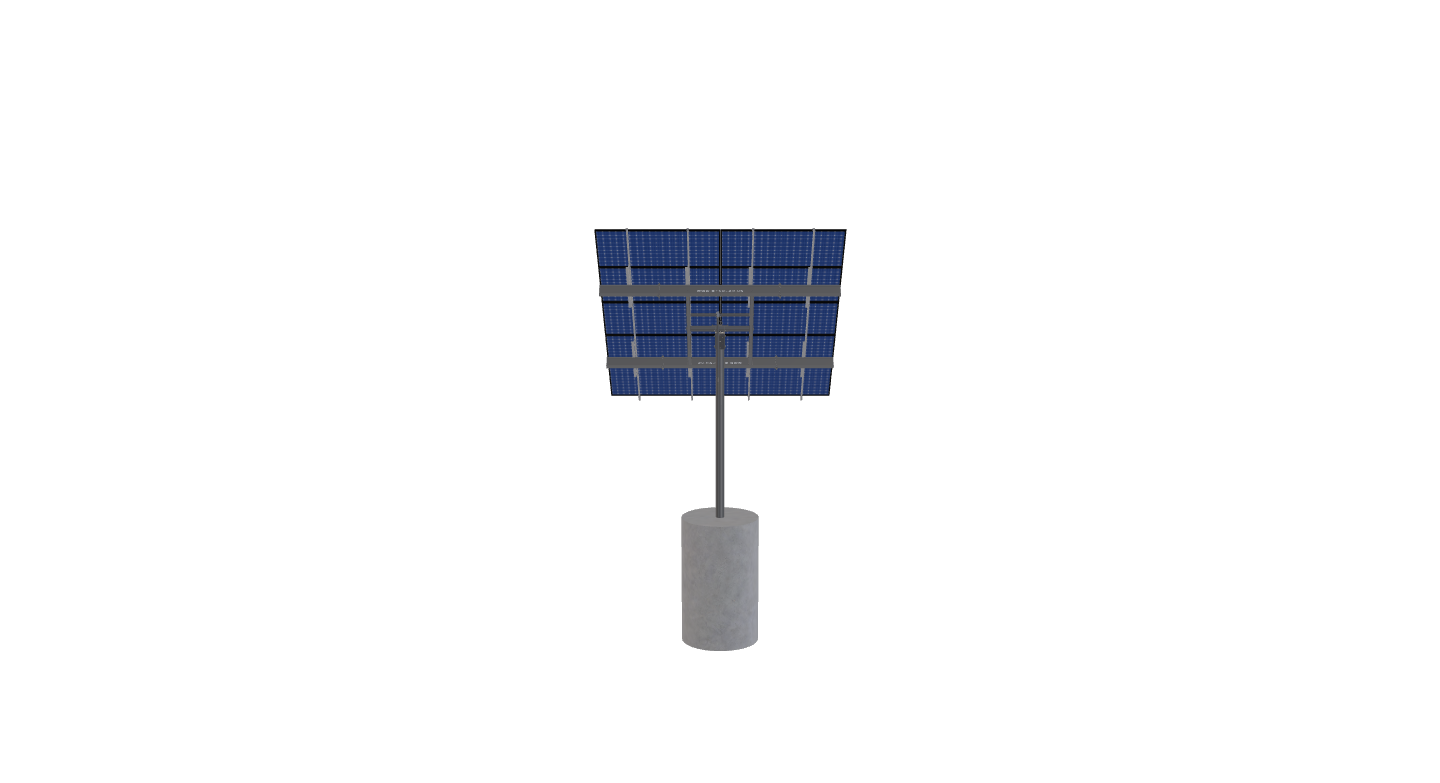

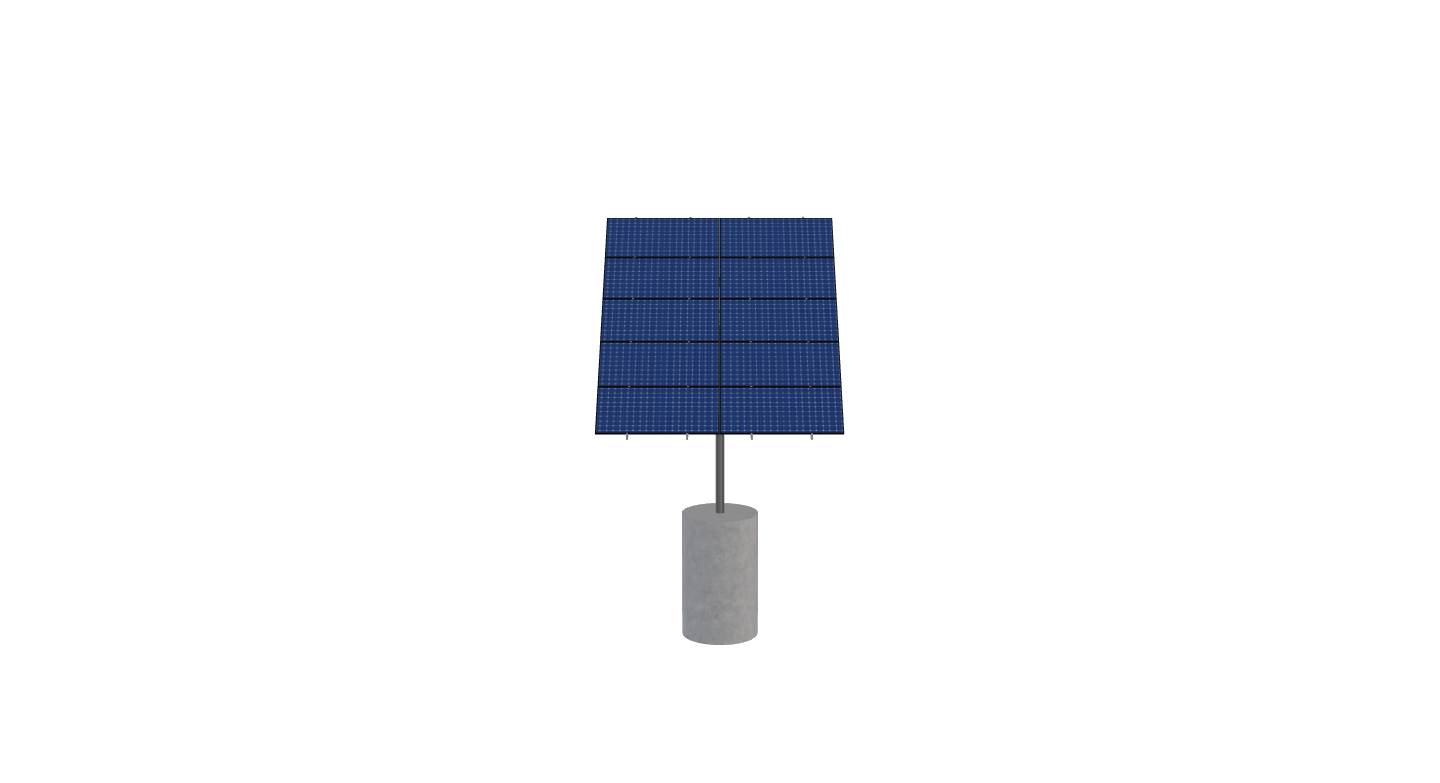

See 3D Model Here
MichaelBugola|Option1|2829|JB-RevBplus1in
$3,918.92
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 90 inches by 42.25 inches and an array layout of 2 wide by 5 high.
This mount fits on 1 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 754.88 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-6TOP-SD-45-L-5HX2W-0J8I |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 12.30 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 8.25 |
| TILT ANGLE | 45.00 |
| CANTILEVER | 180.00 |
| GROUND CLEARANCE | 6.00 |
| NO POLES | 1.00 |
| MODULE AREA | 270.16 |
| ARRAY WIDTH | 15.17 |
| ARRAY HEIGHT | 17.81 |
| RAIL LENGTH | 213.75 |
| MODULE LENGTH | 90.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 15.00 |
| GROUND TO TOP | 18.52 |
| PROJECTED PANEL HEIGHT | 12.45 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | 30.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| PROJECT ID | MICHAELBUGOLA, OPTION1, 2829, JB-REVBPLUS1IN |
| SITE ADDRESS | 3030, FS, RD, 73, PRESCOTT, AZ, 86303, USA |
| MODULE WIDTH | 42.25 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 2.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 54.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 3918.92 |
| TOTAL WEIGHT | 754.88 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/9f9f43fc-4ab6-442a-b1da-883ca57d30f4.pdf |
|
| ID | 3106.00 |
| 3D Solar link |
