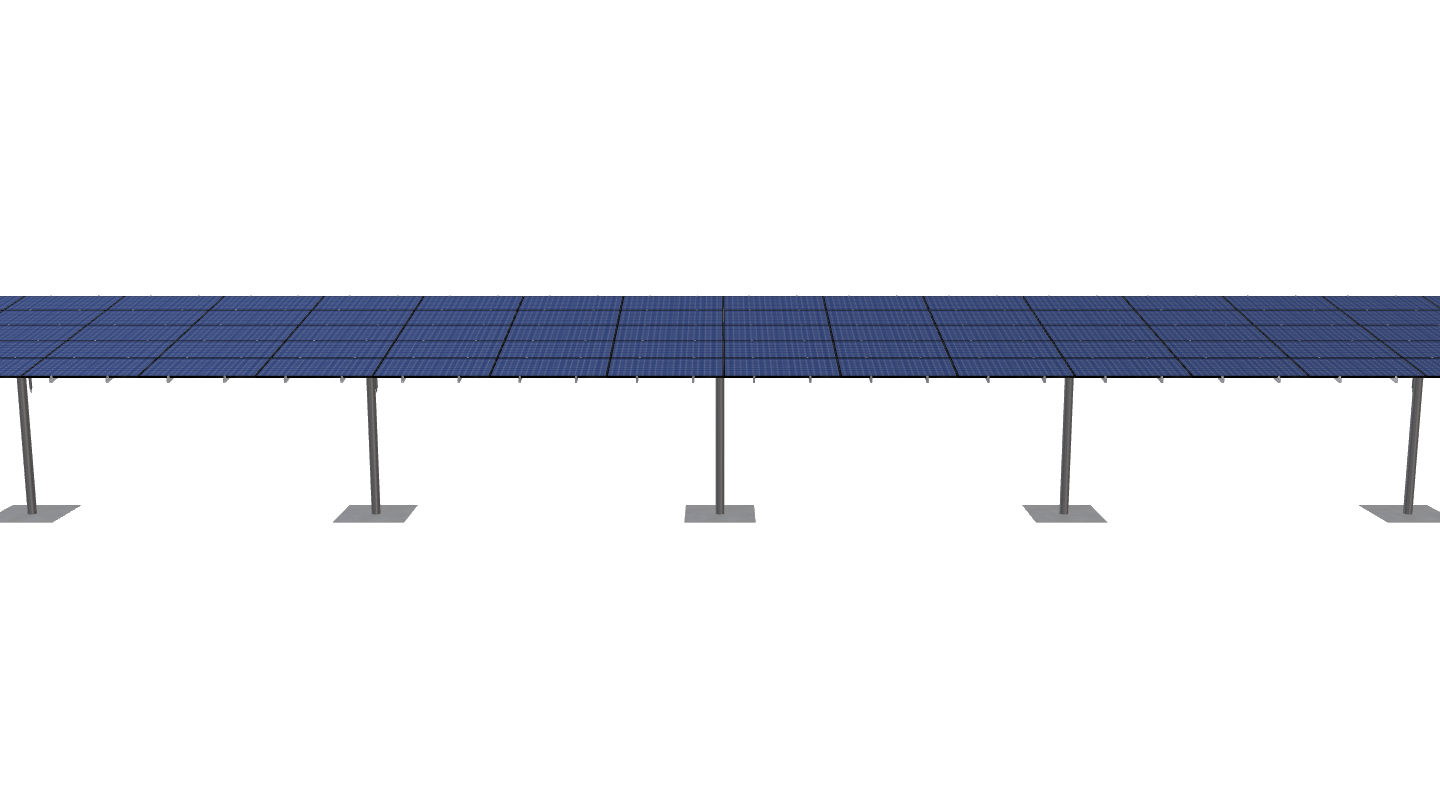

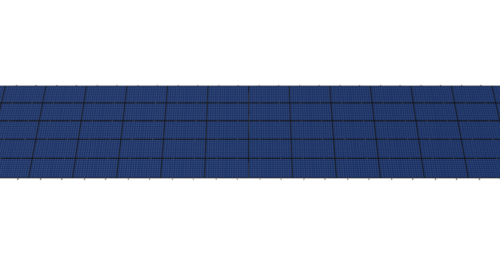

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 81.9 inches by 40.6 inches and an array layout of 18 wide by 5 high.

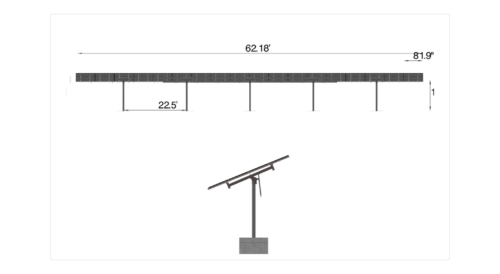

This mount fits on 3 – 8in%20Pipe%20Sch%2040 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
MillnerWinery-JB-RevD
$16,545.89
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 81.9 inches by 40.6 inches and an array layout of 18 wide by 5 high.
This mount fits on 3 – 8in%20Pipe%20Sch%2040 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 3358.61 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 5P-22.5-6TOP-SD-57-L-5HX18W-67GG |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 11.16 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 0.00 |
| TILT ANGLE | 10.00 |
| CANTILEVER | 744.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 5.00 |
| MODULE AREA | 1064.75 |
| ARRAY WIDTH | 62.18 |
| ARRAY HEIGHT | 17.13 |
| RAIL LENGTH | 205.50 |
| MODULE LENGTH | 81.90 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 62.00 |
| GROUND TO TOP | 17.24 |
| PROJECTED PANEL HEIGHT | 12.17 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | MILLNERWINERY-JB-REVD |
| SITE ADDRESS | 5072, BENSON, RD, UNION, CITY, CA, USA |
| MODULE WIDTH | 40.60 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 18.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 16545.89 |
| TOTAL WEIGHT | 3358.61 |
| TOTAL PALLETS | 3.00 |
https%3A%2F%2Fskycivquotes.s3.amazonaws.com%2F1a02fac1-a26b-458d-a1cb-c8613c3be689.pdf |
|
| ID | 2203.00 |
| 3D Solar link |
