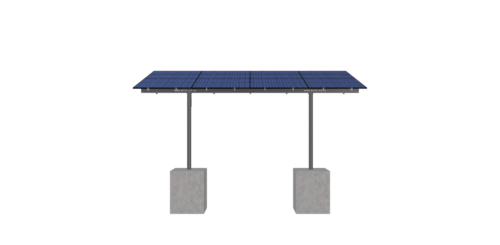

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87 inches by 41.1 inches and an array layout of 4 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
: Monika Chase 16 Panel Car Port
$9,095.58
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87 inches by 41.1 inches and an array layout of 4 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1679.58 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-17-6TOP-XD-24-L-4HX4W-58CF |
| DUTY SIZE | XD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 11.79 |
| WING SPAN | 24.00 |
| MAX FOUNDATION DEPTH | 5.75 |
| TILT ANGLE | 15.00 |
| CANTILEVER | 342.00 |
| GROUND CLEARANCE | 10.00 |
| NO POLES | 2.00 |
| MODULE AREA | 406.76 |
| ARRAY WIDTH | 29.33 |
| ARRAY HEIGHT | 13.87 |
| RAIL LENGTH | 166.40 |
| MODULE LENGTH | 87.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 28.50 |
| GROUND TO TOP | 13.57 |
| PROJECTED PANEL HEIGHT | 3.55 |
| PROJECT ID | :, MONIKA, CHASE, 16, PANEL, CAR, PORT |
| SITE ADDRESS | 98, CROCKETT, TRAIL, WARD, CO, 80481, USA |
| MODULE WIDTH | 41.10 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 4.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 170.00 |
| SNOW LOAD OVERRIDE | 55.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | TRUE |
| TOTAL PRICE | 9095.58 |
| TOTAL WEIGHT | 1679.58 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/8209f50e-3314-4b3f-93e4-6dda2520ec3e.pdf |
|
| ID | 1897.00 |
| CAD URL | |
| 3D Solar link |
