This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 79 inches by 39 inches and an array layout of 8 wide by 3 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

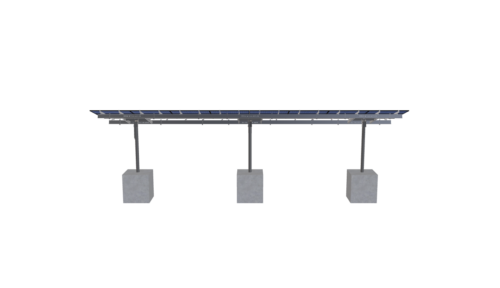

See 3D Model Here
MTSOLAR_5CHB1J9H8791A
$14,677.52
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 79 inches by 39 inches and an array layout of 8 wide by 3 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2750.21 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-19.75-6TOP-XD-24-L-3HX8W-FAD9 |
| DUTY SIZE | XD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 9.28 |
| WING SPAN | 24.00 |
| MAX FOUNDATION DEPTH | 5.00 |
| TILT ANGLE | 15.00 |
| CANTILEVER | 612.00 |
| GROUND CLEARANCE | 8.00 |
| NO POLES | 3.00 |
| MODULE AREA | 526.67 |
| ARRAY WIDTH | 53.33 |
| ARRAY HEIGHT | 9.88 |
| RAIL LENGTH | 118.50 |
| MODULE LENGTH | 79.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 51.00 |
| GROUND TO TOP | 10.54 |
| PROJECTED PANEL HEIGHT | 2.52 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| PROJECT ID | MTSOLAR, 5CHB1J9H8791A |
| SITE ADDRESS | MCLAUGHLIN, SD, 57642, USA |
| MODULE WIDTH | 39.00 |
| NUMBER ROWS | 3.00 |
| NUMBER COLUMNS | 8.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | XD |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 14677.52 |
| TOTAL WEIGHT | 2750.21 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/5f211a0b-7de1-4612-ad1d-cb96912eab75.pdf |
|
| ID | 6311.00 |
| 3D Solar link |
