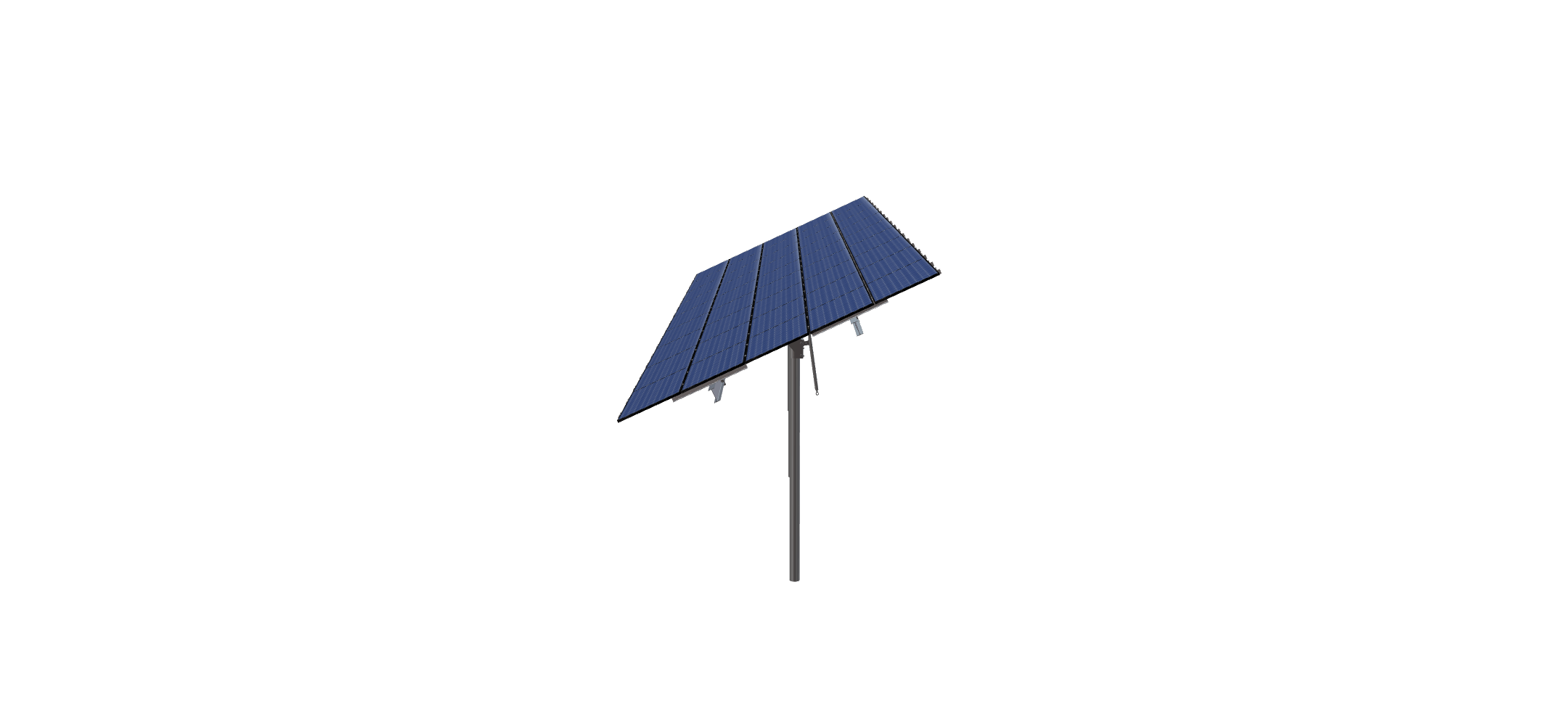

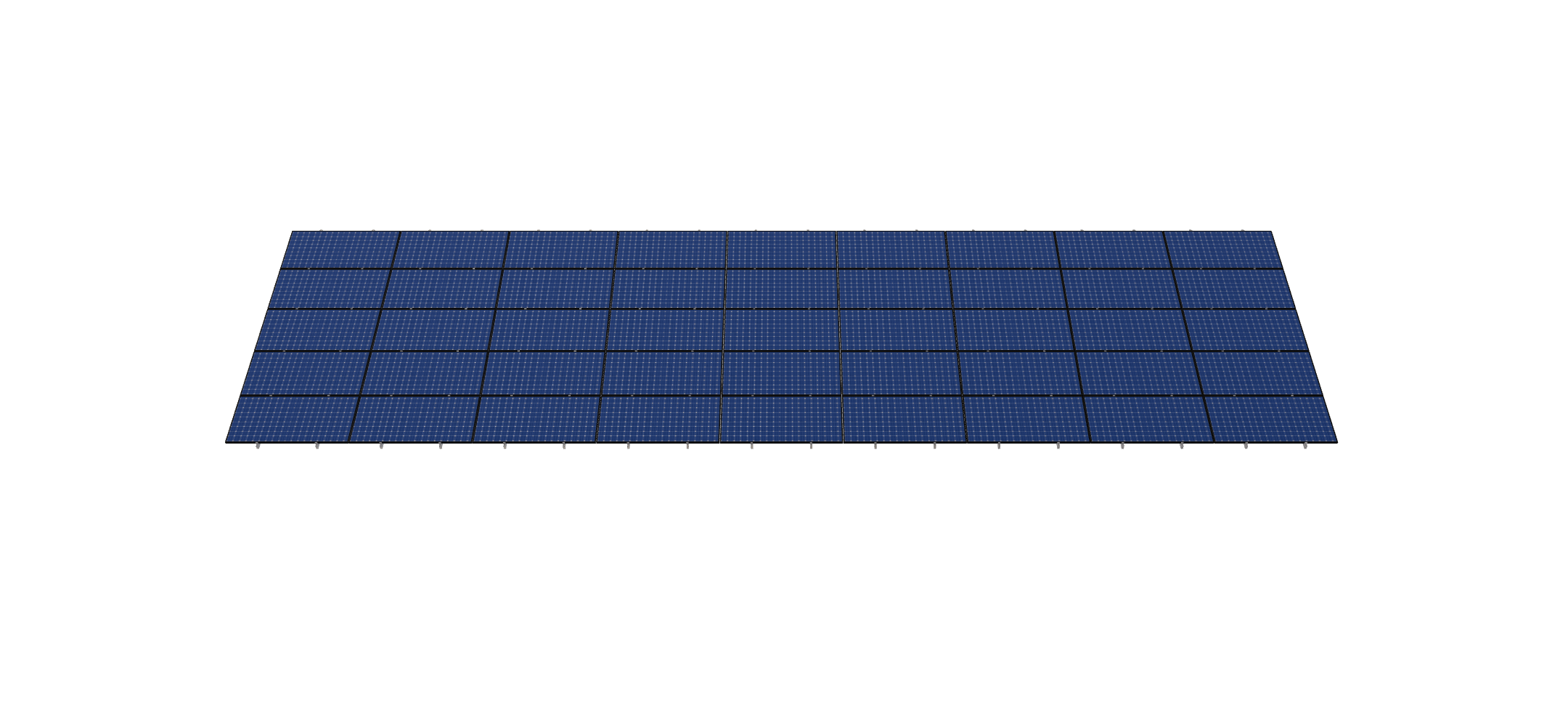

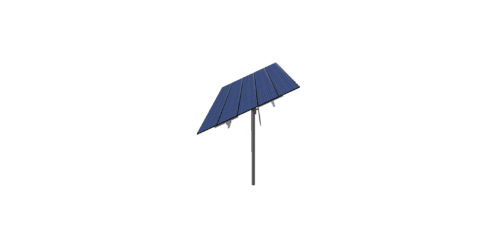

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.52 inches by 40.91 inches and an array layout of 9 wide by 5 high.

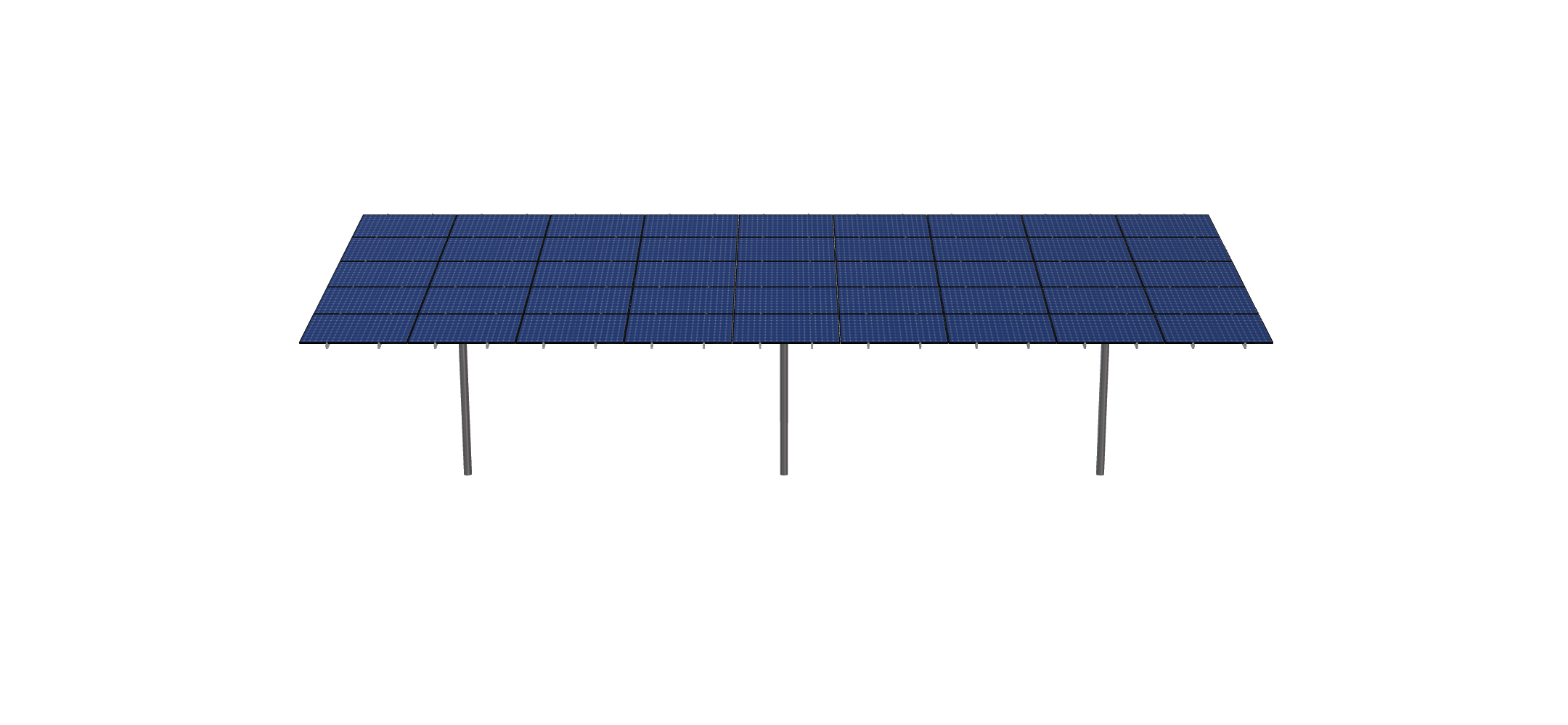

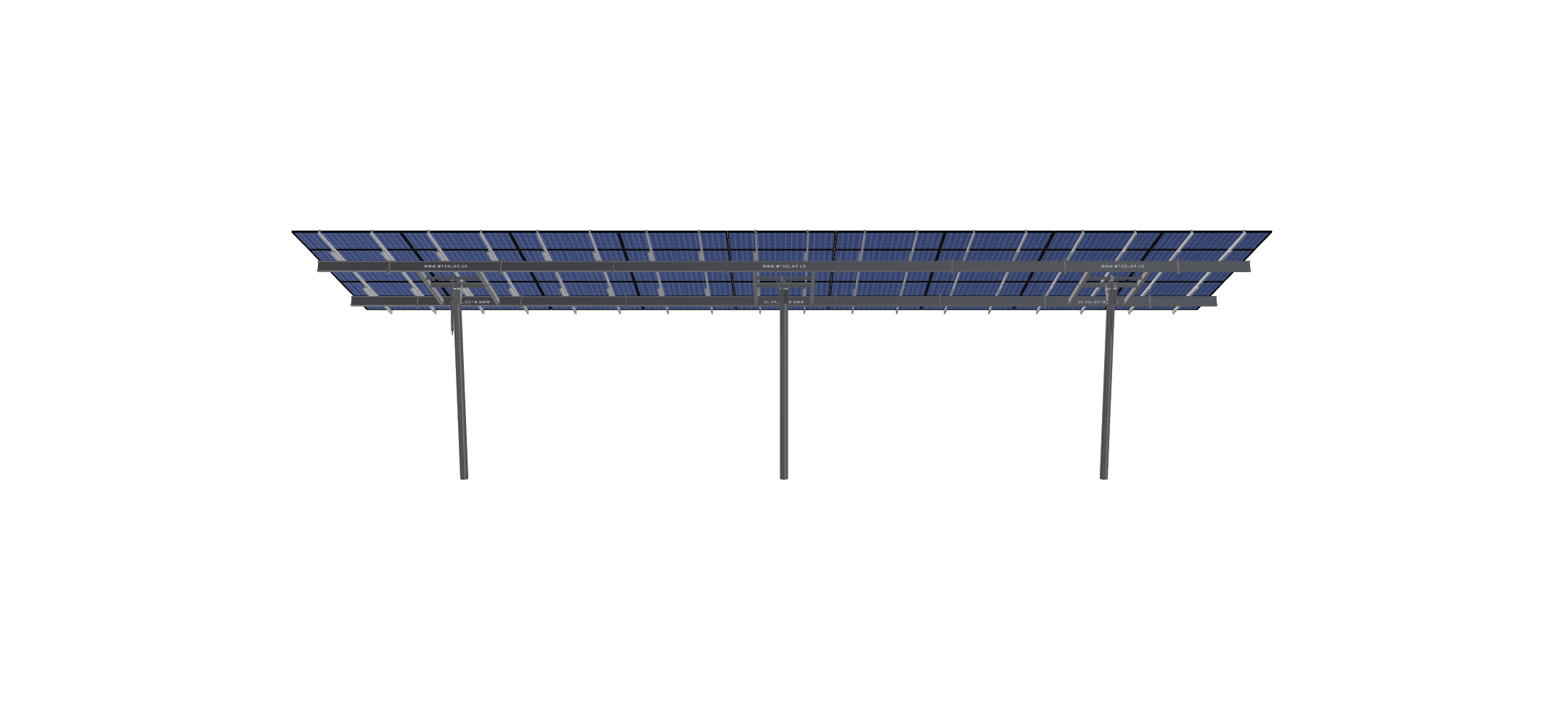

This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Mulberry-JB-RevA
$16,545.89
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.52 inches by 40.91 inches and an array layout of 9 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
Weight | 3358.61 lbs |
---|---|
Dimensions | 90 × 24 × 24 in |
SKU CODE | 3P-22.5-8TOP-HD-57-L-5HX9W-5ID6 |
DUTY SIZE | HD |
POLE SIZE | 8IN, PIPE, SCH, 40 |
PRODUCT TYPE | BEAM |
NUMBER OF POLES | 3.00 |
POLE SPACING | 22.50 |
POLE HEIGHT | 13.65 |
WING SPAN | 57.00 |
MAX FOUNDATION DEPTH | 8.75 |
TILT ANGLE | 25.00 |
CANTILEVER | 744.00 |
GROUND CLEARANCE | 10.00 |
NO POLES | 3.00 |
MODULE AREA | 1080.80 |
ARRAY WIDTH | 62.64 |
ARRAY HEIGHT | 17.25 |
RAIL LENGTH | 207.05 |
MODULE LENGTH | 82.52 |
PASSED OVERHANG CHECK | TRUE |
MODULE WIDTH GAP | 0.50 |
MODULE LENGTH GAP | 1.00 |
TOTAL FRAME LENGTH | 62.00 |
GROUND TO TOP | 17.25 |
PROJECTED PANEL HEIGHT | 7.20 |
WIND SPEED OVERRIDE | NULL |
SNOW LOAD OVERRIDE | NULL |
DIRECT SNOW LOAD | FALSE |
PROJECT ID | MULBERRY-JB-REVA |
SITE ADDRESS | 190, MULBERRY, SCHOOL, RD, NORTH, WILKESBORO, NC, 28659, USA |
MODULE WIDTH | 40.91 |
NUMBER ROWS | 5.00 |
NUMBER COLUMNS | 9.00 |
RISK CATEGORY | I |
EXPOSURE CATEGORY | B |
FRAME DUTY OVERRIDE | HD |
POLE OVERRIDE | 8, 40 |
SOIL TYPE | SAND |
CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
FOUNDATION TYPE | ROUND |
FOUNDATION SIZE | 48.00 |
CHECK RAILS | FALSE |
TOTAL PRICE | 16545.89 |
TOTAL WEIGHT | 3358.61 |
TOTAL PALLETS | 3.00 |
