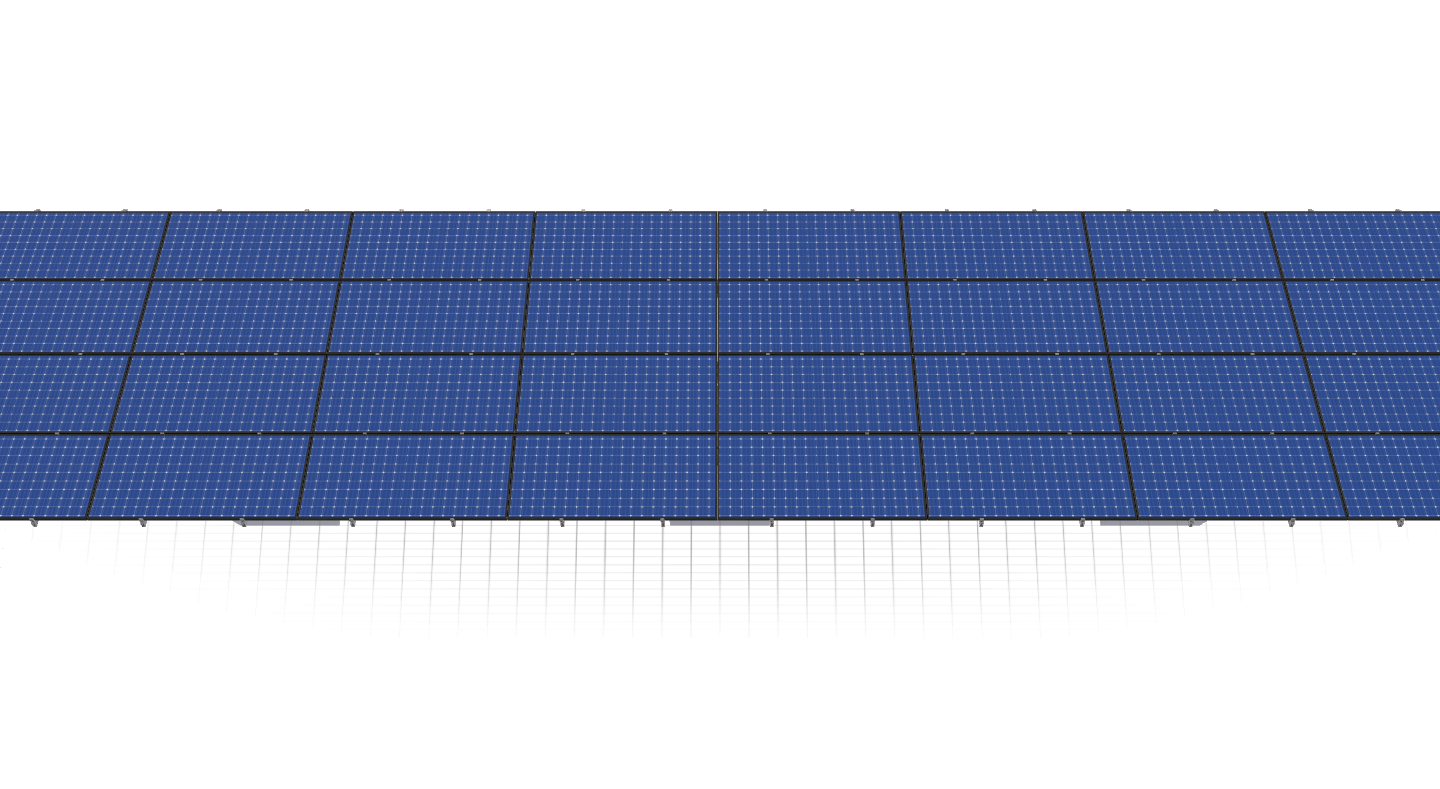

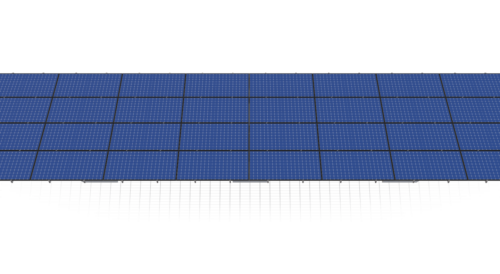

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 83 inches by 41.26 inches and an array layout of 8 wide by 4 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
SolarFarmLLC-RevA
$15,429.06
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 83 inches by 41.26 inches and an array layout of 8 wide by 4 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2892.6099999999997 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-19.75-6TOP-XD-45-L-4HX8W-D79H |
| DUTY SIZE | XD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 10.38 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 6.00 |
| TILT ANGLE | 20.00 |
| CANTILEVER | 654.00 |
| GROUND CLEARANCE | 8.00 |
| NO POLES | 3.00 |
| MODULE AREA | 779.52 |
| ARRAY WIDTH | 56.00 |
| ARRAY HEIGHT | 13.92 |
| RAIL LENGTH | 167.04 |
| MODULE LENGTH | 83.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 54.50 |
| GROUND TO TOP | 12.73 |
| PROJECTED PANEL HEIGHT | 4.70 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | SOLARFARMLLC-REVA |
| SITE ADDRESS | 1124, ATLANTIC, AVE, MORRIS, MN, 56267, USA |
| MODULE WIDTH | 41.26 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 8.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 15429.06 |
| TOTAL WEIGHT | 2892.61 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/500fc9bb-803c-432f-ac83-a23063108eab.pdf |
|
| ID | 544.00 |
| 3D Solar link |
