This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 38.6 inches by 23.1 inches and an array layout of 5 wide by 4 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

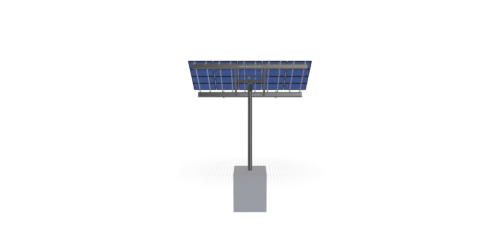

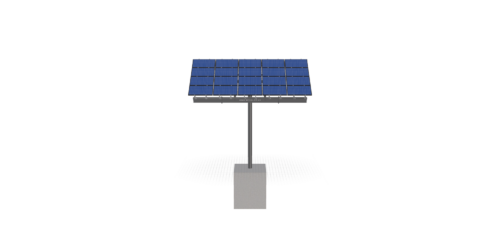

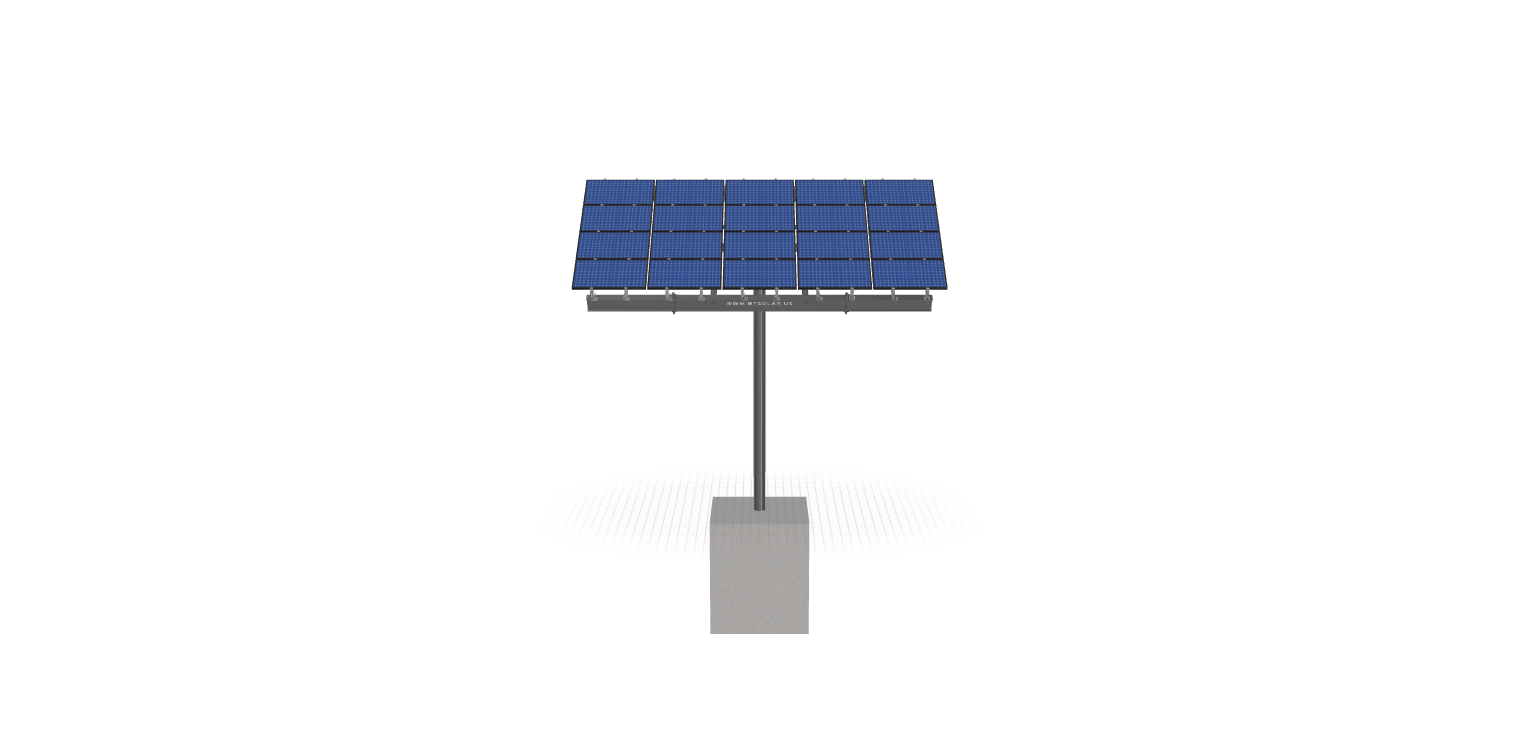

See 3D Model Here
SunridgeRevA
$5,485.41
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 38.6 inches by 23.1 inches and an array layout of 5 wide by 4 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 952.6500000000001 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-6TOP-XD-45-L-4HX5W-J578 |
| DUTY SIZE | XD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 12.26 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 5.25 |
| TILT ANGLE | 35.00 |
| CANTILEVER | 180.00 |
| GROUND CLEARANCE | 10.00 |
| NO POLES | 1.00 |
| MODULE AREA | 129.80 |
| ARRAY WIDTH | 16.50 |
| ARRAY HEIGHT | 7.87 |
| RAIL LENGTH | 94.40 |
| MODULE LENGTH | 38.60 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 15.00 |
| GROUND TO TOP | 14.46 |
| PROJECTED PANEL HEIGHT | 4.42 |
| WIND SPEED OVERRIDE | 115.00 |
| SNOW LOAD OVERRIDE | 278.00 |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | SUNRIDGEREVA |
| SITE ADDRESS | 10806, E, MILES, GOODYEAR, DR, EDEN, UT, 84310, USA |
| MODULE WIDTH | 23.10 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 5.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 5485.41 |
| TOTAL WEIGHT | 952.65 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/ccd9320d-565b-45be-9a2d-611d6736b862.pdf |
|
| ID | 552.00 |
| 3D Solar link |
