This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69.4 inches by 44.7 inches and an array layout of 4 wide by 5 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
UhlmannCarportRev3
$6,607.39
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69.4 inches by 44.7 inches and an array layout of 4 wide by 5 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
Weight | 1348.21 lbs |
---|---|
Dimensions | 90 × 24 × 24 in |

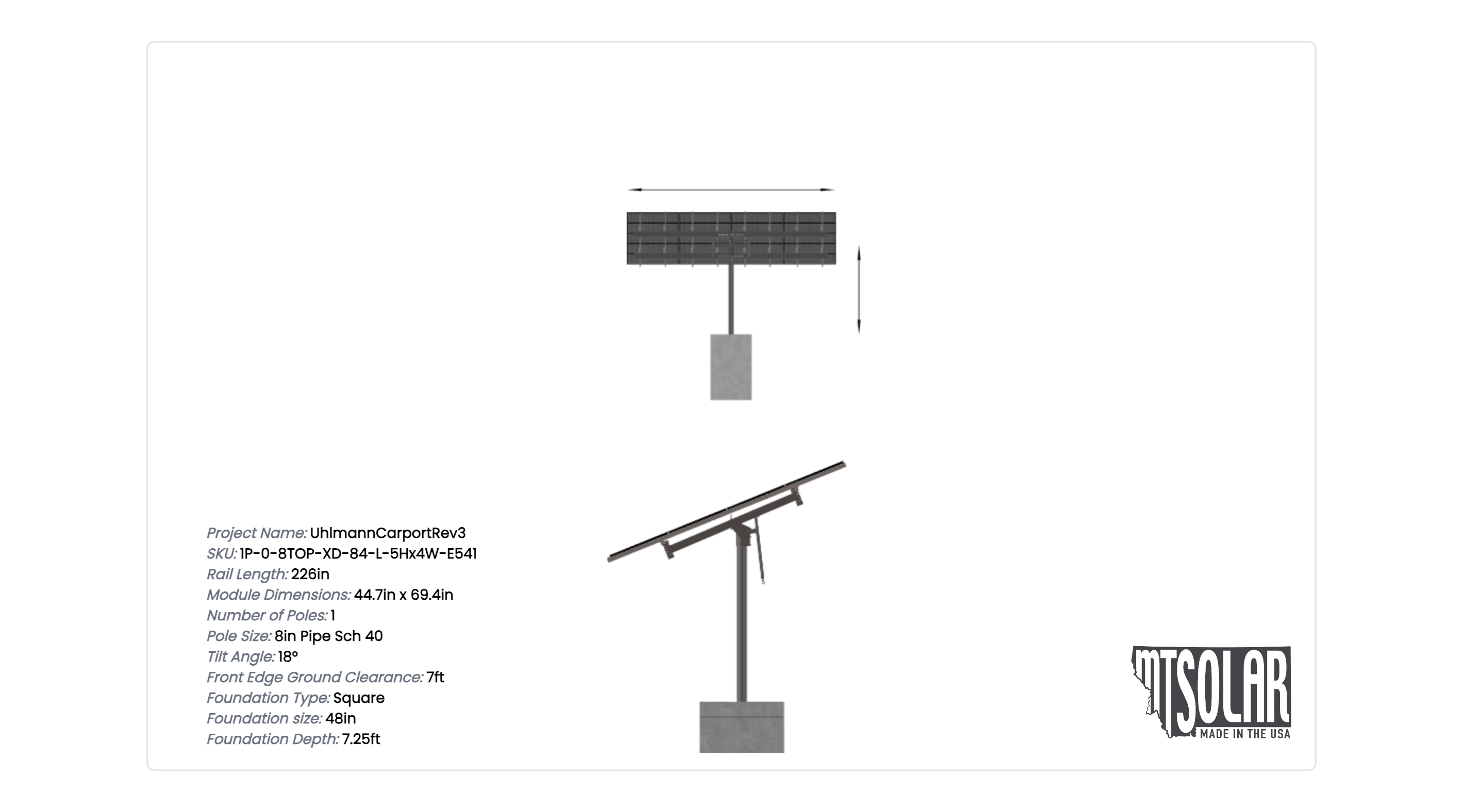

SKU CODE | 1P-0-8TOP-XD-84-L-5HX4W-E541 |
DUTY SIZE | XD |
POLE SIZE | 8IN, PIPE, SCH, 40 |
PRODUCT TYPE | BEAM |
NUMBER OF POLES | 1.00 |
POLE SPACING | 0.00 |
POLE HEIGHT | 9.91 |
WING SPAN | 84.00 |
MAX FOUNDATION DEPTH | 7.25 |
TILT ANGLE | 18.00 |
CANTILEVER | 258.00 |
GROUND CLEARANCE | 7.00 |
NO POLES | 1.00 |
MODULE AREA | 441.96 |
ARRAY WIDTH | 23.47 |
ARRAY HEIGHT | 18.83 |
RAIL LENGTH | 226.00 |
MODULE LENGTH | 69.40 |
PASSED OVERHANG CHECK | TRUE |
MODULE WIDTH GAP | 0.50 |
MODULE LENGTH GAP | 1.00 |
TOTAL FRAME LENGTH | 21.50 |
GROUND TO TOP | 12.79 |
PROJECTED PANEL HEIGHT | 5.76 |
PROJECT ID | UHLMANNCARPORTREV3 |
SITE ADDRESS | 578, COLTER, TRAIL, THREE, FORKS, MT, 59752, USA |
MODULE WIDTH | 44.70 |
NUMBER ROWS | 5.00 |
NUMBER COLUMNS | 4.00 |
RISK CATEGORY | I |
EXPOSURE CATEGORY | C |
FRAME DUTY OVERRIDE | AUTO |
POLE OVERRIDE | AUTO |
SOIL TYPE | SAND |
CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
FOUNDATION TYPE | SQUARE |
FOUNDATION SIZE | 48.00 |
CHECK RAILS | FALSE |
WIND SPEED OVERRIDE | 120.00 |
SNOW LOAD OVERRIDE | NULL |
DIRECT SNOW LOAD | FALSE |
ADD ANGLE BRACE | FALSE |
TOTAL PRICE | 6607.39 |
TOTAL WEIGHT | 1348.21 |
TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/0bb4afb2-1d64-4fb4-910c-38ace6613c8f.pdf |
|
ID | 6456.00 |
3D Solar link |
