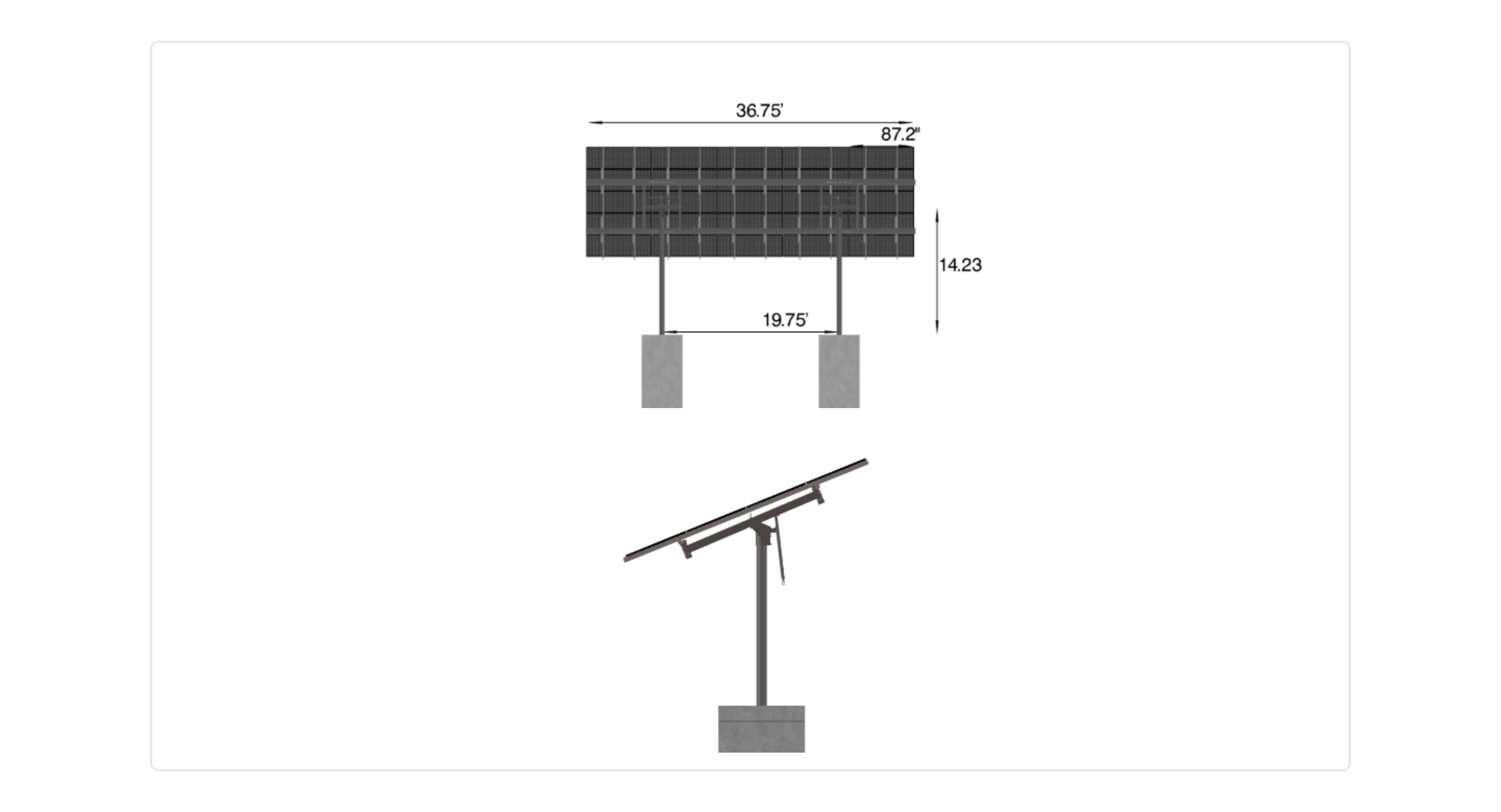

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87.2 inches by 41.1 inches and an array layout of 5 wide by 5 high.
This mount fits on 2 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

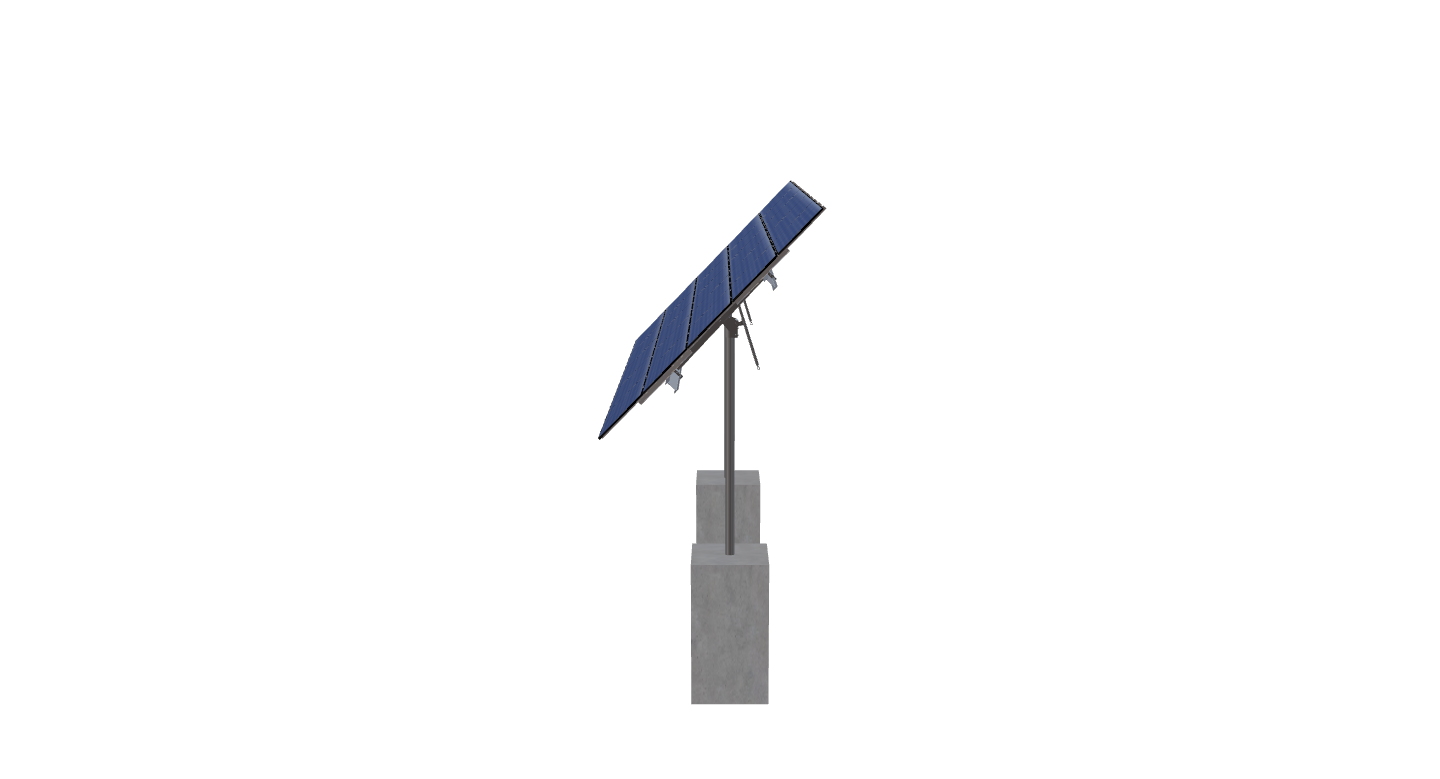

See 3D Model Here
Woodlawn Beach Solar Canopies – RevA – Jb
$10,126.37
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87.2 inches by 41.1 inches and an array layout of 5 wide by 5 high.
This mount fits on 2 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
Weight | 2036.4 lbs |
---|---|
Dimensions | 90 × 24 × 24 in |
SKU CODE | 2P-19.75-8TOP-HD-57-L-5HX5W-I85E |
DUTY SIZE | HD |
POLE SIZE | 8IN, PIPE, SCH, 80 |
PRODUCT TYPE | BEAM |
NUMBER OF POLES | 2.00 |
POLE SPACING | 19.75 |
POLE HEIGHT | 14.23 |
WING SPAN | 57.00 |
MAX FOUNDATION DEPTH | 8.50 |
TILT ANGLE | 46.00 |
CANTILEVER | 441.00 |
GROUND CLEARANCE | 8.00 |
NO POLES | 2.00 |
MODULE AREA | 637.00 |
ARRAY WIDTH | 36.75 |
ARRAY HEIGHT | 17.33 |
RAIL LENGTH | 208.00 |
MODULE LENGTH | 87.20 |
PASSED OVERHANG CHECK | TRUE |
MODULE WIDTH GAP | 0.50 |
MODULE LENGTH GAP | 1.00 |
TOTAL FRAME LENGTH | 36.75 |
GROUND TO TOP | 20.39 |
PROJECTED PANEL HEIGHT | 12.32 |
WIND SPEED OVERRIDE | 110.00 |
SNOW LOAD OVERRIDE | 50.00 |
DIRECT SNOW LOAD | FALSE |
ADD ANGLE BRACE | FALSE |
PROJECT ID | WOODLAWN, BEACH, SOLAR, CANOPIES, -, REVA, -, JB |
SITE ADDRESS | 3580, LAKE, SHORE, RD, BLASDELL, NY, 14219, USA |
MODULE WIDTH | 41.10 |
NUMBER ROWS | 5.00 |
NUMBER COLUMNS | 5.00 |
RISK CATEGORY | II |
EXPOSURE CATEGORY | D |
FRAME DUTY OVERRIDE | AUTO |
POLE OVERRIDE | AUTO |
SOIL TYPE | SAND |
CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
FOUNDATION TYPE | SQUARE |
FOUNDATION SIZE | 48.00 |
CHECK RAILS | FALSE |
TOTAL PRICE | 10126.37 |
TOTAL WEIGHT | 2036.40 |
TOTAL PALLETS | 2.00 |
