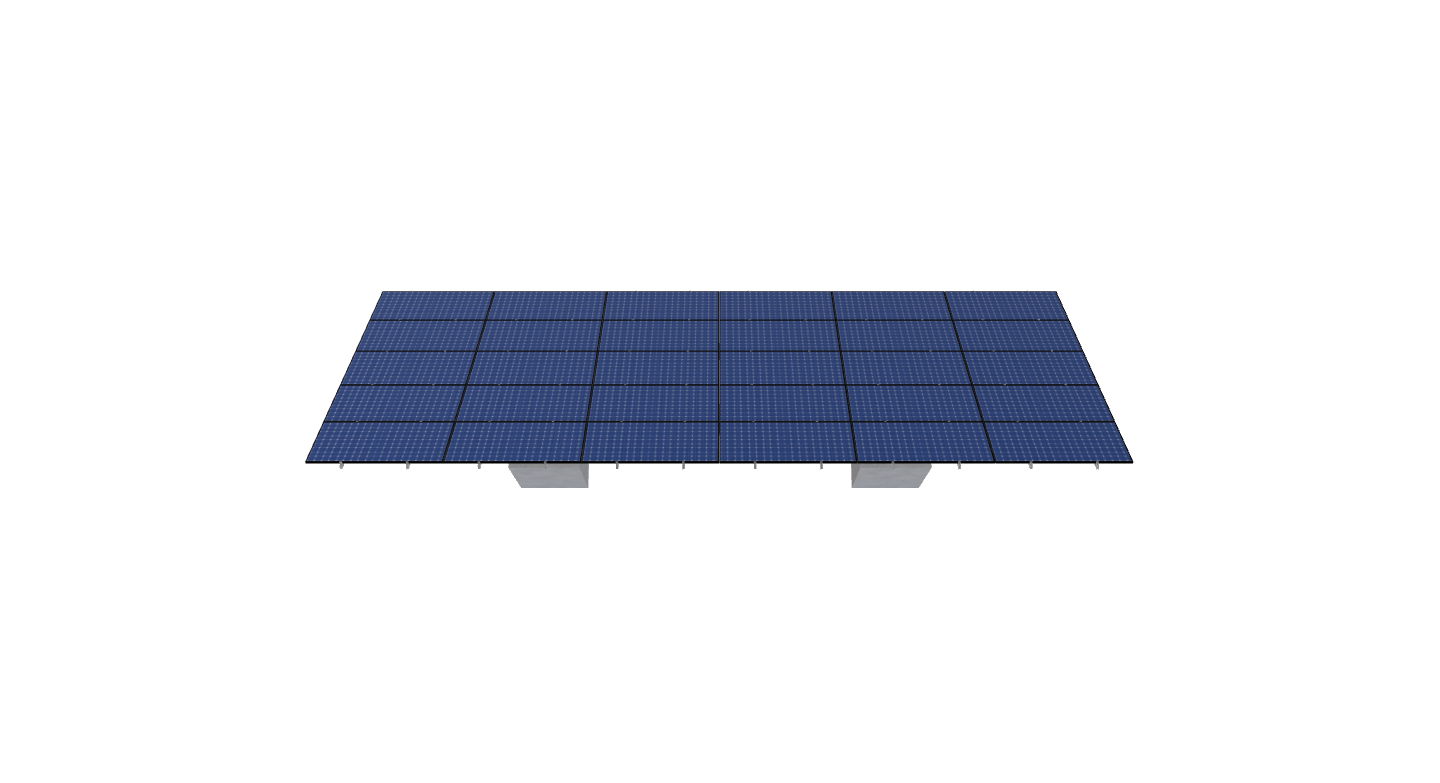

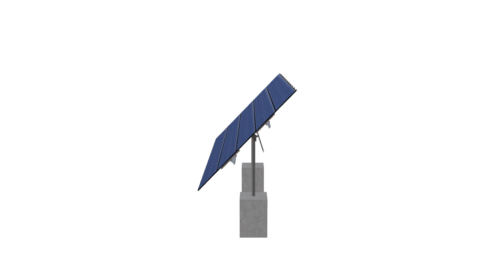

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 85 inches by 50 inches and an array layout of 6 wide by 5 high.

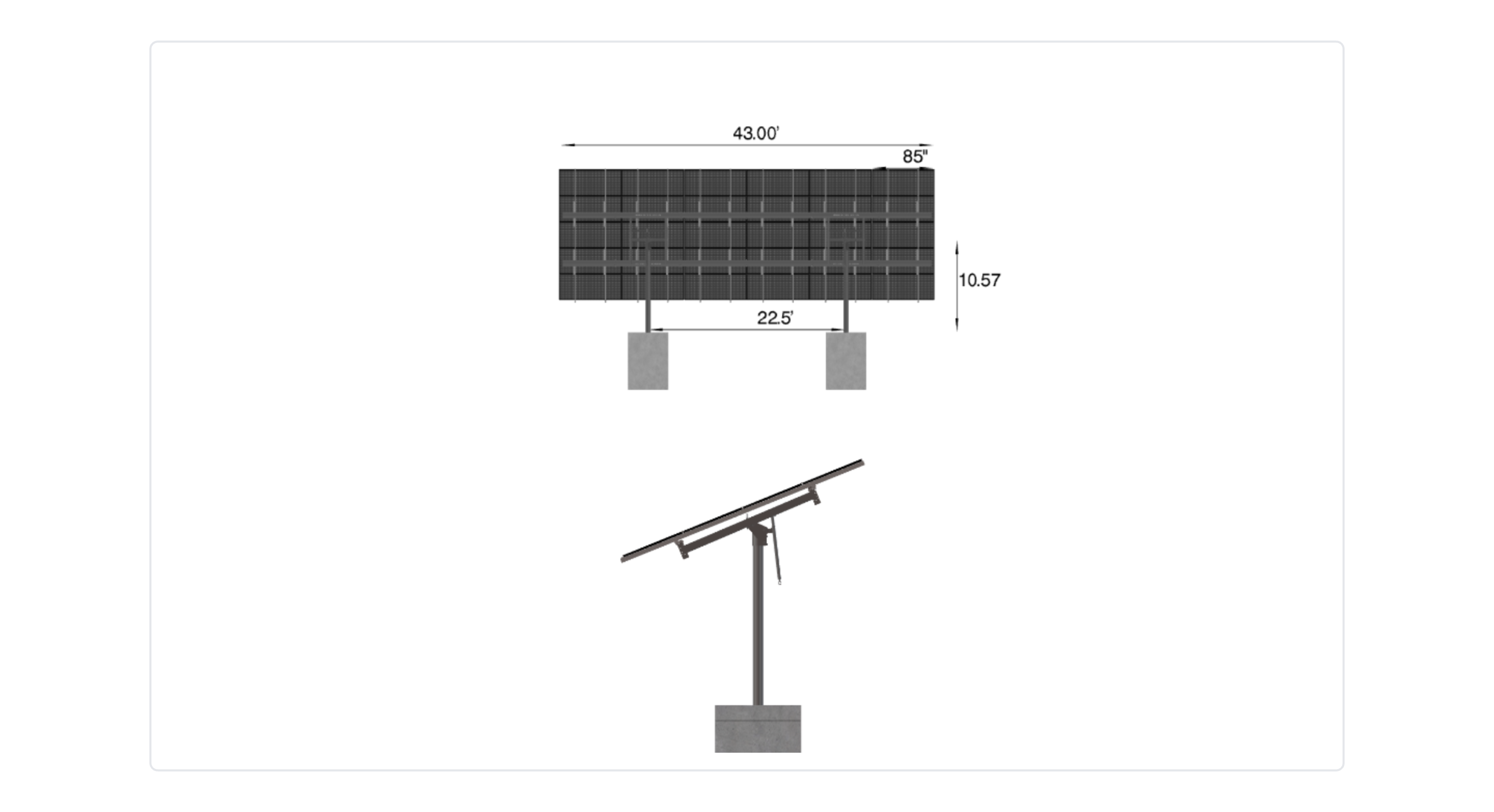

This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Wright-JB-RevB
$12,395.64
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 85 inches by 50 inches and an array layout of 6 wide by 5 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2493.3399999999997 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-22.5-8TOP-XD-72-L-5HX6W-STRUTS-56IF |
| DUTY SIZE | XD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 10.57 |
| WING SPAN | 72.00 |
| MAX FOUNDATION DEPTH | 6.50 |
| TILT ANGLE | 46.00 |
| CANTILEVER | 504.00 |
| GROUND CLEARANCE | 3.00 |
| NO POLES | 2.00 |
| MODULE AREA | 904.79 |
| ARRAY WIDTH | 43.00 |
| ARRAY HEIGHT | 21.04 |
| RAIL LENGTH | 252.50 |
| MODULE LENGTH | 85.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 42.00 |
| GROUND TO TOP | 18.06 |
| PROJECTED PANEL HEIGHT | 14.99 |
| PROJECT ID | WRIGHT-JB-REVB |
| SITE ADDRESS | DUBLIN, NH, USA |
| MODULE WIDTH | 50.00 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 6.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | XD |
| POLE OVERRIDE | 8, 40 |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 100.00 |
| SNOW LOAD OVERRIDE | 70.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | TRUE |
| TOTAL PRICE | 12217.23 |
| TOTAL WEIGHT | 2493.34 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/fee8f44c-3b29-43b4-80bb-22ce3f8fedc1.pdf |
|
| ID | 3982.00 |
| 3D Solar link |
