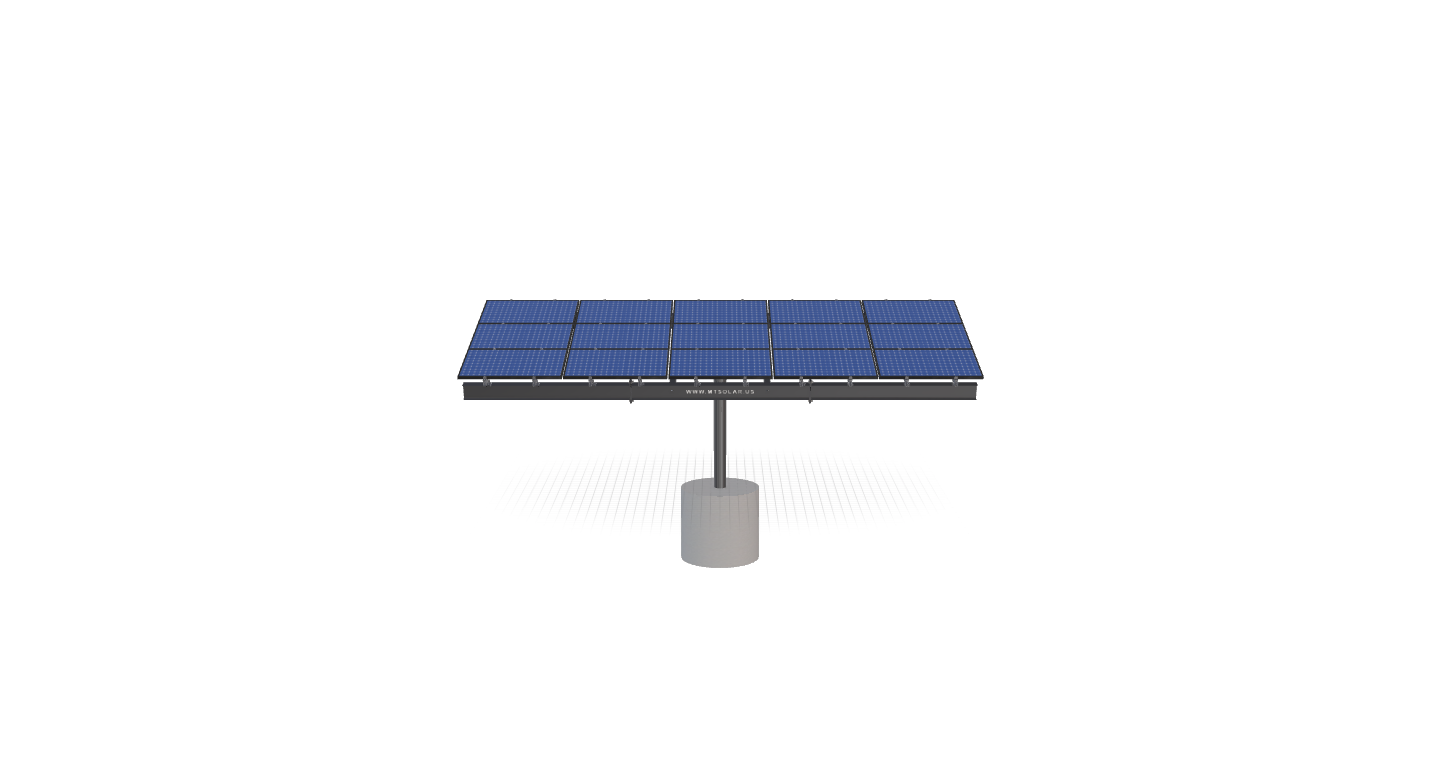

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 51.9 inches by 34.6 inches and an array layout of 5 wide by 3 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
1833HolmesRanchRd-RevB
$4,692.57
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 51.9 inches by 34.6 inches and an array layout of 5 wide by 3 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 822.1 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-6TOP-SD-84-L-3HX5W-0HFJ |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 6.14 |
| WING SPAN | 84.00 |
| MAX FOUNDATION DEPTH | 3.25 |
| TILT ANGLE | 15.00 |
| CANTILEVER | 258.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 1.00 |
| MODULE AREA | 193.42 |
| ARRAY WIDTH | 22.04 |
| ARRAY HEIGHT | 8.78 |
| RAIL LENGTH | 105.30 |
| MODULE LENGTH | 51.90 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 21.50 |
| GROUND TO TOP | 7.25 |
| PROJECTED PANEL HEIGHT | 2.24 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | 1833HOLMESRANCHRD-REVB |
| SITE ADDRESS | 1833, HOLMES, RANCH, RD, PHILO, CA, 95466, USA |
| MODULE WIDTH | 34.60 |
| NUMBER ROWS | 3.00 |
| NUMBER COLUMNS | 5.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 4692.57 |
| TOTAL WEIGHT | 822.10 |
| TOTAL PALLETS | 1.00 |
