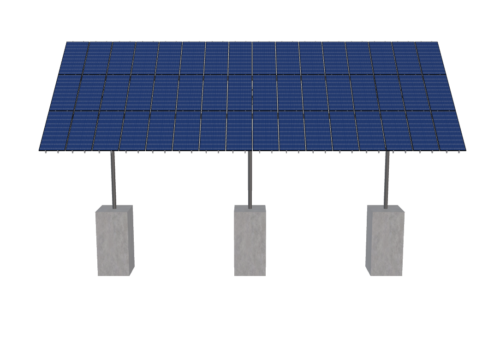

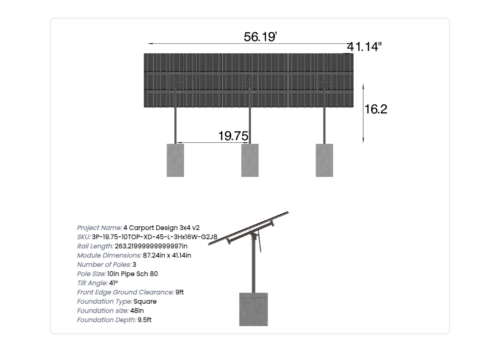

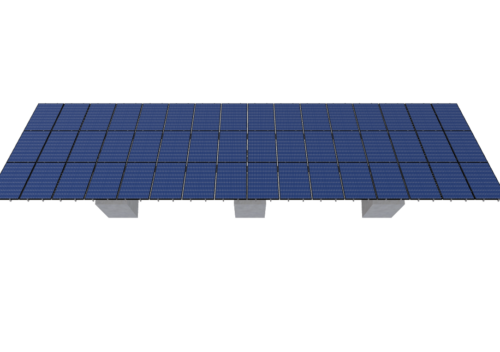

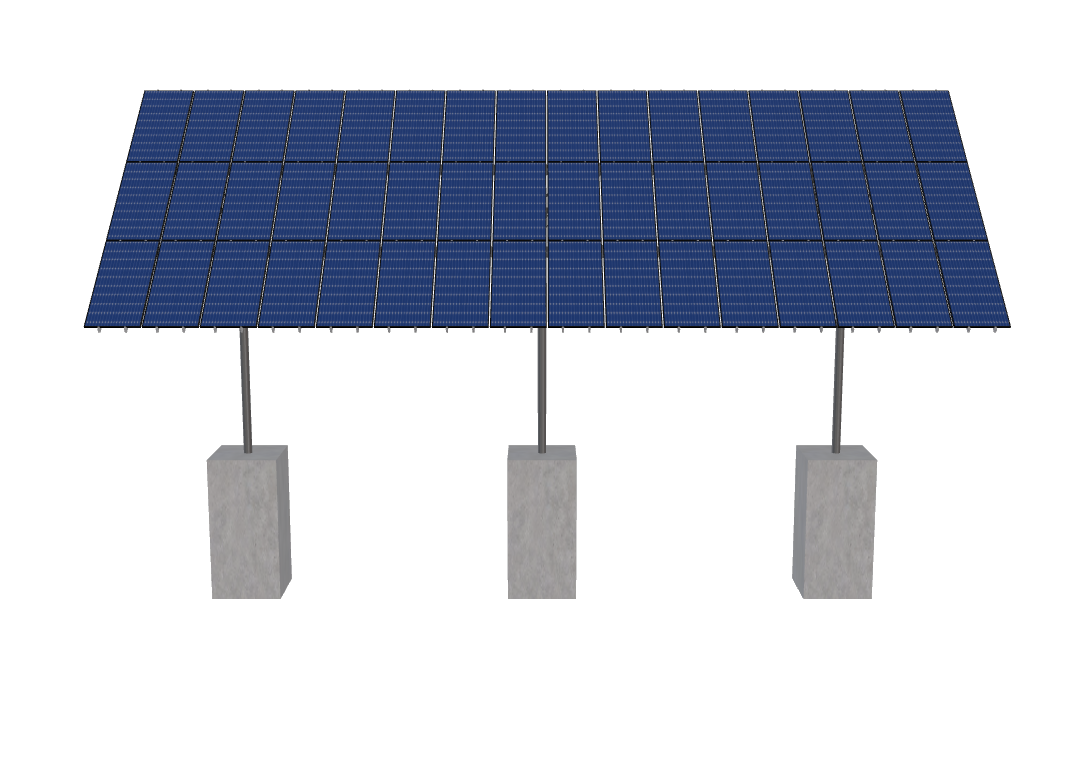

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 41.14 inches by 87.24 inches and an array layout of 16 wide by 3 high.
This mount fits on 3 – 10in Pipe Sch 80 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
4 Carport Design 3×4 v2
$17,915.27
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 41.14 inches by 87.24 inches and an array layout of 16 wide by 3 high.
This mount fits on 3 – 10in Pipe Sch 80 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 3163.5699999999997 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-19.75-10TOP-XD-45-L-3HX16W-G2J8 |
| DUTY SIZE | XD |
| POLE SIZE | 10IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 16.20 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 9.50 |
| TILT ANGLE | 41.00 |
| CANTILEVER | 654.00 |
| GROUND CLEARANCE | 9.00 |
| NO POLES | 3.00 |
| MODULE AREA | 1232.45 |
| ARRAY WIDTH | 56.19 |
| ARRAY HEIGHT | 21.93 |
| RAIL LENGTH | 263.22 |
| MODULE LENGTH | 41.14 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 54.50 |
| GROUND TO TOP | 23.35 |
| PROJECTED PANEL HEIGHT | 14.31 |
| WIND SPEED OVERRIDE | 120.00 |
| SNOW LOAD OVERRIDE | 50.00 |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | 4, CARPORT, DESIGN, 3X4, V2 |
| SITE ADDRESS | 966, 9TH, ST, OGDEN, UT, 84404, USA |
| MODULE WIDTH | 87.24 |
| NUMBER ROWS | 3.00 |
| NUMBER COLUMNS | 16.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 17915.27 |
| TOTAL WEIGHT | 3163.57 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/6b9b86de-5aff-4817-b37e-7e6acfb7f54d.pdf |
|
| ID | 2081.00 |
| 3D Solar link |
