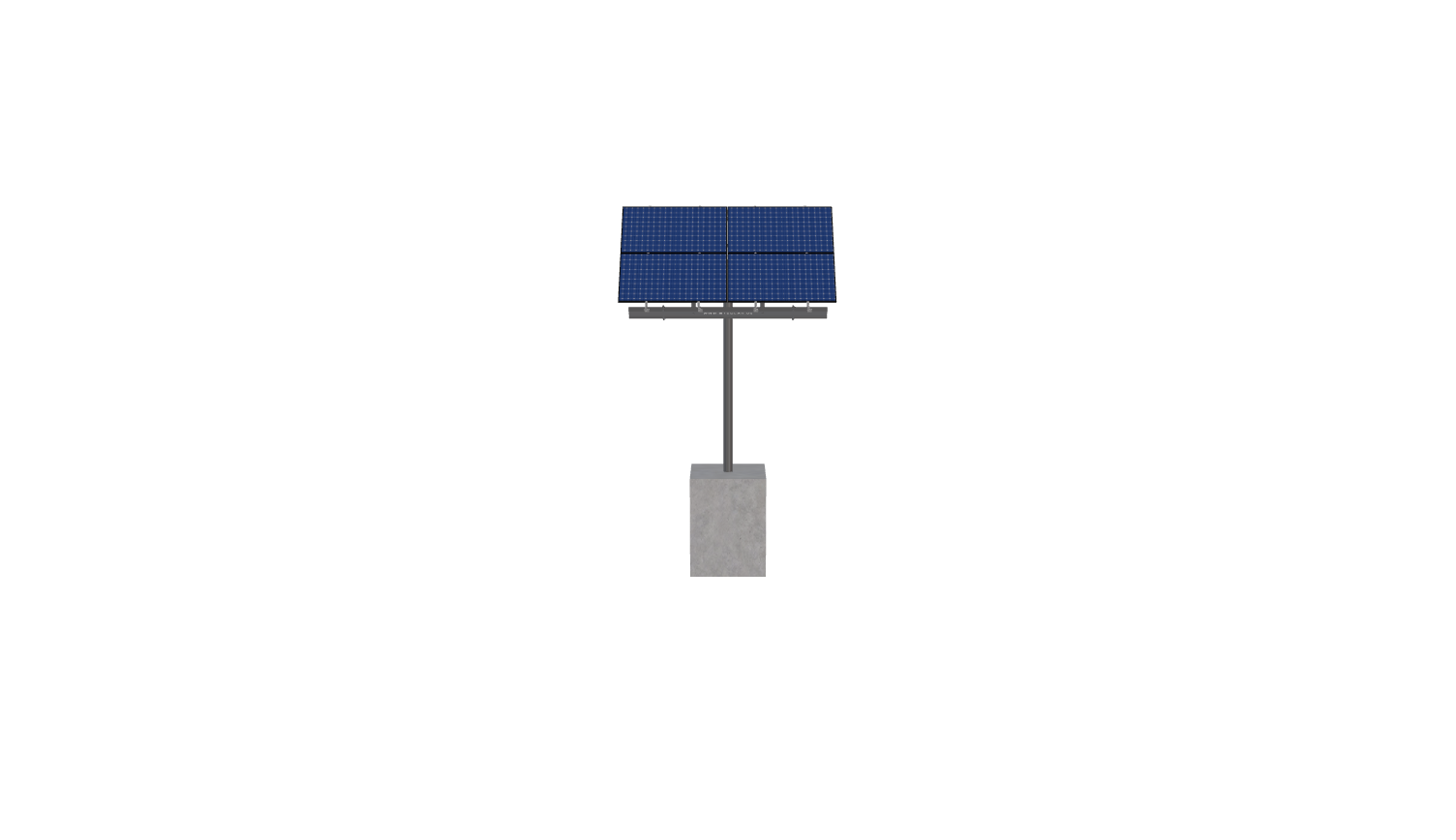

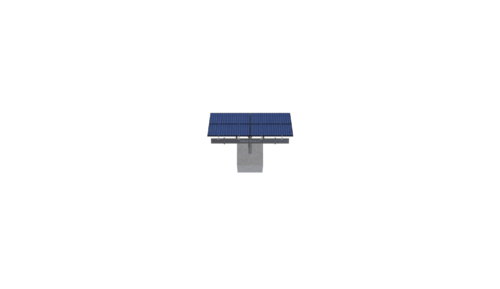

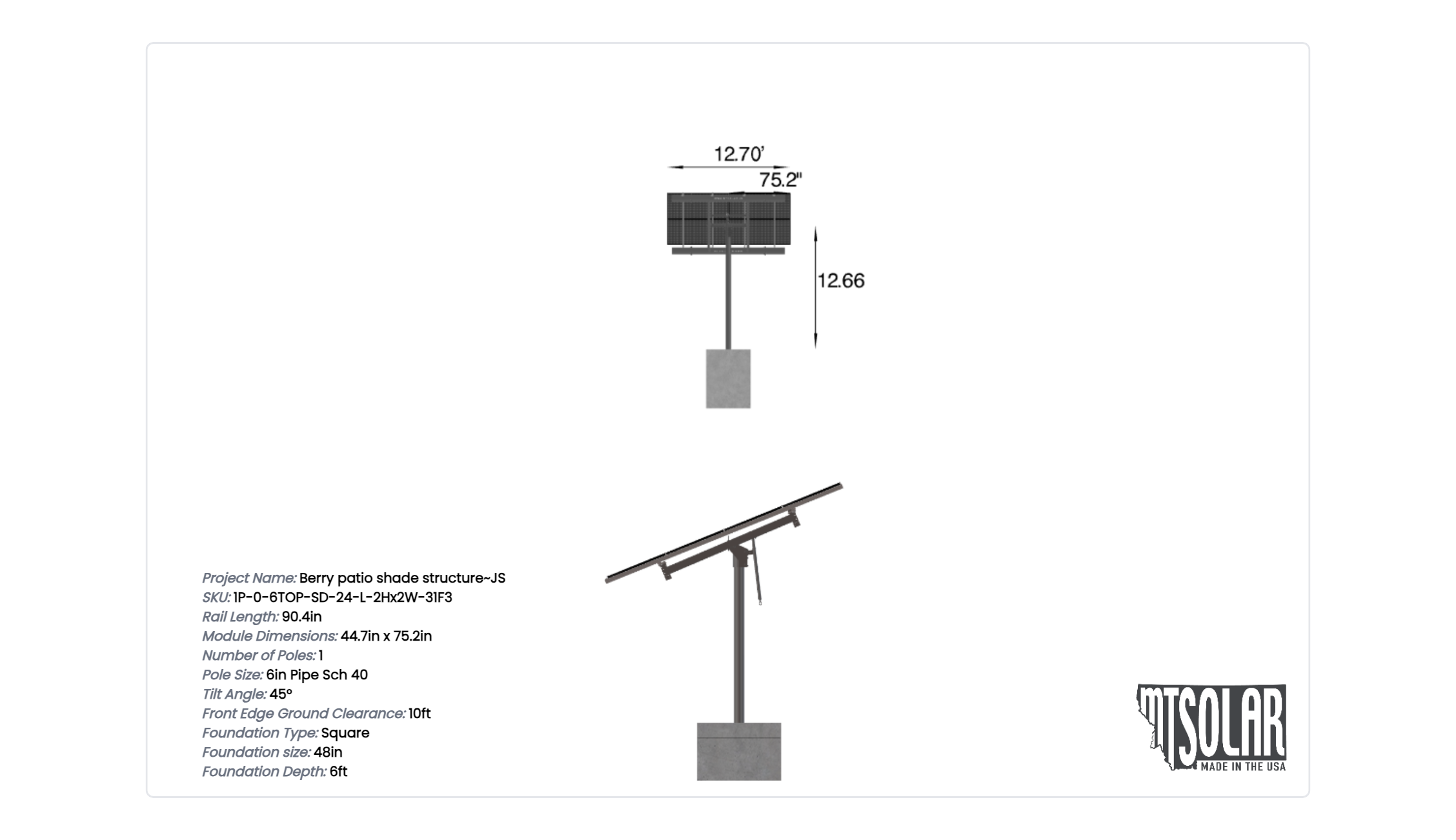

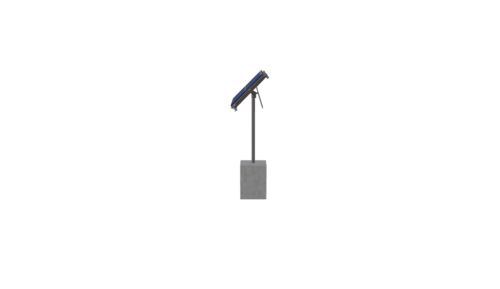

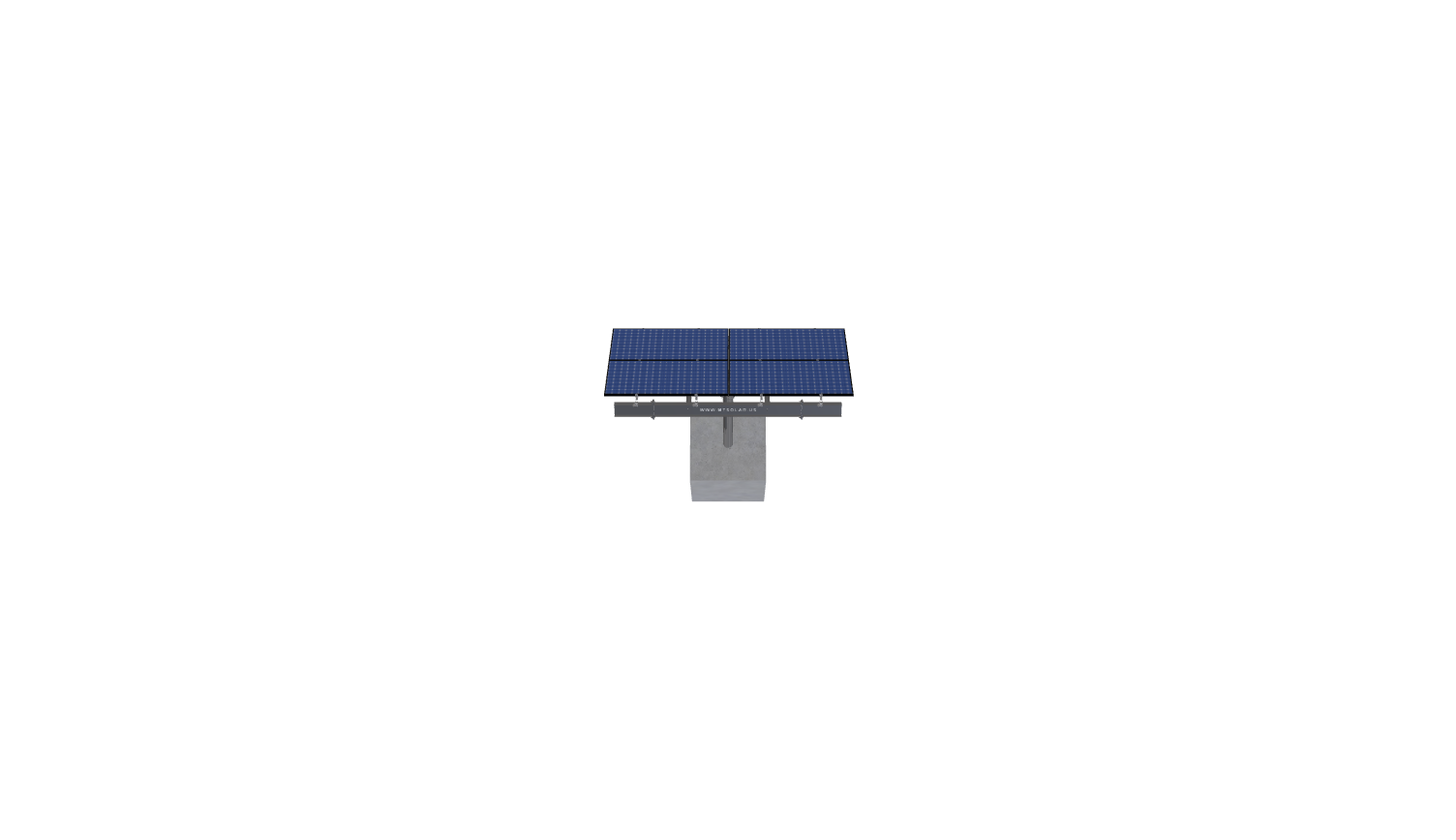

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 75.2 inches by 44.7 inches and an array layout of 2 wide by 2 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Berry patio shade structure~JS
$3,061.28
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 75.2 inches by 44.7 inches and an array layout of 2 wide by 2 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 529.92 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-6TOP-SD-24-L-2HX2W-31F3 |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 12.66 |
| WING SPAN | 24.00 |
| MAX FOUNDATION DEPTH | 6.00 |
| TILT ANGLE | 45.00 |
| CANTILEVER | 138.00 |
| GROUND CLEARANCE | 10.00 |
| NO POLES | 1.00 |
| MODULE AREA | 95.67 |
| ARRAY WIDTH | 12.70 |
| ARRAY HEIGHT | 7.53 |
| RAIL LENGTH | 90.40 |
| MODULE LENGTH | 75.20 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 11.50 |
| GROUND TO TOP | 15.30 |
| PROJECTED PANEL HEIGHT | 5.27 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| PROJECT ID | BERRY, PATIO, SHADE, STRUCTURE~JS |
| SITE ADDRESS | 238, BERRY, PKWY, PARK, RIDGE, IL, 60068, USA |
| MODULE WIDTH | 44.70 |
| NUMBER ROWS | 2.00 |
| NUMBER COLUMNS | 2.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 3061.28 |
| TOTAL WEIGHT | 529.92 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/2adc5d83-9ca7-4f86-93ec-9a646c72070a.pdf |
|
| ID | 5726.00 |
| 3D Solar link |
