This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 65 inches by 40 inches and an array layout of 9 wide by 4 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

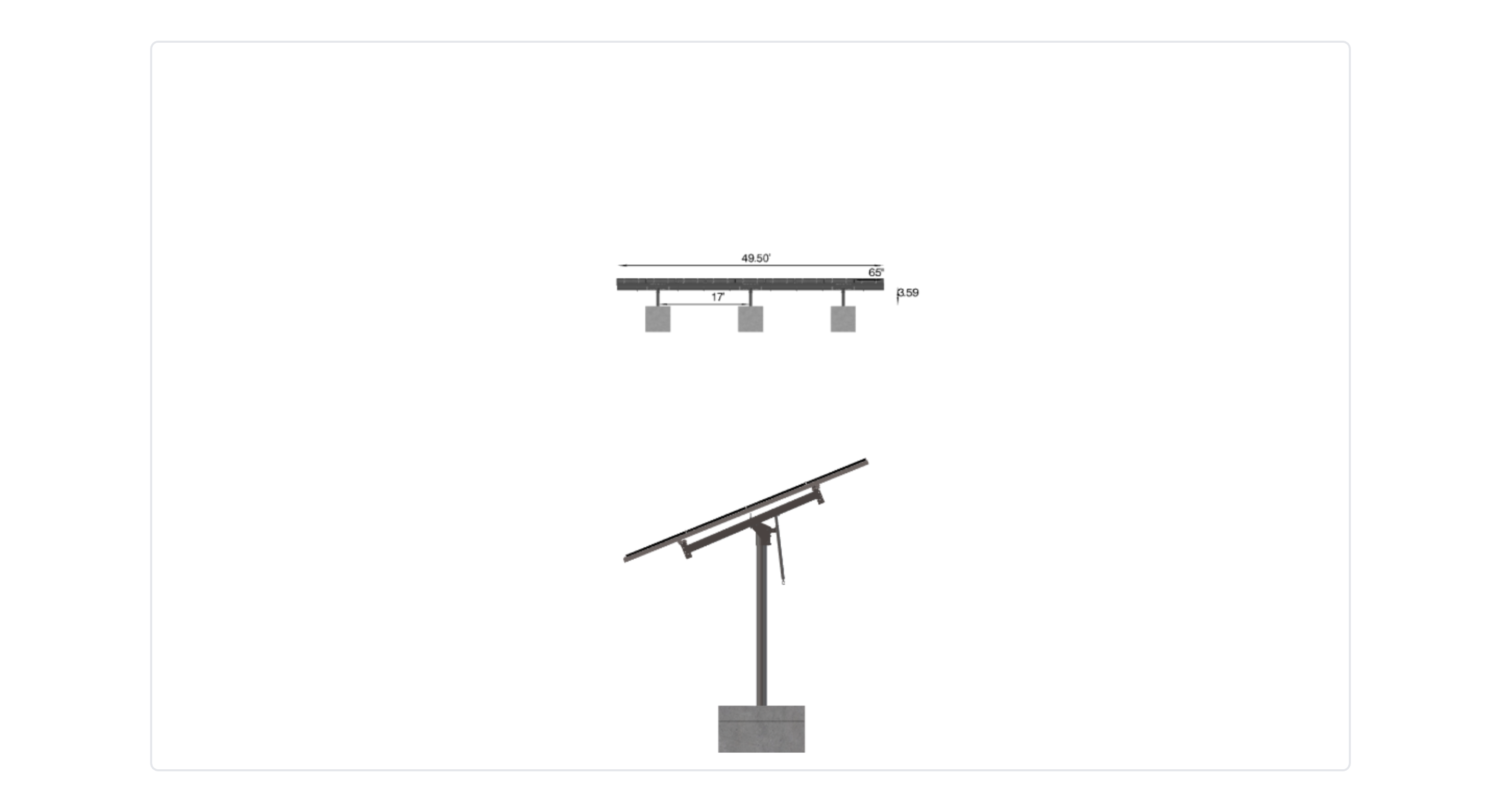

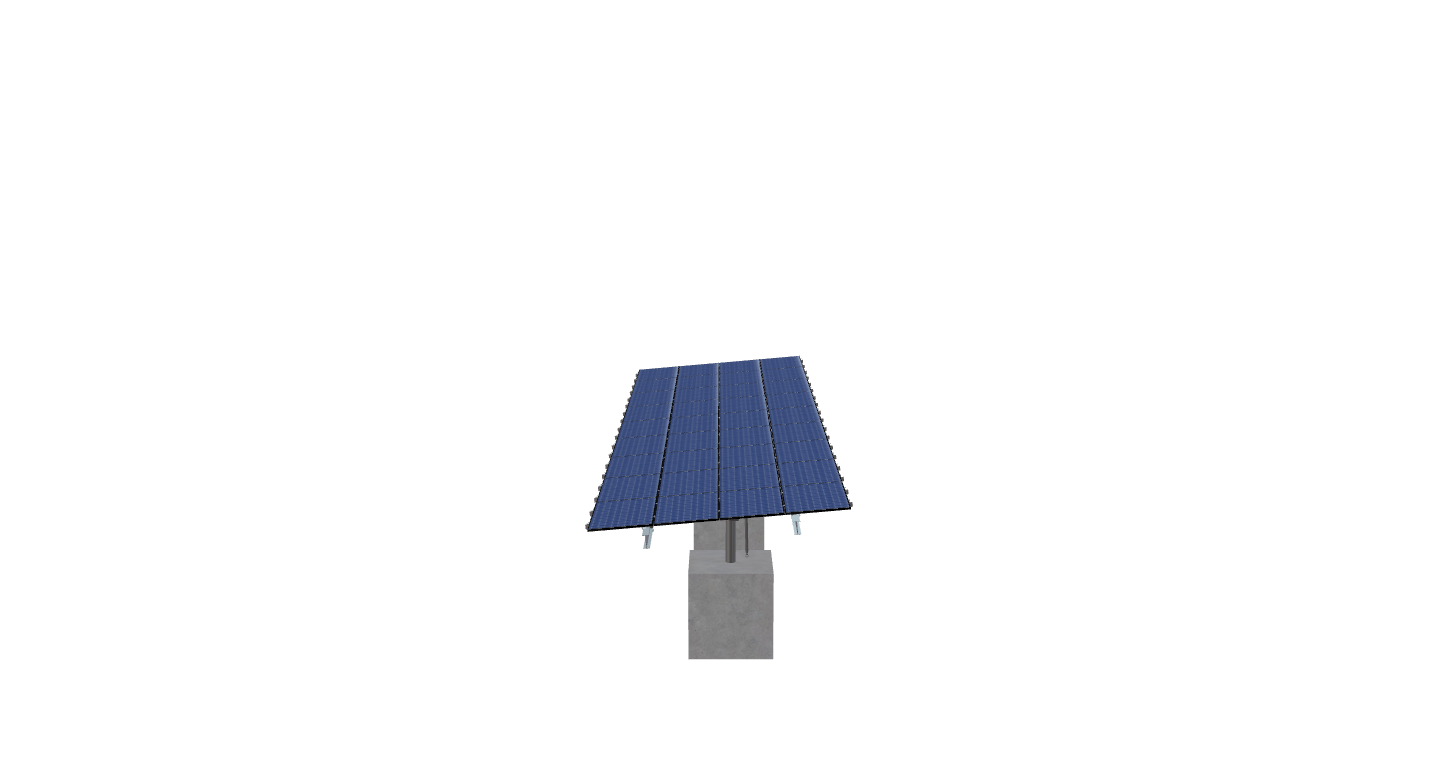

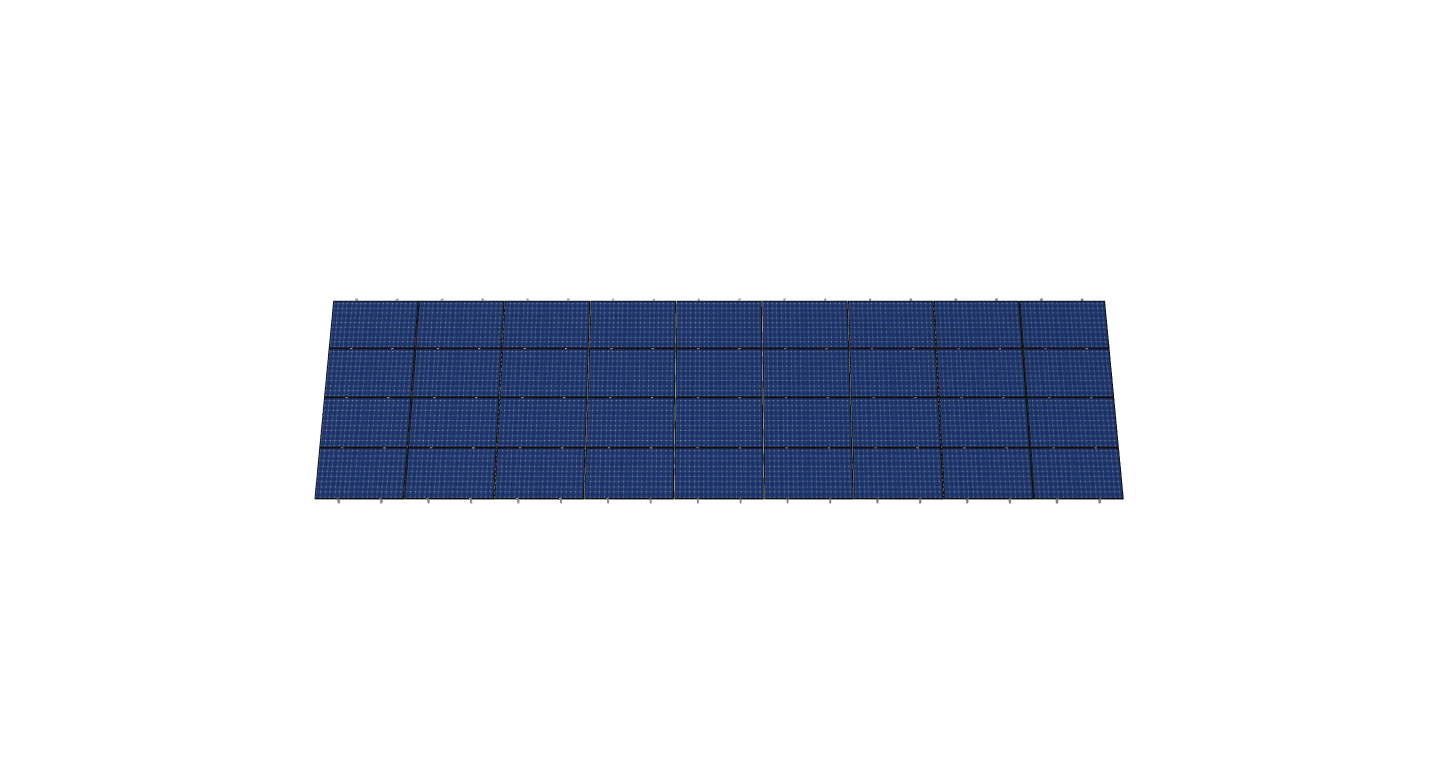

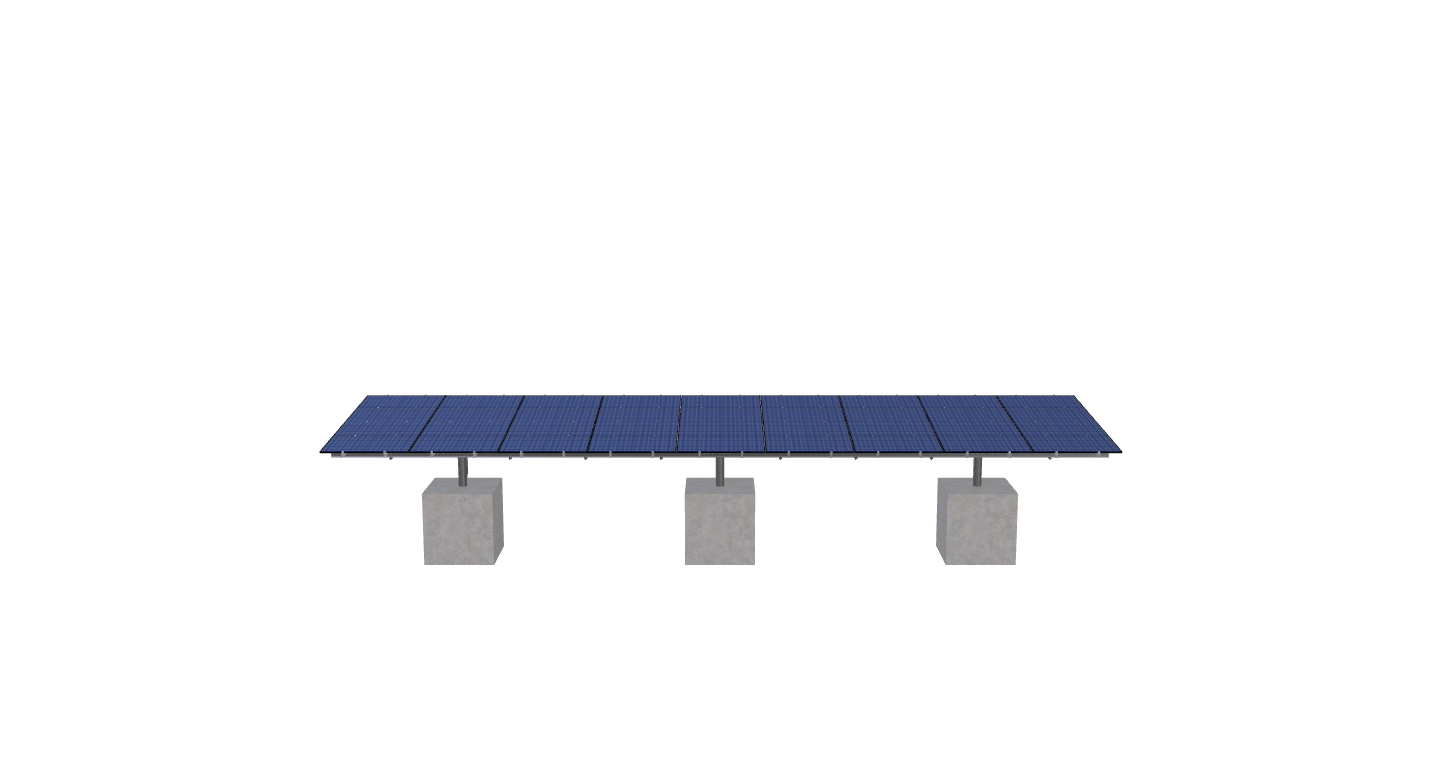

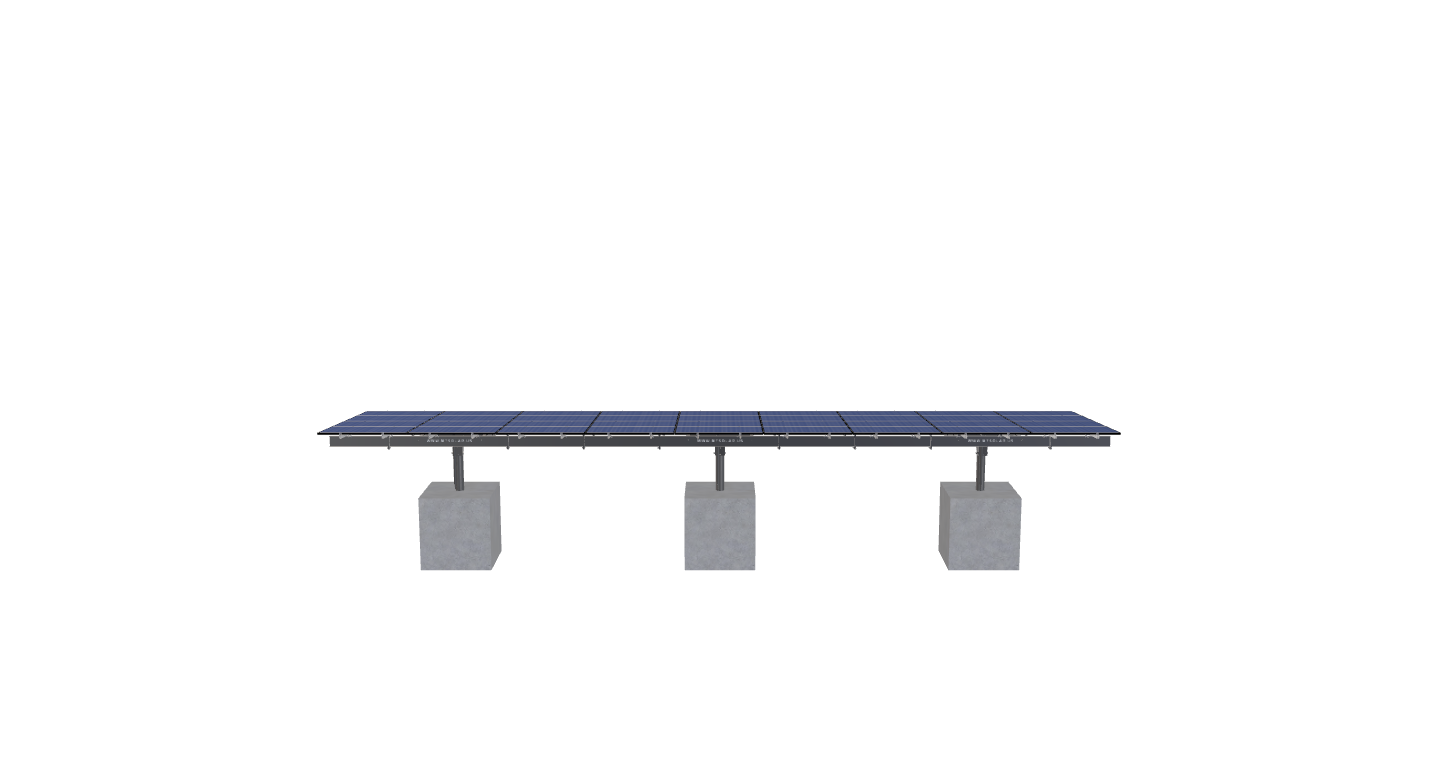

See 3D Model Here
Bloom-RevA-JB
$12,075.98
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 65 inches by 40 inches and an array layout of 9 wide by 4 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
Weight | 2110.98 lbs |
---|---|
Dimensions | 90 × 24 × 24 in |
SKU CODE | 3P-17-6TOP-SD-45-L-4HX9W-F3KD |
DUTY SIZE | SD |
POLE SIZE | 6IN, PIPE, SCH, 40 |
PRODUCT TYPE | BEAM |
NUMBER OF POLES | 3.00 |
POLE SPACING | 17.00 |
POLE HEIGHT | 3.59 |
WING SPAN | 45.00 |
MAX FOUNDATION DEPTH | 4.75 |
TILT ANGLE | 5.00 |
CANTILEVER | 588.00 |
GROUND CLEARANCE | 3.00 |
NO POLES | 3.00 |
MODULE AREA | 668.25 |
ARRAY WIDTH | 49.50 |
ARRAY HEIGHT | 13.50 |
RAIL LENGTH | 162.00 |
MODULE LENGTH | 65.00 |
PASSED OVERHANG CHECK | TRUE |
MODULE WIDTH GAP | 0.50 |
MODULE LENGTH GAP | 1.00 |
TOTAL FRAME LENGTH | 49.00 |
GROUND TO TOP | 4.17 |
PROJECTED PANEL HEIGHT | 1.16 |
WIND SPEED OVERRIDE | NULL |
SNOW LOAD OVERRIDE | NULL |
DIRECT SNOW LOAD | FALSE |
ADD ANGLE BRACE | FALSE |
PROJECT ID | BLOOM-REVA-JB |
SITE ADDRESS | 3525, CANAL, ST, OVIEDO, FL, 32765, USA |
MODULE WIDTH | 40.00 |
NUMBER ROWS | 4.00 |
NUMBER COLUMNS | 9.00 |
RISK CATEGORY | I |
EXPOSURE CATEGORY | C |
FRAME DUTY OVERRIDE | AUTO |
POLE OVERRIDE | AUTO |
SOIL TYPE | SAND |
CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
FOUNDATION TYPE | SQUARE |
FOUNDATION SIZE | 48.00 |
CHECK RAILS | FALSE |
TOTAL PRICE | 12075.98 |
TOTAL WEIGHT | 2110.98 |
TOTAL PALLETS | 3.00 |
