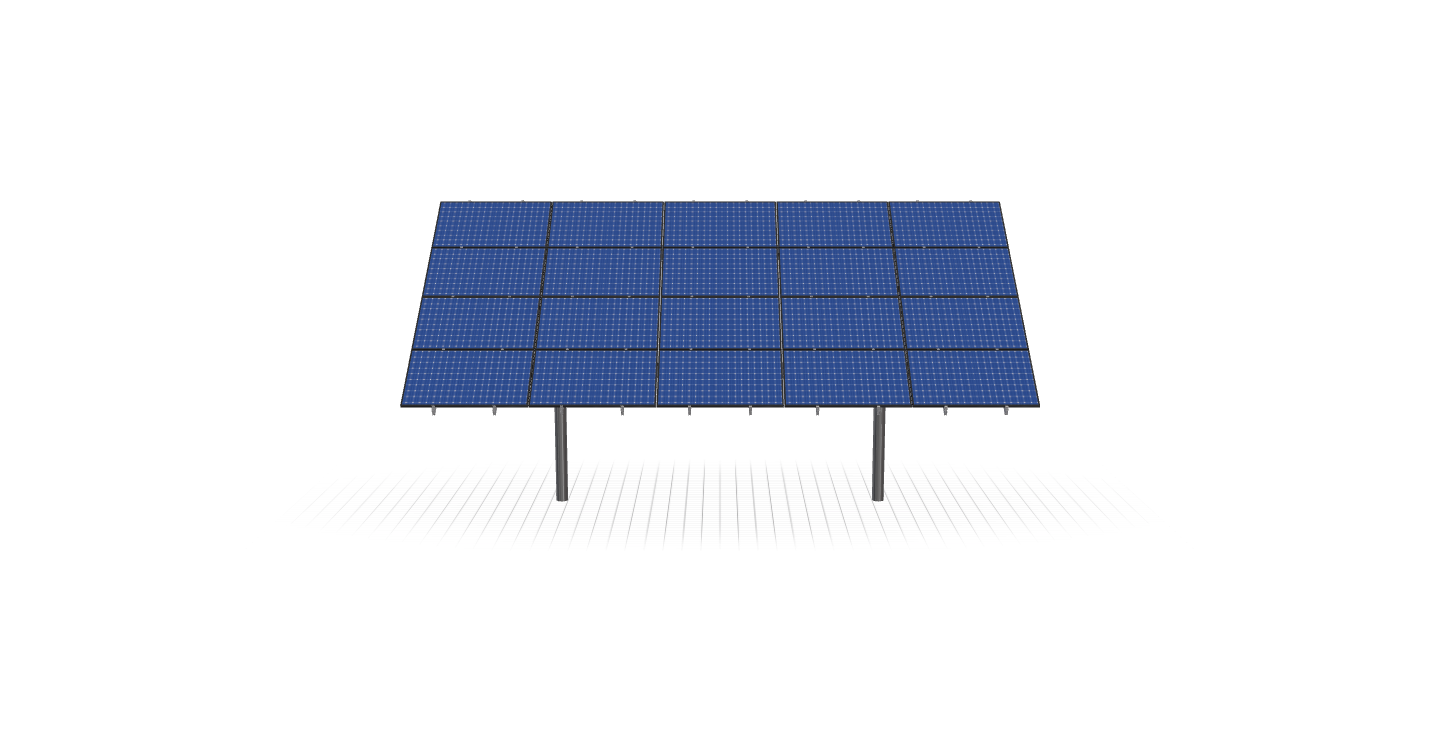

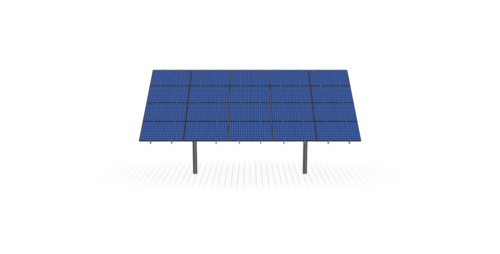

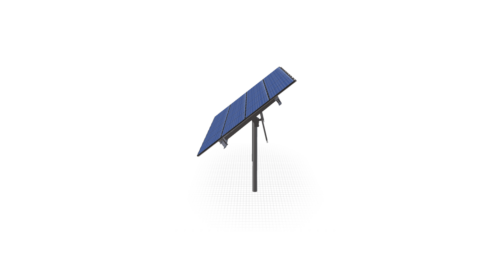

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 64.96 inches by 39.98 inches and an array layout of 5 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Bunce-RevA
$7,143.68
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 64.96 inches by 39.98 inches and an array layout of 5 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1228.6 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-15-6TOP-SD-24-L-4HX5W-74F4 |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 15.00 |
| POLE HEIGHT | 9.15 |
| WING SPAN | 24.00 |
| MAX FOUNDATION DEPTH | 3.00 |
| TILT ANGLE | 38.00 |
| CANTILEVER | 318.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 2.00 |
| MODULE AREA | 370.84 |
| ARRAY WIDTH | 27.48 |
| ARRAY HEIGHT | 13.49 |
| RAIL LENGTH | 161.92 |
| MODULE LENGTH | 64.96 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 26.50 |
| GROUND TO TOP | 13.26 |
| PROJECTED PANEL HEIGHT | 8.20 |
| WIND SPEED OVERRIDE | 90.00 |
| SNOW LOAD OVERRIDE | 110.00 |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | BUNCE-REVA |
| SITE ADDRESS | 420, N, CANYON, RUN, BLVD, KETCHUM, ID, 83340, USA |
| MODULE WIDTH | 39.98 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 5.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 7143.68 |
| TOTAL WEIGHT | 1228.60 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/3887308d-2ab3-4930-99d9-404837889765.pdf |
|
| ID | 497.00 |
| 3D Solar link |
