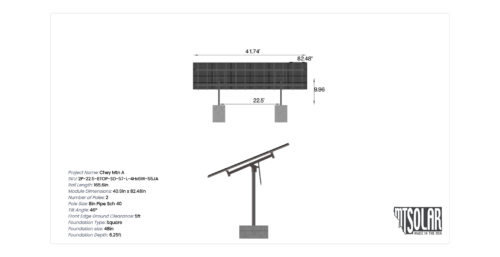

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.48 inches by 40.9 inches and an array layout of 6 wide by 4 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Chey Mtn A
$8,644.32
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.48 inches by 40.9 inches and an array layout of 6 wide by 4 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1552.32 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-22.5-8TOP-SD-57-L-4HX6W-55JA |
| DUTY SIZE | SD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 9.96 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 6.25 |
| TILT ANGLE | 46.00 |
| CANTILEVER | 474.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 2.00 |
| MODULE AREA | 576.01 |
| ARRAY WIDTH | 41.74 |
| ARRAY HEIGHT | 13.80 |
| RAIL LENGTH | 165.60 |
| MODULE LENGTH | 82.48 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 39.50 |
| GROUND TO TOP | 14.87 |
| PROJECTED PANEL HEIGHT | 9.81 |
| PROJECT ID | CHEY, MTN, A |
| SITE ADDRESS | FORT, CARSON, CO, USA |
| MODULE WIDTH | 40.90 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 6.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | 8, 40 |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| WIND SPEED OVERRIDE | 115.00 |
| SNOW LOAD OVERRIDE | 40.00 |
| DIRECT SNOW LOAD | FALSE |
| TOTAL PRICE | 8644.32 |
| TOTAL WEIGHT | 1552.32 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/7ea9c1e2-8641-4787-a2c6-d553bbeef22a.pdf |
|
| ID | 2253.00 |
| 3D Solar link |
