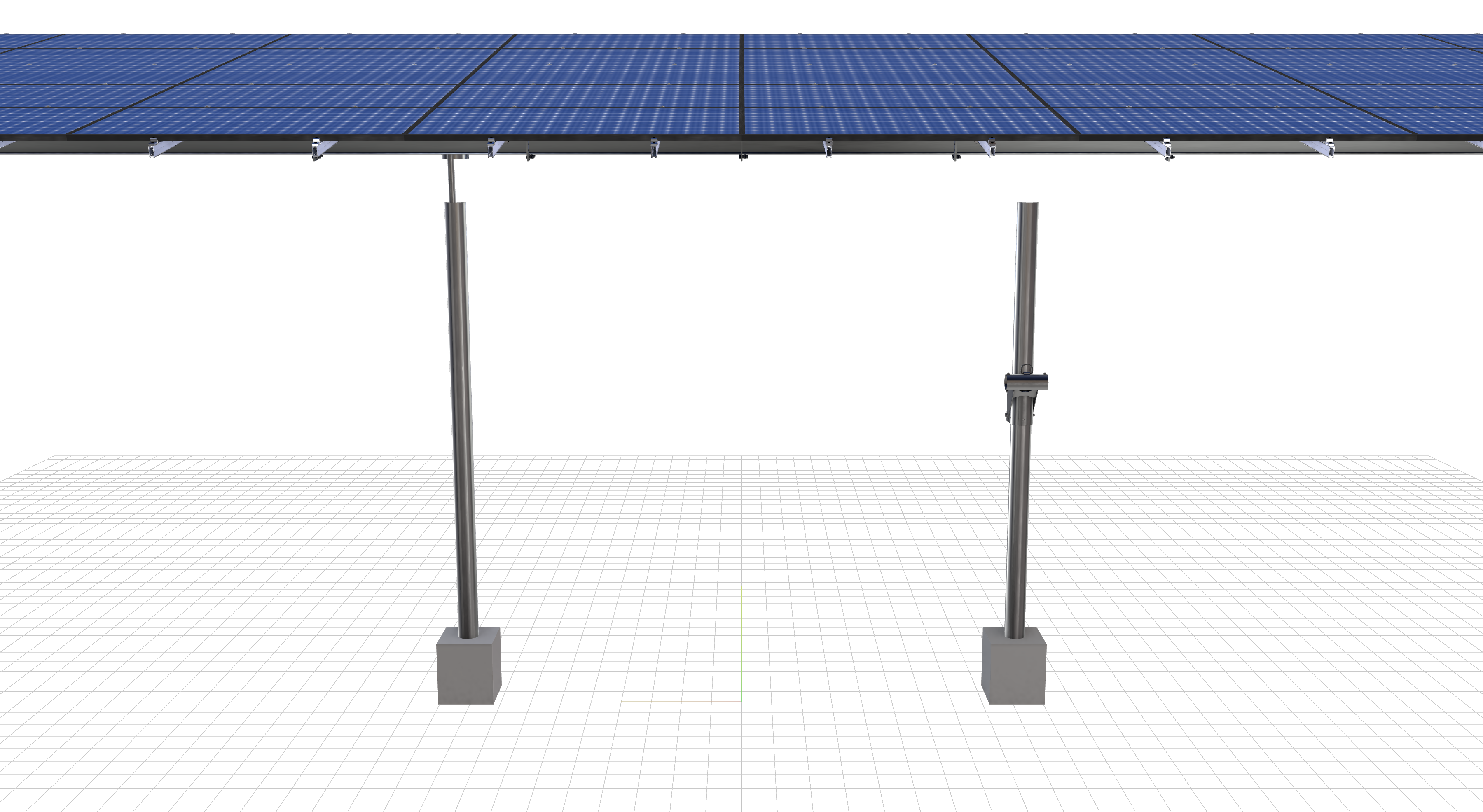

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.13 inches by 41.5 inches and an array layout of 12 wide by 5 high.
This mount fits on 4 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
DanielAgee%7CBeachStreetParkinglot%7CRevE
$21,806.03
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.13 inches by 41.5 inches and an array layout of 12 wide by 5 high.
This mount fits on 4 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
Additional information
https://solver.skyciv.com/temp/mergedpdf_o0n8b2f0uhcc0og4.php |
|
| SKU CODE | 4P-22.5-6TOP-HD-45-L-5Hx12W |
| DUTY SIZE | HD |
| POLE SIZE | 6in, Pipe, Sch, 40 |
| PRODUCT TYPE | Beam |
| NUMBER OF_POLES | 4 |
| POLE SPACING | 15 |
| POLE HEIGHT | 13.52 |
| WING SPAN | 45 |
| FOUNDATION DEPTHS | [object, Object] |
| TILT ANGLE | 10 |
| CANTILEVER | 990 |
| GROUND CLEARANCE | 12 |
| NO POLES | 4 |
| MODULE AREA | 1454.7749999999999 |
| ARRAY WIDTH | 83.13 |
| ARRAY HEIGHT | 17.5 |
| RAIL LENGTH | 210 |
| MODULE LENGTH | 82.13 |
| PASSED OVERHANG_CHECK | true |
| MODULE WIDTH_GAP | 0.5 |
| MODULE LENGTH_GAP | 1 |
| TOTAL FRAME_LENGTH | 82.5 |
| GROUND TO_TOP | 15.020754757330977 |
| PROJECTED PANEL_HEIGHT | 3.0026664054906718 |
| WIND SPEED_OVERRIDE | null |
| SNOW LOAD_OVERRIDE | null |
| DIRECT SNOW_LOAD | false |
| PROJECT ID | DanielAgee, BeachStreetParkinglot, RevE |
| SITE ADDRESS | 122, S, Beech, St, Casper, WY, 82601, USA |
| MODULE WIDTH | 41.5 |
| NUMBER ROWS | 5 |
| NUMBER COLUMNS | 12 |
| MAIN PIPE_SECTION | 2_12GA |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| SOIL TYPE | sand |
| FOUNDATION TYPE | Square |
| FOUNDATION SIZE | 48 |
| CHECK RAILS | false |
| TOTAL PRICE | 21806.03 |
| TOTAL WEIGHT | 4424.4 |
| TOTAL PALLETS | 4 |
| ID | 95 |
