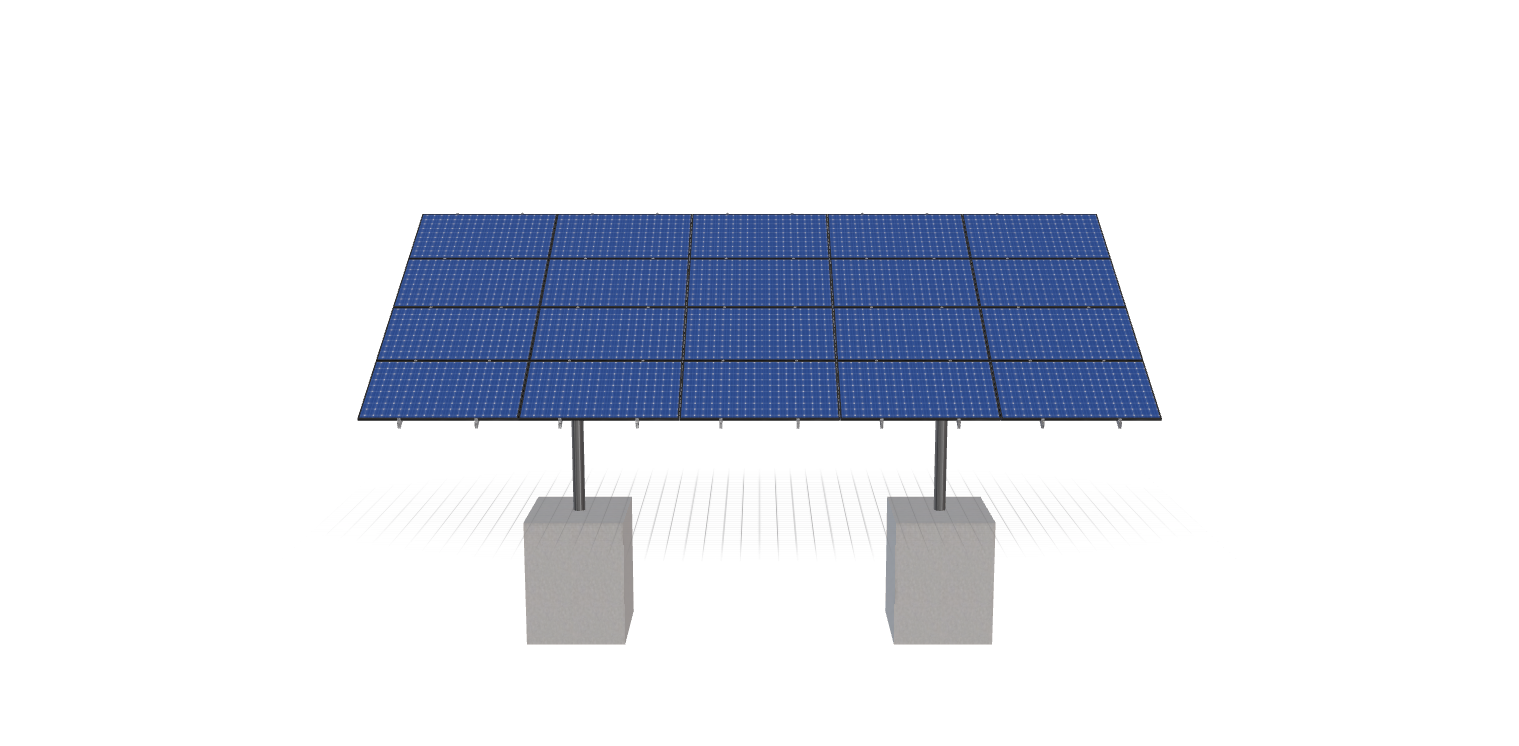

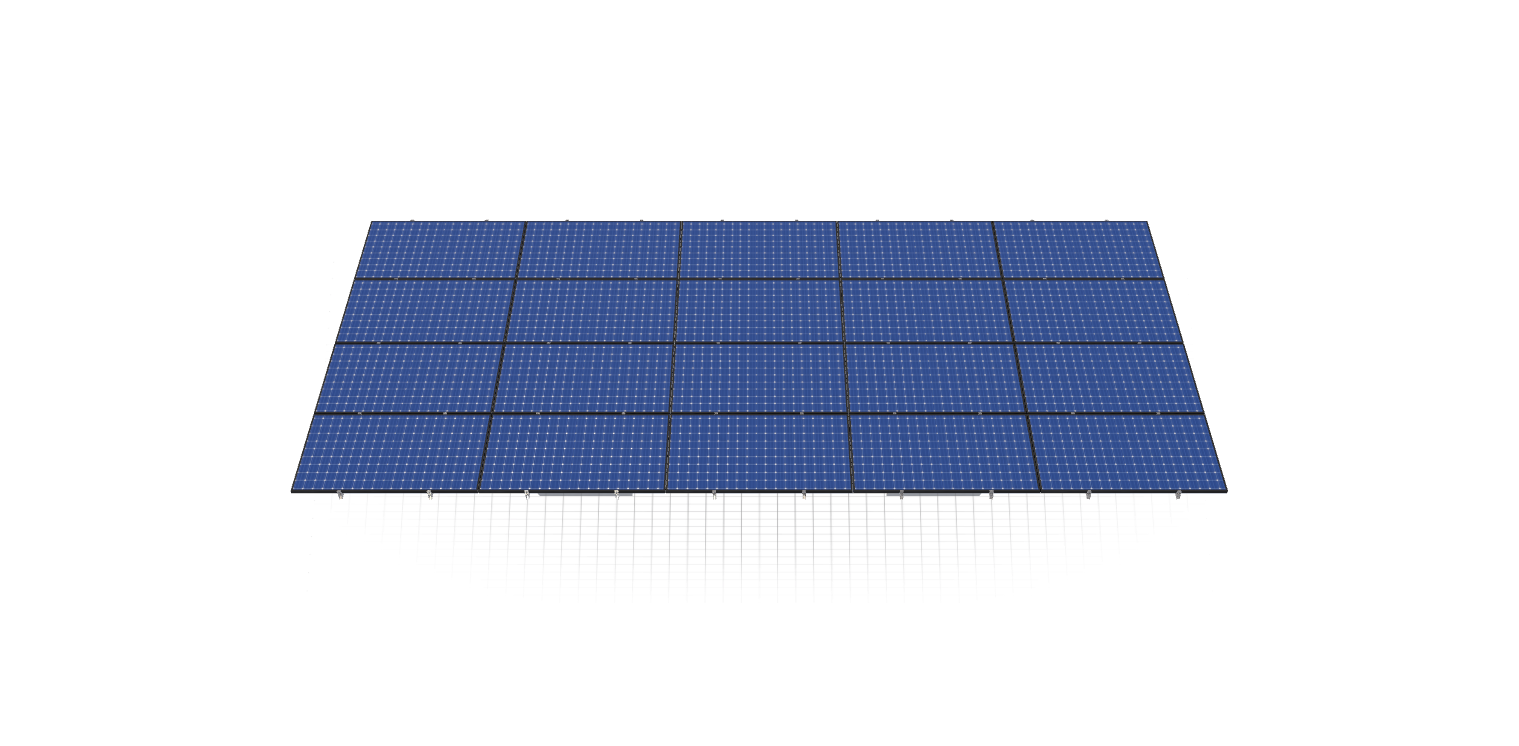

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 79.5 inches by 45.5 inches and an array layout of 5 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
ElijahSearsHomeRevA
$8,693.30
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 79.5 inches by 45.5 inches and an array layout of 5 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1590.32 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-17-6TOP-HD-45-L-4HX5W |
| DUTY SIZE | HD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 8.83 |
| WING SPAN | 45.00 |
| TILT ANGLE | 30.00 |
| CANTILEVER | 384.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 2.00 |
| MODULE AREA | 514.31 |
| ARRAY WIDTH | 33.54 |
| ARRAY HEIGHT | 15.33 |
| RAIL LENGTH | 184.00 |
| MODULE LENGTH | 79.50 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 32.00 |
| GROUND TO TOP | 12.62 |
| PROJECTED PANEL HEIGHT | 7.58 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | ELIJAHSEARSHOMEREVA |
| SITE ADDRESS | 48, BIRCH, BLUFF, RD, MONTGOMERY, MA, 01085, USA |
| MODULE WIDTH | 45.50 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 5.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 8693.30 |
| TOTAL WEIGHT | 1590.32 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/bde6fe13-28af-4868-b89d-bf93b29fa009.pdf |
|
| ID | 381.00 |
| 3D Solar link |
