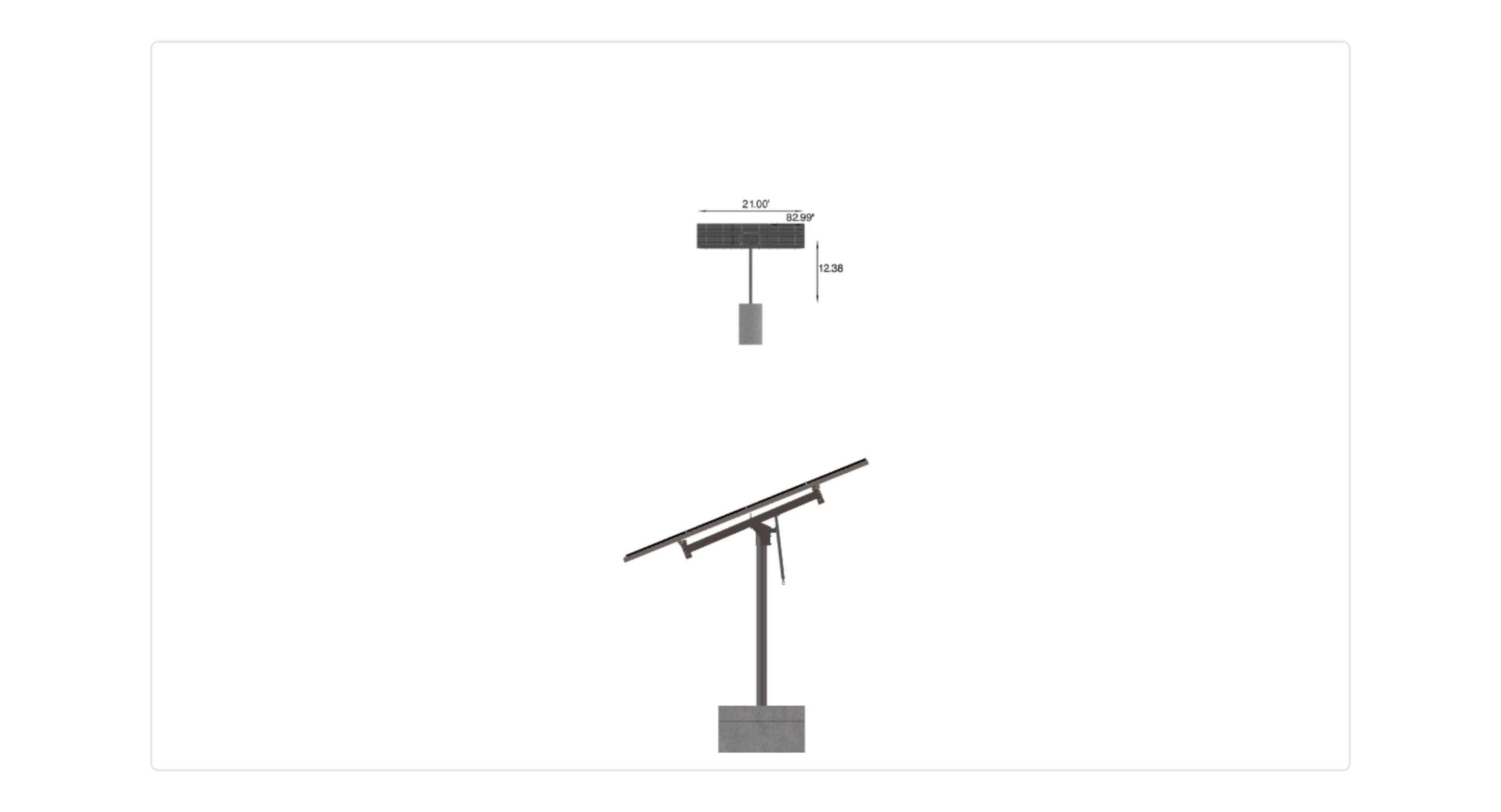

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.99 inches by 41.26 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Elon Elementary-RevA-JB
$4,771.35
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.99 inches by 41.26 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
Weight | 884.33 lbs |
---|---|
Dimensions | 90 × 24 × 24 in |
SKU CODE | 1P-0-8TOP-HD-72-L-4HX3W-2CE5 |
DUTY SIZE | HD |
POLE SIZE | 8IN, PIPE, SCH, 40 |
PRODUCT TYPE | BEAM |
NUMBER OF POLES | 1.00 |
POLE SPACING | 0.00 |
POLE HEIGHT | 12.38 |
WING SPAN | 72.00 |
MAX FOUNDATION DEPTH | 8.00 |
TILT ANGLE | 20.00 |
CANTILEVER | 234.00 |
GROUND CLEARANCE | 10.00 |
NO POLES | 1.00 |
MODULE AREA | 292.29 |
ARRAY WIDTH | 21.00 |
ARRAY HEIGHT | 13.92 |
RAIL LENGTH | 167.04 |
MODULE LENGTH | 82.99 |
PASSED OVERHANG CHECK | TRUE |
MODULE WIDTH GAP | 0.50 |
MODULE LENGTH GAP | 1.00 |
TOTAL FRAME LENGTH | 19.50 |
GROUND TO TOP | 14.73 |
PROJECTED PANEL HEIGHT | 4.70 |
WIND SPEED OVERRIDE | 115.00 |
SNOW LOAD OVERRIDE | 15.00 |
DIRECT SNOW LOAD | FALSE |
ADD ANGLE BRACE | FALSE |
PROJECT ID | ELON, ELEMENTARY-REVA-JB |
SITE ADDRESS | 720, WALKER, RD, ELON, NC, 27244, USA |
MODULE WIDTH | 41.26 |
NUMBER ROWS | 4.00 |
NUMBER COLUMNS | 3.00 |
RISK CATEGORY | II |
EXPOSURE CATEGORY | B |
FRAME DUTY OVERRIDE | HD |
POLE OVERRIDE | 8, 40 |
SOIL TYPE | SAND |
CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
FOUNDATION TYPE | ROUND |
FOUNDATION SIZE | 48.00 |
CHECK RAILS | FALSE |
TOTAL PRICE | 4771.35 |
TOTAL WEIGHT | 884.33 |
TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/3cf66de2-d4d4-48c8-a6d9-bb57d7a837ee.pdf |
|
ID | 4742.00 |
3D Solar link |
